Stage 1 Mercedes-Benz OM605 OM606 - BMW M57N2 HGD JGA 6-speed - 240mm / 9.45"
- PMC Motorsport Stage 1 Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Mercedes-Benz OM605 OM606 - BMW M57N2 ZF GS6-53DZ HGD JGA 6-speed Diesel - 240mm / 9.45" + Sachs XTend 3000 951 952
In a set
PMC Motorsport Stage 1 Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Mercedes-Benz OM605 OM606 - BMW M57N2 ZF GS6-53DZ HGD JGA 6-speed Diesel - 240mm / 9.45" + Sachs XTend 3000 951 952

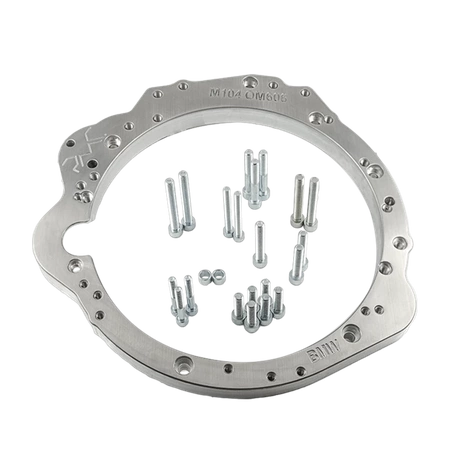

Aluminum adapter enabling to mate (SWAP / conversion) the Mercedes-Benz OM605 OM606 engine, with the manual ZF (ZF Friedrichshafen) gearbox from BMW.
Replace the automatic transmission with a manual transmission from BMW
Why is it worth choosing gearboxes from BMW?
- Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
- Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)
Want to SWAP Mercedes-Benz OM605 OM606 on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.
Why choose PMC Motorsport parts and adapters?
- Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
- Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
- Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
- Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
- Made in EU. All our production and design departments are located in the European Union
- Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com
Our kits are often used in Mercedes-Benz OM605 OM606 in other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34 or Mazda RX7 RX- 7 / RX8 RX- 8
Engine list: |
|
Manual BMW gearbox list (Diesel) : |
|
Manual
- Use the flywheel / ring gear from the automatic version
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
- Use 240mm clutch disc with spline dedicate to your gearbox.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Brand
Symbol
S1-OM-HGD-952
Producer code
5903707414604
Mercedes-Benz engine list
Mercedes-Benz OM606More
Mercedes-Benz OM606
- Mercedes-Benz W124 OM 606.910 E 300 D
- Mercedes-Benz OM W210 606.912 ERE E 300 D
- Mercedes-Benz OM W140 606.961 ERE S 300 Turbodiesel
- Mercedes-Benz OM W210 606.962 ERE E 300 Turbodiesel
- Mercedes-Benz OM W463 606.964 ERE G 300 Turbodiesel
Mercedes-Benz OM605More
Mercedes-Benz OM605
- Mercedes-Benz W202 OM 605.910 ERE C 250 D
- Mercedes-Benz OM W124 605.911 E 250 D
- Mercedes-Benz OM W210 605.912 ERE E 250 D
- Mercedes-Benz OM W202 605.960 ERE C 250 Turbodiesel
- Mercedes-Benz OM W210 605.962 ERE E 250 Turbodiesel
Manual gearbox (Diesel)
BMW M57N M57N2 ZF GS6-53DZ code HGD 6-speedMore
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD 6-speed
- BMW Engine : M57N 306D2-EU4 / 306D2-EU3 / M57N2 306D3
- BMW OE : 23 00 7 526 820 / 23 00 7526820 / 23007526820
- Bell housing : 1067 401 060 / 1067401060
- Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
ZF GS6-53DZ Gear Ratios | ||||||
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | R |
5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
BMW 5-Series 5er E60 E61
- BMW E60 525d M57N M57N2
- BMW E60 530d M57N M57N2
- BMW E61 525d M57N M57N2
- BMW E61 530d M57N M57N2
BMW M57N M57N2 ZF GS6-53DZ code JGA 6-speedMore
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA 6-speed
- BMW Engine: M57N 306D2-EU4 / 306D2-EU3 / M57N2 306D3
- BMW OE: 23 00 7 571 426 / 23 00 7571426 / 23007571426
- Bell housing: 1067 401 060 / 1067401060
- Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
ZF GS6-53DZ Gear Ratios | ||||||
---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | R |
5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
BMW 5-Series 5er E60 E61 LCI
- BMW E60 525d M57N M57N2
- BMW E60 530d M57N M57N2
- BMW E61 525d M57N M57N2
- BMW E61 530d M57N M57N2
Clutch Set
Set with Clutch
Yes
Max torque
800Nm / 589,9 lb/ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included

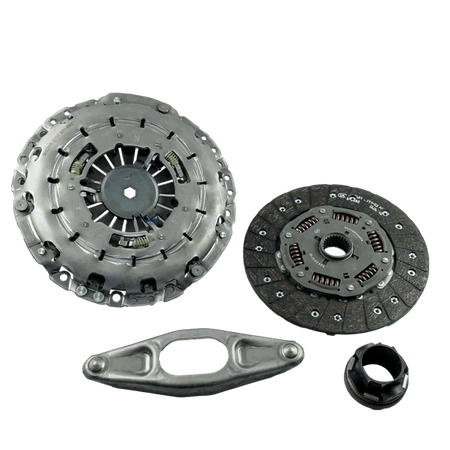

Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting
No
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Mercedes-Benz (OE)
Flexplate / ring gear / Drive plate required
Mercedes-Benz Automatic OM605 OM606 OEM A6060300112
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
30mm / 1.18"
Replaceable friction surface
Yes

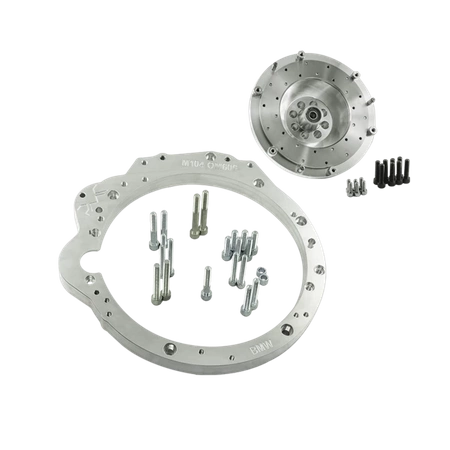

Set includes

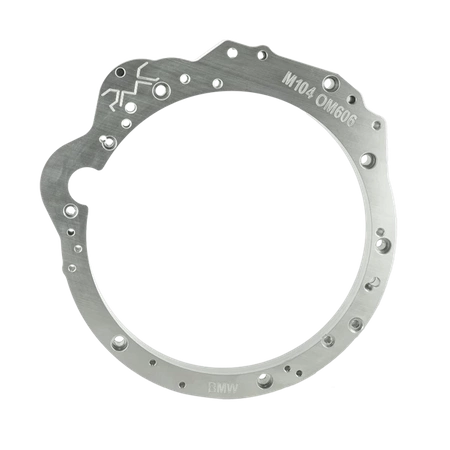

Aluminium gearbox adapter
Gearbox adapter bolts

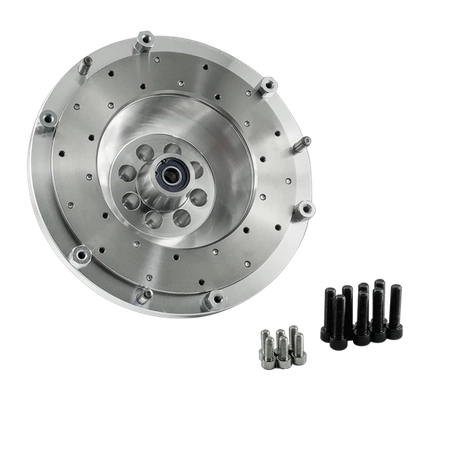

Custom Flywheel
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Product sales codes included
K0HGD-240-M113 (1008)
F0BMW-M104 (3640)
EAN
5903707414604
Product code
S1-OM-HGD-952
