Rod End / Uniball M12x1.5 left (male) (RC)
Rod End / Uniball M12x1.5 left (male) (RC)
Rod End / Uniball M12x1.5 left (male) (RC)
Rod End / Uniball M12x1.5 left (male) (RC)
Rod End / Uniball M12x1.5 left (male) (RC)

Rod End / Uniball M12x1.5 left (male) (RC)

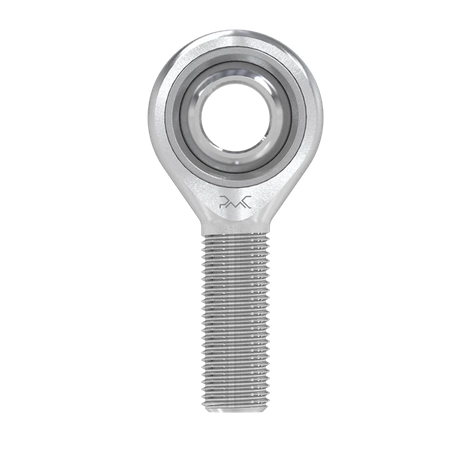

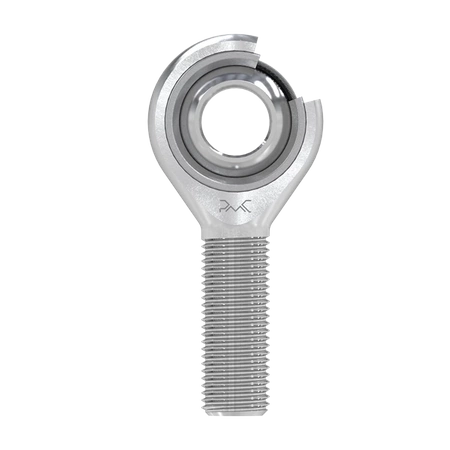

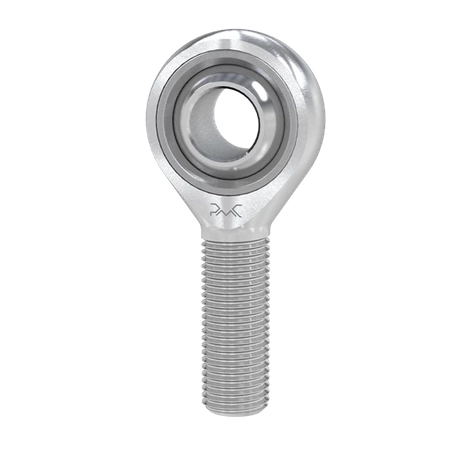

  • PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M12x1.5
Type of thread
16,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
Find out in which store you can check the product and buy it right away
Rod End / Uniball M12x1.5 left (male) (RC)
Rod End / Uniball M12x1.5 left (male) (RC)
Type of thread:Male left
Safe shopping

Tie rod end / uniball tie rod end

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M12x1.5

A rod end is a specialized mechanical component that allows force to be transmitted in various directions while also permitting a certain degree of rotational and angular movement. It is a key component in systems that require precise and smooth load transfer, such as steering, suspension, and joint systems. Tie rod ends typically consist of two main parts: the housing (sleeve) and a spherical joint that enables free movement in multiple planes.


Maintenance-Free Uniball / Corrosion-Protected / No Rubber Boots Required

Lubricant-Free Operation: Reduces maintenance needs and associated costs.

High Load Capacity: Ideal for transmitting large directional loads.

Corrosion Resistance: Suitable for use in harsh weather conditions.

Long Lifespan: Durability even in challenging operational conditions.

PTFE

Polytetrafluoroethylene (PTFE) is a polymer consisting of carbon and fluorine atoms. Due to its unique chemical structure, PTFE has exceptional physical and chemical properties.

Low Friction: PTFE has one of the lowest friction coefficients of all solid materials, making it ideal for applications where smooth operation without lubrication is required.
High-Temperature Resistance: PTFE can operate in a wide temperature range from -50°C to +150°C.
Chemical Resistance: PTFE is resistant to almost all chemicals, making it ideal for use in aggressive environments.
Electrical Insulation: PTFE is an excellent electrical insulator, which makes it suitable for applications requiring protection against voltage surges.

Applications

PTFE fabric bearings are widely used in various industries:

Hydraulics and Pneumatics: Connections for hydraulic and pneumatic cylinders.

Automotive Industry: Suspension systems, steering systems.

Agricultural Machinery: Agricultural machine joints.

Construction Machinery: Joints in construction machines.

Tie Rod End / Uniball Tie Rod End Male Thread

Housing: Steel for heat-treated material 25CrMo4 - 4130 - 1.7218, forged, galvanized coating (hard chrome)

Bearing Bushing: Made by injection molding, Nylon with PTFE

Ball: Bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened, galvanized coating (hard chrome)

Tie Rod End / Uniball Tie Rod End Male Thread

Symbol
RC-M12x1.5L (M)
Producer code
5903707416967
Type
PMC Bearing RC Sport - Series
Thread
M12x1.5
Type of thread
Male left
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
54 / 2.13"
GM - Thread length [mm /inch]
33 / 1.30"
Kąt wychylenia
17°
Maximum static load [kN / lbs]
33,6 / 7553.58
Maximum dynamic load [kN / lbs]
30,7 / 6901.63
Weight
85g / 0,19lbs
