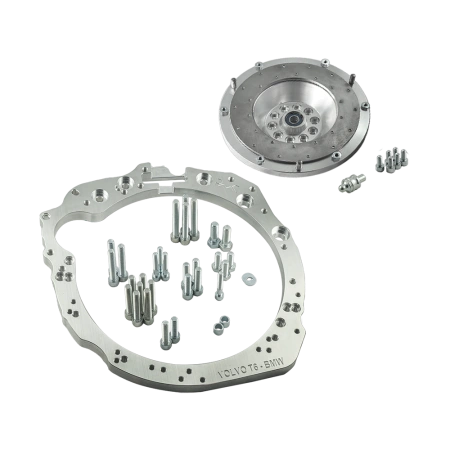

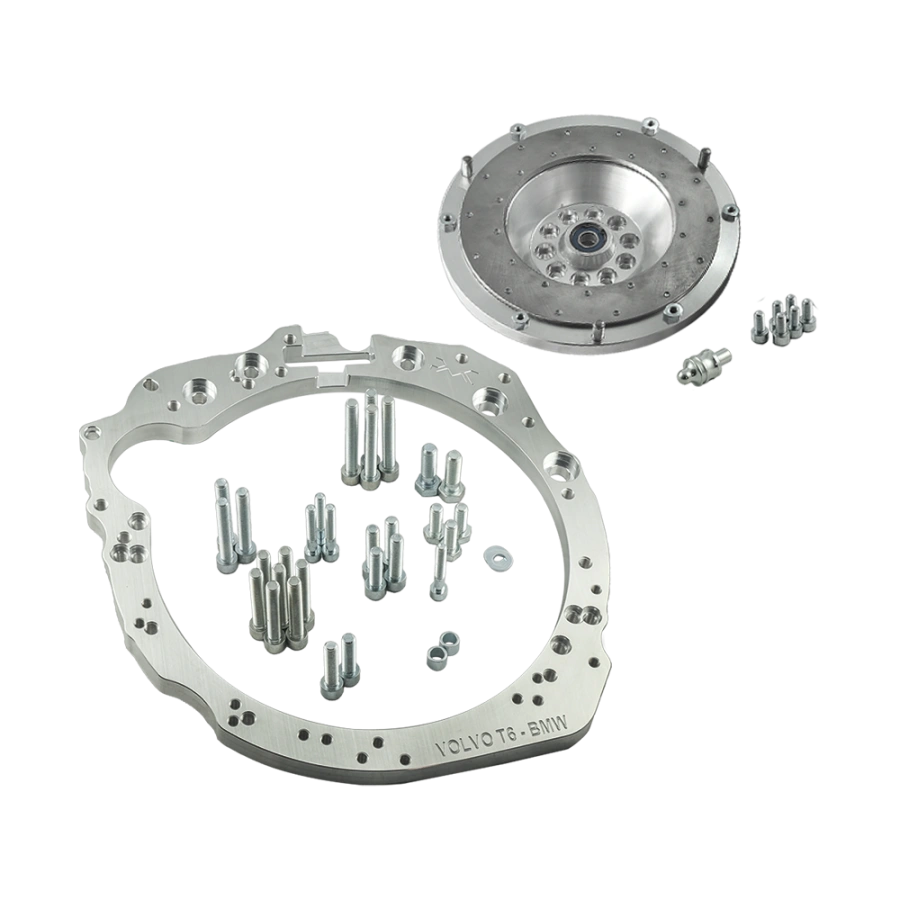

Adapter Volvo White T5 T6 - 5-speed manual BMW M57 ZF GS5-39DZ - 240mm / 9.45"
- PMC Motorsport adapter / conversion kit / clutch kit Volvo Modular „White block” T5 T6 – BMW M57 5-speed manual ZF GS5-39DZ E39 525d 530d / E46 330d – 240 mm / 9.45" – 4.8 kg / 10.6 lbs
In a set
PMC Motorsport adapter / conversion kit / clutch kit Volvo Modular „White block” T5 T6 – BMW M57 5-speed manual ZF GS5-39DZ E39 525d 530d / E46 330d – 240 mm / 9.45" – 4.8 kg / 10.6 lbs
Adapter plate allowing connection (swap / conversion) of the Volvo Modular „White block” T5 / T6 engine (5- and 6-cylinder in-line 2.0–2.9, naturally aspirated and turbo) with the ZF GS5-39DZ 5-speed manual transmission used in BMW with the M57 diesel engine (E39 525d / 530d, E46 330d). The heavy-duty GS5-39DZ gearbox (1000 Nm+) is an ideal base for drift projects. An ideal solution for amateur and professional motorsport.
Planning a Volvo White block T5 / T6 engine swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and gain new performance possibilities.
PMC Motorsport adapters not only enable automatic-to-manual transmission conversions in vehicles with a Volvo White block engine, but also support performing a Volvo T5 / T6 swap in BMWs and other rear-wheel-drive vehicles.
The aluminum gearbox adapter plate is designed to simplify transmission installation as much as possible, avoiding radical modifications such as cutting off the entire bellhousing – only preparing a starter motor opening is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction surface, checked and balanced before shipment. Flywheel designed for 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE). Flywheel weight: 4.8 kg (10.6 lbs), adapter thickness: 20 mm (0.78").
PMC Motorsport gearbox adapters are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machinery guarantees ideal engine-to-gearbox alignment, which is critical for drivetrain durability.
All of our manufacturing and R&D design department are located in Poland. Over 90% of components are produced in-house by our company.
Selection assistance and after-sales support – PMC Motorsport Support
The PMC Motorsport team will help you select the right kit and provide technical assistance if you have doubts during installation. You can contact us via the contact form.
Individual component purchase
Every element of the kit can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in daily drivers as well as professional motorsport projects.
From the beginning, we focus on the quality of our manufactured parts. Every component is inspected after each production stage. Every subassembly we produce is engraved with a production serial number.
Quality confirmed by PN-EN ISO 9001:2015 certification.
We ship our products virtually everywhere in the world. For European Union countries (excluding islands) and the United Kingdom, shipping costs are calculated automatically. For countries outside the list, after placing an order, our team will calculate shipping costs and add them to the order. You will receive an email with the total order cost.
NOTE: The provided shipping quote together with the product price does not include additional import duties / taxes that may apply depending on the destination country.
VAT 0%
0% VAT for Customers with an active EU VAT number (option for B2B Customers outside Poland) and in the case of export outside the EU.
After successful verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: | Volvo Modular „White block” T5 / T6 Volvo R5 2.0 – B5202, B5204 Volvo R5 2.3 – B5234 Volvo R5 2.4 – B5244 Volvo R5 2.5 – B5252, B5254 Volvo R6 2.4 / 2.5 – B6244, B6254 Volvo R6 2.8 / 2.9 / 3.0 – B6284, B6294, B6304 |
| Compatible gearboxes: |
ZF S5-39 GS5-39DZ 5-speed ZF GS5-39DZ THBA – BMW M57 E39 530d ZF GS5-39DZ THBG – BMW M57 E39 530d ZF GS5-39DZ THBC – BMW M57 E39 525d 530d, E46 330d ZF GS5-39DZ THBK – BMW M57 E39 525d, E46 330d ZF GS5-39DZ THBM – BMW M57 E39 525d, E46 330d |
Additional Information
PMC Motorsport parts are intended for motorsport use on race tracks.
Installation should be carried out by professionals with expertise in engine swaps and car modifications – in workshop conditions and using appropriate tools.
The adapter installation manual contains only basic essential information required to physically join the engine and gearbox outside the vehicle body.
Depending on the specific car model, additional modifications may be required, such as custom mounts, bushings, engine firewall adjustments, transmission tunnel modification, driveshaft length modification, etc.
We manufacture our adapters from fully recyclable materials.
Installation Manual
To mount the flywheel, an automatic transmission flexplate (starter ring gear) from Volvo OE 1275370 is required (not included). Mounting the flywheel requires Volvo OE 9454743 bolts (not included). To install the adapter, a Volvo OE 1 005 821 977 starter motor must be used (not included).
Frequently Asked Questions
Which engines does this adapter fit?
Volvo Modular „White block” T5 / T6 engines: 5-cylinder B5202 / B5204, B5234, B5244, B5252 / B5254 and 6-cylinder B6244, B6254, B6284, B6294 / B6304 – e.g. from Volvo 850, S70, V70, C70, S60, S80, S90 / V90, 960 and XC90.
Which gearboxes does this adapter fit?
5-speed manual gearbox ZF GS5-39DZ from BMW with M57 diesel engine in versions THBA, THBC, THBG, THBK, and THBM (E39 525d / 530d, E46 330d). The gearbox has a 28x35-10N spline hub.
Does the bellhousing need to be cut?
No. The adapter is designed to eliminate bellhousing cutting – you only need to prepare a cutout for the starter motor.
Which additional parts do I need to complete installation?
Volvo automatic flexplate (starter ring gear) – OE 1275370 – and Volvo OE 9454743 bolts. Also required: 240 mm clutch pressure plate and clutch disc, release bearing, clutch fork, and slave cylinder dedicated to your specific gearbox, as well as a Volvo OE 1 005 821 977 starter motor. These parts are not included in the kit.
Which clutch pressure plate fits the PMC flywheel?
Pressure plate with a diameter of 240 mm (9.45") BMW OE style – from BMW M57 (including stock GS5-39DZ pressure plate) / M57N / M57N2 / N54 / B58 / E46 M3, Sachs XTend 3000 951 877 (BMW M57) or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also frequently used – custom pressure plates must match BMW OE flywheel pattern (M57 / M57N / M57N2 / N54 / B58). For the GS5-39DZ transmission, a 240 mm clutch disc with a 28x35-10N spline, a dedicated release system, and a slave cylinder must be used.
Which starter motor should be used?
Volvo OE 1 005 821 977 starter motor. The starter motor is not included in the kit.
Can I use this adapter with a 6-speed GS6-53DZ / GS6-53BZ gearbox?
Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW gearboxes (applies to adapters manufactured after 2022). When switching gearboxes, you only need to change the flywheel and clutch disc.
Is this adapter compatible with the ZF 8HP automatic transmission?
Yes. The PMC Motorsport adapter plate is universal and fits most BMW gearboxes (applies to adapters manufactured after 2022). For conversion to a ZF 8HP automatic transmission, replace the standard flywheel with a PMC Motorsport 8HP torque converter adapter.
What is included in the kit?
Aluminum gearbox adapter plate with mounting bolts, PMC Motorsport custom flywheel with replaceable friction surface, crankshaft bolts, pressure plate bolts, and ball pin / clutch fork pivot pin – replacement for BMW OE 21 51 1 223 328. Clutch, release bearing, clutch fork, and slave cylinder are not included in the kit – they must be selected for your specific gearbox.
Can I buy only the adapter or only the flywheel?
Yes. Every component of the kit is available separately.
Does the price include customs duty for shipments outside the EU?
No. Product prices and shipping quotes do not include customs duties or import fees that may apply in the destination country.
Can I purchase with 0% VAT?
Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified via VIES) or if your order is being exported outside the EU.
Is the included manual sufficient for installation?
The manual describes joining the engine and transmission outside the vehicle. Depending on the car, additional custom work may be required: engine mounts, bushings, firewall modification, tunnel clearance, driveshaft length. We recommend professional installation.
Please note that a lightweight rigid flywheel provides uncompromising throttle response at the expense of factory dampening elements. This results in direct drivetrain operation, which may cause natural increase in audible gear noise from the gearbox. This is an expected and desirable characteristic in sports vehicles resulting from the rigid connection between engine and drivetrain.
Volvo Whiteblock "White" straight-five 2.0
Volvo B5202S B5202 S
- 1997–1998 Volvo S70
- 1997–1999 Volvo V70
Volvo B5202FS B5202 FS
- 1995–1997 Volvo 850 / 850 2.0 / 850 2.0 10V
- 1997–1999 Volvo S70 / S70 2.0
- 1997–1999 Volvo V70 / V70 2.0
Volvo B5204S B5204 S
- 1992–1994 Volvo 850
Volvo B5204FS B5204 FS
- 1992–1996 Volvo 850
Volvo B5204FT B5204 FT Turbocharged
- 1994–1997 Volvo 850 / 850 2.0T
Volvo B5204T B5204 T Turbocharged
- 1994–1997 Volvo 850 /850 T-5 (2.0)
Volvo B5204T2 B5204 T2 Turbocharged
- 1997–1998 Volvo S70 / S70 2.0T
- 1997–1998 Volvo V70 / V70 2.0T
Volvo B5204T3 B5204 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1997–2000 Volvo V70 / V70 T5
- 1998–2002 Volvo C70 / C70 T5
- 1999–2000 Volvo S80 / S80 T5
VVolvo B5204T4 B5204 T4 Turbocharged
- 1999–2000 Volvo S80 / S80 2.0T
- 2000–2005 Volvo C70 / C70 2.0T (convertible)
- 2000–2002 Volvo C70 / C70 2.0T (coupé)
- 1999 Volvo V70 / V70 2.0T
Volvo B5204T5 B5204 T5 Turbocharged
- 2000–2006 Volvo S80 / S80 2.0T
- 2001–2009 Volvo S60 / S60 2.0T
- 2000–2007 Volvo V70 II /V70 2.0T
VolvoB5204T8 B5204 T8 Turbocharged
- 2012–2015 Volvo V40 II / V40 T4
- 2013–2014 Volvo S60 II / S60 T4
- 2013 Volvo V60 / V60 T4
Volvo B5204T9 B5204 T9 Turbocharged
- 2012–2015 Volvo V40 II /V40 (Thailand)
- 2013–2014 Volvo V40 II / V40 T5 R Design / V40 Cross Country T5 AWD (Japan)
- 2013–2014 Volvo S60 II / S60 T5
- 2013–2014 Volvo V60 / V60 T5
- 2013–2015 Volvo S80 II / S80L T5
Volvo Modular Whiteblock straight-five 2.3
Volvo B5234FS B5234 FS
- 1994–1996 Volvo 850 Volvo S70
Volvo B5234T B5234 T Turbocharged
- 1993–1996 Volvo 850 / 850 T-5 / 850 Turbo
Volvo B5234T2 B5234 T2 Turbocharged
- 1997 Volvo 850
- 1997–1998 Volvo S70
- 1997–1998 Volvo V70
Volvo B5234T3 B5234 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1998 Volvo S70 / S70 R
- 1997–2000 Volvo V70 / V70 T5
- 1998 Volvo V70 V70 R
- 1998–2002 Volvo C70 / C70 T5 (convertible)
- 1997–2002 Volvo C70 / C70 T5 (coupé)
- 2000–2004 Volvo V70 II / V70 T5
- 2001–2004 Volvo S60 / S60 T5
VolvoB5234T4 B5234 T4 Turbocharged
- 1996–1997 Volvo 850 / 850 R
- 1998 Volvo S70 / S70 R
- 1998 Volvo V70 / V70 R / V70 R AWD
Volvo B5234 T5 B5234 T5 B5234FT5 B5234 FT5 Turbocharged
- 1995 Volvo 850 / 850 T-5R (U.S.)
- 1995-1996 Volvo 850 / 850 T-5R
- 1996–1997 Volvo 850 / 850 R
Volvo B5234T6 B5234 T6 Turbocharged
- 1998 Volvo V70 /V70 R AWD
Volvo B5234T7 B5234 T7 Turbocharged
- 1998–2000 Volvo S70
- 1998–2000 Volvo V70
- 2000–2004 Volvo S80 / S80 2.3T
- 2001–2004 Volvo S60 / S60 2.3T
Volvo B5234T8 B5234 T8 Turbocharged
- 1999 Volvo V70 / V70 R AWD
Volvo B5234T9 B5234 T9 Turbocharged
- 2003–2005 Volvo C70 / C70 T5 (convertible)
Volvo B5244S B5244 S N.A
- 2000 Volvo S70 2.4
- 2000 Volvo V70 2.4
- 2001–2009 Volvo S60 2.4
- 2001–2007 Volvo V70 II / V70 2.4
- 1999–2006 Volvo S80 2.4
Volvo B5244S2 B5244 S2 N.A
- 1999–2006 Volvo S80
- 2000 Volvo S70 2.4
- 2000-2007 Volvo V70
- 2001–2009 Volvo S60
Volvo B5244S4 B5244 S4 N.A
- 2004–2010 Volvo S40 II / S40 2.4i
- 2004–2010 Volvo V50 2.4i
- 2007–2010 Volvo C30 2.4i
- 2006–2010 Volvo C70 II / C70 2.4i
VolvoB5244S5 B5244 S5 N.A
- 2004–2010 Volvo S40 II /S40 2.4
- 2004–2010 Volvo V50 2.4
- 2006–2010 Volvo C70 II / C70 2.4
Volvo B5244S6 B5244 S6
VolvoB5244S7 B5244 S7
VolvoB5244T B5244 T Turbocharged
- 1999-2000 Volvo S70 2.4T / S70 2.4T AWD
- 1999-2000 Volvo V70 2.4T / V70 2.4T AWD
- 1999-2000 Volvo V70 XC 2.4T AWD
- 2000–2002 Volvo C70 2.4T (convertible)
- 2000–2002 Volvo C70 2.4T (coupé)
Volvo B5244T2 B5244 T2 Turbocharged
- 2000 Volvo V70 R AWD
Volvo B5244T3 B5244 T3 Turbocharged
- 2001–2003 Volvo S80 2.4T
- 2001–2003 Volvo S60 2.4T
- 2000–2003 Volvo V70 II / V70 2.4T
- 2001–2002 Volvo V70 XC II / V70 XC 2.4T AWD
Volvo B5244T4 B5244 T4 Turbocharged
- 2005–2006 Volvo S60 2.4T
- 2005 Volvo V70 II / V70 2.4T
- 2005–2006 Volvo XC70 2.4T AWD
Volvo B5244T5 B5244 T5 Turbocharged
- 2005–2009 Volvo S60 / S60 T5
- 2005–2007 Volvo V70 I / V70 T5
Volvo B5244T7 B5244 T7 Turbocharged
- 2003–2005 Volvo C70 C70 2.4T (convertible)
Volvo B6244FS B6244 FS N.A
- 1995–1997 Volvo 960 2.4 24V
- 1997–1998 Volvo S90 2.4 24V
- 1997–1998 Volvo V90 2.4 24V
Volvo B5252S B5252 S N.A
- 1996 Volvo 850 / 850 2.4_10V or 850 2.5i
- 1997–1998 Volvo S70
VolvoB5252FS B5252 FS
- 1993–1997 Volvo 850
- 1997–1999 Volvo S70
- 1997–1999 Volvo V70
Volvo B5254F B5254 F
- 1991–1994 Volvo 850
Volvo B5254FS B5254 FS
- 1995 Volvo 850
- 1997-1999 Volvo S70
- 1996–1998 Renault Safrane / Safrane 2.5 or Safrane 2.4 20V
Volvo B5254S B5254 S
- 1995–1997 Volvo 850 / 850 2.5-20V 850 2.5 20V / 850 GLT
- 1997–1999 Volvo S70 / S70 2.5 20V
- 1999 Volvo V70 / V70 2.5 20V
- 1999 Volvo C70 / C70 2.5 20V (coupé)
Volvo B5254T B5254 T
- 1997 Volvo 850 850 AWD or 850 2.5T
- 1997–1999 Volvo S70 / S70 2.5T or S70 AWD
- 1997–1999 Volvo V70 / V70 2.5T, V70 AWD / V70 2.5T AWD
- 1998–1999 Volvo V70 XC / V70 XC AWD / V70 XC 2.5T AWD / V70 GLT
- 1998–1999 Volvo C70 / C70 2.5T (convertible)
- 1998–1999 Volvo C70 / C70 2.5T (coupé)
Volvo B5254T2 B5254 T2
- 2003–2009 Volvo S60 / S60 2.5T or S60 2.5T AWD
- 2003–2008 Volvo V70 II / V70 2.5T or V70 2.5T AWD
- 2003–2007 Volvo XC70 / XC70 2.5T AWD
- 2003–2006 Volvo S80 / S80 2.5T
- 2003–2012 Volvo XC90 / XC90 2.5T AWD
Volvo B5254T3 B5254 T3
- 2005–2008 Volvo S40 II / S40 T5
- 2005–2008 Volvo V50 / V50 T5
- 2007 Volvo C30 / C30 T5
- 2006–2007 Volvo C70 / C70 T5
- 2005–2011 Ford Focus ST
- 2007-2010 Ford Mondeo Mk4 / XR5 Turbo for the Australian market.
- 2007-2010 Ford S-Max
- 2009-2010 Ford Focus RS
- 2011 Ford Focus RS 500
- 2008–2012 Ford Kuga 2.5T2008-2010 Euro 4, 2011-2012 Euro 5
- 2004–2007 Volvo V70 II / V70 R AWD
Volvo B5254T5 B5254 T5
- 2011–2012 Volvo S60 II / S60 T5
Volvo B5254T6 B5254 T6
- 2007–2009 Volvo S80 II / S80 2.5T
- 2008–2009 Volvo V70 III / V70 2.5T or V70 2.5T AWD
- 2006–2010 Ford S-Max 2.5T
- 2007–2010 Ford Mondeo 2.5T or Mondeo XR5 Turbo in Australia
Volvo B5254T7 B5254 T7
- 2008–2012 Volvo S40 II / S40 T5
- 2008–2012 Volvo V50 / V50 T5
- 2008–2013 Volvo C30 / C30 T5
- 2008–2013 Volvo C70 II / C70 T5
Volvo B5254T8 B5254 T8
- 2009–2011 Volvo S80 II / S80 2.5FT
- 2009 Volvo V70 III / V70 2.5FT'
Volvo B5254T10 B5254 T10
- 2010–2012 Volvo S80 II / S80 2.5T
- 2010–2012 Volvo V70 II / V70 2.5T
Volvo B5254T11B5254 T11
- 2010–2011 Volvo S80 II / S80 2.5FT
- 2010 Volvo V70 III / V70 2.5FT
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC / V40CC T5 AWD
- 2013–2015 Volvo S60 II / S60 T5
- 2013–2015 Volvo V60 / V60 T5
- 2013–2016 Volvo XC60 / XC60 T5 AWD
- 2014–2016 Volvo XC70 II / XC70 T5 or XC70 T5 AWD
Volvo B5254T14 B5254 T14
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC T5
- 2013–2016 Volvo S60 II / S60 T5
- 2013–2016 Volvo V60 T5
- 2016 Volvo XC70 II / XC70 T5 AWD
Volvo B6254FS B6254 FS
- 1995–1997 Volvo 960 2.5 or 960 24V
- 1997–1998 Volvo S90 2.5 or S90 24V
- 1997–1998 Volvo V90 2.5 or V90 24V
Volvo B6284T B6284 T Turbocharged Twin-Turbo
- 1999–2002 Volvo S80 / S80 T6
Volvo B6294S B6294 S N.A
- 2003 Volvo S80 / S80 2.9
Volvo B6294S2 B6294 S2 N.A
- 2003–2006 Volvo S80 / S80 2.9
Volvo B6294T B6294 T Turbocharged
- 2002–2006 Volvo S80 / S80 T6
- 2003–2006 Volvo XC90 / XC90 T6
Volvo B6304S B6304 S N.A
- 1991–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
- 1994–1999 Indigo 3000
- 1999 Volvo S80
Volvo B6304F1 B6304 F1 N.A
- 1995–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
Volvo B6304S2 B6304 S2 N.A
- Volvo 960 later model years / various
Volvo B6304S3 B6304 S3 N.A
- 1999 Volvo S80
Volvo B6304G B6304 G N.A
- 1997–1998 Volvo S90 / S90 3.0 24V
- 1997–1998 Volvo V90 / V90 3.0 24V
- BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBC / BMW OE 23 00 7 501 342 / 23 00 7501342
- BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBK / BMW OE 23 00 7 508 772 / 23 00 7508772
- BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBM / BMW OE 23 00 7 518 077 / 23 00 7518077
- BMW 5 Series E39 530D M57 ZF GS5-39DZ - THBA / BMW OE 23 00 1 434 505 / 23 00 1434505
- BMW 5 Series E39 530D M57 ZF GS5-39DZ - THBG / BMW OE 23 00 7 508 031 / 23 00 7508031
- BMW 5 Series E39 525D 530D M57 ZF GS5-39DZ - THBC / BMW OE 23 00 7 501 342 / 23 00 7501342
- BMW 5 Series E39 525D M57 ZF GS5-39DZ - THBK / BMW OE 23 00 7 508 772 / 23 00 7508772
- BMW 5 Series E39 525D M57 ZF GS5-39DZ - THBM / BMW OE 23 00 7 518 077 / 23 00 7518077
ZF Friedrichshafen S5-39DZ
The ZF Friedrichshafen GS5-39DZ 5-speed manual gearbox (S5-39DZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for drifting. The ZF GS5-39DZ was installed in BMWs with the iron-block M57 engine (E39 530D 525D and E46 530D). Input shaft spline (male type): 28x35-10N
ZF GS5-39DZ Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 5.240 | 2.910 | 1.810 | 1.270 | 1.000 | 4.850 |
