![High Performance Clutch Disc BMW M50 M52 M54 23x29-10N [240mm 9.25"]](/eng_pl_High-Performance-Clutch-Disc-BMW-M50-M52-M54-23x29-10N-240mm-9-25-4730_1.jpg)

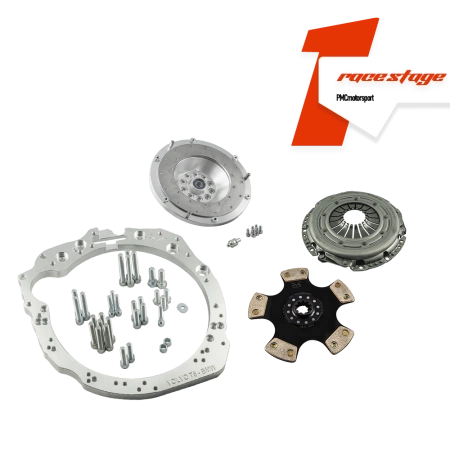

Race Stage 1 Volvo "White" T5 T6 - BMW M50 S50 M52 S52 M54 ZF-5 - 240mm / 9.45"
- PMC Motorsport Race Stage 1 adapter kit Volvo Modular Whiteblock White T5 T6 - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 / S50 S52 Getrag 420G - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 23x29-10N max. 800Nm / 589,9 lb/ft
In a set
![High Performance Clutch Disc BMW M50 M52 M54 23x29-10N [240mm 9.25"]](/eng_ps_High-Performance-Clutch-Disc-BMW-M50-M52-M54-23x29-10N-240mm-9-25-4730_1.jpg)

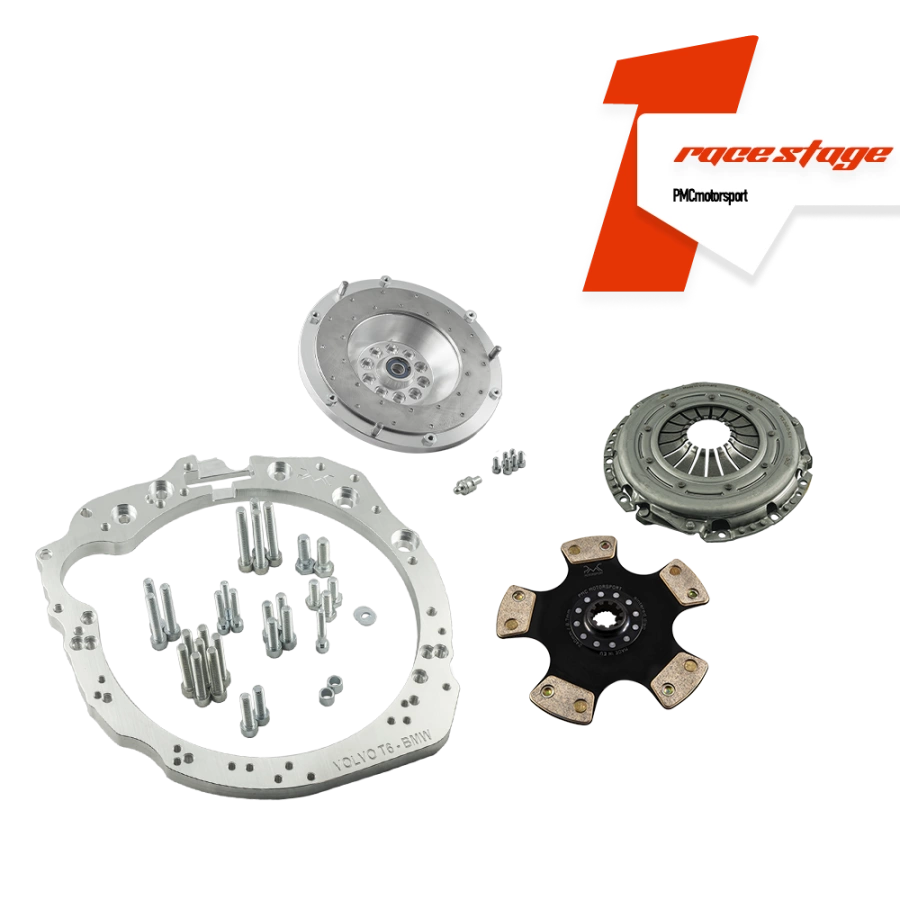

PMC Motorsport Race Stage 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Volvo Modular Whiteblock White T5 T6 - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 23x29-10N max. 800Nm / 589,9 lb/ft
Aluminum clutch kit enabling the connection (swap / conversion) of Volvo Modular Whiteblock White T5 T6 with a manual ZF gearbox (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.
Custom aluminum flywheel 240mm / 9.45" with interchangeable friction disc (FW001.00.02 spare part available on the website) - adapted for BMW M57 or BMW E46 M3 pressure plate (not compatible with M50 / M52 / M54 / S50 / e36 M3). Each PMC Motorsport flywheel is checked and balanced before shipment, the kit includes all necessary mounting bolts.
ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual transmission used in BMW E series with engines M50 M52 M54 ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54)). The weight of the transmission is approximately 39 kg (86 lb), input shaft 23x29-10N.
| Gear ratios | |||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 4.21 | 2.49 | 1.67 | 1.24 | 1.0 | 3.85 |
The clutch adapter is used in Volvo Modular Whiteblock White T5 T6 swaps in both classic BMW E series models such as E30 E36 E46 E39 E60 E61 E90 E92 E81 E82 and new F and G models. The widespread availability and durability of BMW ZF and Getrag gearboxes make them a very common choice for building projects intended for both daily driving and motorsport (Drift / Time Attack). The ZF-5 gearbox bellhousing is also widely used by manufacturers of sports dogleg (dog-leg) gearboxes.
Are you increasing power or looking to switch from manual to automatic transmission? With the PMC Motorsport adapter, it's no problem. The gearbox adapter is designed to easily facilitate transitions, such as upgrading from a 5-speed to a 6-speed or from a manual to an automatic 8HP or DCT DKG transmission. Simply change the flywheel or converter adapter, and the gearbox adapter remains the same.
Why BMW ZF / Getrag Gearboxes?
Availability and price. The availability of millions of produced vehicles worldwide ensures easy access to spare parts. Parts and complete gearboxes are readily available at authorized service centers and in the secondary market.
Durability and reliability. BMW ZF/Getrag gearboxes have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models exceeding 1000Nm) while ensuring great reliability. They are perfect for swaps in high-power projects intended for daily use.
Speed and convenience. Opting for the latest generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG provides ultra-fast gear shift times (0.2 seconds), enhancing both speed and convenience.
Why PMC Motorsport?
Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.
Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.
Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.
Made in EU. Our entire production and design department is located within the European Union.
Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.
Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.
0% VAT - for customers with active European VAT
Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.
Engine list: |
|
Manual BMW gearbox list (Petrol) : |
The flywheel does not fit the BMW M54 6-speed gearbox |
Manual
You should use the flywheel / ring gear from the automatic version of the Volvo OE 1275370
The starter remains OE Volvo OE 1 005 821 977
Use bolts to mounting the Volvo OE 9454743 (not included in the kit)
The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.
Replace the original spherical pin (pivot pin) with the custom one from the kit.
Volvo Whiteblock "White" straight-five 2.0
- Volvo B5202S B5202 S
- 1997–1998 Volvo S70
- 1997–1999 Volvo V70
- Volvo B5202FS B5202 FS
- 1995–1997 Volvo 850 badged as 850 2.0 or 850 2.0_10V
- 1997–1999 Volvo S70 badged as S70 2.0
- 1997–1999 Volvo V70 badged as V70 2.0
- Volvo B5204S B5204 S
- 1992–1994 Volvo 850
- Volvo B5204FS B5204 FS
- 1992–1996 Volvo 850 badged as 850
- Volvo B5204FT B5204 FT Turbocharged
- 1994–1997Volvo 850 badged as850 2.0T
- Volvo B5204T B5204 T Turbocharged
- 1994–1997 Volvo 850 badged as 850 T-5 (2.0)
- Volvo B5204T2 B5204 T2 Turbocharged
- 1997–1998 Volvo S70 badged as S70 2.0T
- 1997–1998 Volvo V70 badged as V70 2.0T
- Volvo B5204T3 B5204 T3 Turbocharged
- 1997–2000 Volvo S70 badged as S70 T5
- 1997–2000 Volvo V70 badged as V70 T5
- 1998–2002 Volvo C70 badged as C70 T5
- 1999–2000 Volvo S80 badged as S80 T5
- Volvo B5204T4 B5204 T4 Turbocharged
- 1999–2000 Volvo S80 badged as S80 2.0T
- 2000–2005 Volvo C70 badged as C70 2.0T (convertible)
- 2000–2002 Volvo C70 badged as C70 2.0T (coupé)
- 1999 Volvo V70 badged as V70 2.0T
- Volvo B5204T5 B5204 T5 Turbocharged
- 2000–2006 Volvo S80 badged as S80 2.0T
- 2001–2009 Volvo S60 badged as S60 2.0T
- 2000–2007 Volvo V70 II badged as V70 2.0T
- Volvo B5204T8 B5204 T8 Turbocharged
- 2012–2015 Volvo V40 II badged as V40 T4
- 2013–2014 Volvo S60 II badged as S60 T4
- 2013 Volvo V60 badged as V60 T4
- Volvo B5204T9 B5204 T9 Turbocharged
- 2012–2015 Volvo V40 II badged as V40 (Thailand)
- 2013–2014 Volvo V40 II badged as V40 T5 R Design or V40 Cross Country T5 AWD (Japan)
- 2013–2014 Volvo S60 II badged as S60 T5
- 2013–2014 Volvo V60 badged as V60 T5
- 2013–2015 Volvo S80 II badged as Volvo S80L T5
Volvo Modular Whiteblock straight-five 2.3
- Volvo B5234FS B5234 FS
- 1994–1996 Volvo 850 Volvo S70
- Volvo B5234T B5234 T Turbocharged
- 1993–1996 Volvo 850 badged as 850 T-5 or 850 Turbo
- Volvo B5234T2 B5234 T2 Turbocharged
- 1997 Volvo 850
- 1997–1998 Volvo S70
- 1997–1998 Volvo V70
- Volvo B5234T3 B5234 T3 Turbocharged
- 1997–2000 Volvo S70 badged as S70 T5
- 1998 Volvo S70 badged as S70 R
- 1997–2000 Volvo V70 badged asV70 T5
- 1998 Volvo V70 badged as V70 R
- 1998–2002 Volvo C70 badged as C70 T5 (convertible)
- 1997–2002 Volvo C70 badged asC70 T5 (coupé)
- 2000–2004 Volvo V70 II badged asV70 T5
- 2001–2004 Volvo S60badged as S60 T5
- Volvo B5234T4 B5234 T4 Turbocharged
- 1996–1997 Volvo 850 badged as 850 R
- 1998 Volvo S70 badged as S70 R
- 1998 Volvo V70 badged as V70 R and V70 R AWD
- Volvo B5234 T5 B5234 T5 B5234FT5 B5234 FT5 Turbocharged
- 1995 Volvo 850 <badged as 850 T-5R(U.S.)
- 1995-1996 Volvo 850 badged as 850 T-5R
- 1996–1997 Volvo 850 badged as 850 R
- Volvo B5234T6 B5234 T6 Turbocharged
- 1998 Volvo V70 badged as V70 R AWD
- Volvo B5234T7 B5234 T7 Turbocharged
- 1998–2000 Volvo S70
- 1998–2000 Volvo V70
- 2000–2004 Volvo S80 badged as S80 2.3T
- 2001–2004 Volvo S60 badged as S60 2.3T
- Volvo B5234T8 B5234 T8 Turbocharged
- 1999 Volvo V70 badged as V70 R AWD
- Volvo B5234T9 B5234 T9 Turbocharged
- 2003–2005 Volvo C70 badged as C70 T5 (convertible)
Volvo Modular Whiteblock straight-five 2.4
- Volvo B5244S B5244 S N.A
- 2000 Volvo S70 badged as S70 2.4
- 2000 Volvo V70 badged as V70 2.4
- 2001–2009 Volvo S60 badged as S60 2.4
- 2001–2007 Volvo V70 II badged as V70 2.4
- 1999–2006 Volvo S80 badged as S80 2.4
- Volvo B5244S2 B5244 S2 N.A
- 1999–2006 Volvo S80
- 2000 Volvo S70 badged as S70 2.4
- 2000-2007 Volvo V70
- 2001–2009 Volvo S60
- Volvo B5244S4 B5244 S4 N.A
- 2004–2010 Volvo S40 II badged as S40 2.4i
- 2004–2010 Volvo V50 badged as V50 2.4i
- 2007–2010 Volvo C30 badged as C30 2.4i
- 2006–2010 Volvo C70 II badged as C70 2.4i
- Volvo B5244S5 B5244 S5 N.A
- 2004–2010 Volvo S40 II badged as S40 2.4
- 2004–2010 Volvo V50 badged as V50 2.4
- 2006–2010 Volvo C70 II badged as C70 2.4
- Volvo B5244S6 B5244 S6
- Volvo B5244S7 B5244 S7
- Volvo B5244T B5244 T Turbocharged
- 1999-2000 Volvo S70 badged as S70 2.4T or S70 2.4T AWD
- 1999-2000 Volvo V70 badged as V70 2.4T or V70 2.4T AWD
- 1999-2000 Volvo V70 XC badged as V70 XC 2.4T AWD
- 2000–2002 Volvo C70 badged as C70 2.4T (convertible)
- 2000–2002 Volvo C70 badged as C70 2.4T (coupé)
- Volvo B5244T2 B5244 T2 Turbocharged
- 2000 Volvo V70 badged as V70 R AWD
- Volvo B5244T3 B5244 T3 Turbocharged
- 2001–2003 Volvo S80 badged as S80 2.4T
- 2001–2003 Volvo S60 badged as S60 2.4T
- 2000–2003 Volvo V70 II badged as V70 2.4T
- 2001–2002 Volvo V70 XC II badged as V70 XC 2.4T AWD
- Volvo B5244T4 B5244 T4 Turbocharged
- 2005–2006 Volvo S60 badged as S60 2.4T
- 2005Volvo V70 II badged asV70 2.4T
- 2005–2006Volvo XC70 badged as XC70 2.4T AWD
- Volvo B5244T5 B5244 T5 Turbocharged
- 2005–2009 Volvo S60 badged as S60 T5
- 2005–2007 Volvo V70 II badged as V70 T5
- Volvo B5244T7 B5244 T7 Turbocharged
- 2003–2005 Volvo C70 C70 2.4T (convertible)
- Volvo B6244FS B6244 FS N.A
- 1995–1997 Volvo 960 badged as 960 2.4 24V
- 1997–1998 Volvo S90 badged as S90 2.4 24V
- 1997–1998 Volvo V90 badged as V90 2.4 24V
Volvo Modular Whiteblock straight-six 2.5
- Volvo B5252S B5252 S N.A
- 1996 Volvo 850 badged as 850 2.4_10V or 850 2.5i
- 1997–1998 Volvo S70
- Volvo B5252FS B5252 FS
- 1993–1997 Volvo 850
- 1997–1999 Volvo S70
- 1997–1999 Volvo V70
- Volvo B5254F B5254 F
- 1991–1994 Volvo 850
- Volvo B5254FS B5254 FS
- 1995 Volvo 850
- 1997-1999 Volvo S70
- 1996–1998 Renault Safrane badged as Safrane 2.5 or Safrane 2.5 or Safrane 2.4 20V
- Volvo B5254S B5254 S
- 1995–1997 Volvo 850 badged as 850 2.5-20V 850 2.5 20V or 850 GLT
- 1997–1999 Volvo S70 badged as S70 2.5 20V
- 1999 Volvo V70 badged as V70 2.5 20V
- 1999 Volvo C70 badged as C70 2.5 20V (coupé)
- Volvo B5254T B5254 T
- 1997 Volvo 850 badged as 850 AWD or 850 2.5T
- 1997–1999 Volvo S70 badged as S70 2.5T or S70 AWD
- 1997–1999 Volvo V70 badged as V70 2.5T, V70 AWD or V70 2.5T AWD
- 1998–1999 Volvo V70 XC badged as V70 XC AWD or V70 XC 2.5T AWD or V70 GLT
- 1998–1999 Volvo C70 badged as C70 2.5T (convertible)
- 1998–1999 Volvo C70 badged as C70 2.5T (coupé)
- Volvo B5254T2 B5254 T2
- 2003–2009 Volvo S60 badged as S60 2.5T or S60 2.5T AWD
- 2003–2008 Volvo V70 II badged as V70 2.5T or V70 2.5T AWD
- 2003–2007 Volvo XC70 badged as XC70 2.5T AWD
- 2003–2006 Volvo S80 badged as S80 2.5T
- 2003–2012 Volvo XC90 badged as XC90 2.5T AWD
- Volvo B5254T3 B5254 T3
- 2005–2008 Volvo S40 II badged as S40 T5
- 2005–2008 Volvo V50 badged as V50 T5
- 2007 Volvo C30 badged as C30 T5
- 2006–2007 Volvo C70 badged as C70 T5
- 2005–2011 Ford Focus badged as Focus ST
- 2007-2010 Ford Mondeo Mk4 badged as XR5 Turbo for the Australian market.
- 2007-2010 Ford S-Max
- 2009-2010 Ford Focus badged as Focus RS
- 2011 Ford Focus badged as Focus RS 500
- 2008–2012 Ford Kuga badged as Kuga 2.5T 2008-2010 Euro 4, 2011-2012 Euro 5
- 2004–2007 Volvo V70 II badged as V70 R AWD
- Volvo B5254T5 B5254 T5
- 2011–2012 Volvo S60 II badged as S60 T5
- Volvo B5254T6 B5254 T6
- 2007–2009 Volvo S80 II badged as S80 2.5T
- 2008–2009 Volvo V70 III badged as V70 2.5T or V70 2.5T AWD
- 2006–2010 Ford S-Max badged as S-Max 2.5T
- 2007–2010 Ford Mondeo badged as Mondeo 2.5T or Mondeo XR5 Turbo in Australia
- Volvo B5254T7 B5254 T7
- 2008–2012 Volvo S40 II badged as S40 T5
- 2008–2012 Volvo V50 badged as V50 T5
- 2008–2013 Volvo C30 badged as C30 T5
- 2008–2013 Volvo C70 II badged as C70 T5
- Volvo B5254T8 B5254 T8
- 2009–2011 Volvo S80 II badged as S80 2.5FT
- 2009 Volvo V70 III badged as V70 2.5FT'
- Volvo B5254T10 B5254 T10
- 2010–2012 Volvo S80 II badged as S80 2.5T
- 2010–2012 Volvo V70 III badged as V70 2.5T
- Volvo B5254T11 B5254 T11
- 2010–2011 Volvo S80 II badged as S80 2.5FT
- 2010 Volvo V70 III badged as V70 2.5FT
- 2013–2015 Volvo V40 II badged as V40 T5
- 2013–2015 Volvo V40CC badged as V40CC T5 AWD
- 2013–2015 Volvo S60 II badged as S60 T5
- 2013–2015 Volvo V60 badged as V60 T5
- 2013–2016 Volvo XC60 badged as XC60 T5 AWD
- 2014–2016 Volvo XC70 II badged as XC70 T5 or XC70 T5 AWD
- Volvo B5254T14 B5254 T14
- 2013–2015 Volvo V40 II badged as V40 T5
- 2013–2015 Volvo V40CC badged as V40CC T5
- 2013–2016 Volvo S60 II badged as S60 T5
- 2013–2016 Volvo V60 badged as V60 T5
- 2016 Volvo XC70 II badged as XC70 T5 AWD
- Volvo B6254FS B6254 FS
- 1995–1997 Volvo 960 badged as 960 2.5 or 960 24V
- 1997–1998 Volvo S90 badged as S90 2.5 or S90 24V
- 1997–1998 Volvo V90 badged as V90 2.5 or V90 24V
Volvo Modular Whiteblock straight-six 2.8
- Volvo B6284T B6284 T Turbocharged Twin-Turbo
- 1999–2002 Volvo S80 badged as S80 T6
Volvo Modular Whiteblock straight-six 2.9
- Volvo B6294S B6294 S N.A
- 2003 Volvo S80 badged as S80 2.9
- Volvo B6294S2 B6294 S2 N.A
- 2003–2006 Volvo S80 badged as S80 2.9
- Volvo B6294T B6294 T Turbocharged
- 2002–2006 Volvo S80 badged as S80 T6
- 2003–2006 Volvo XC90 badged as XC90 T6
- Volvo B6304S B6304 S N.A
- 1991–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
- 1994–1999 Indigo 3000
- 1999 Volvo S80
- Volvo B6304F1 B6304 F1 N.A
- 1995–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
- Volvo B6304S2 B6304 S2 N.A
- Volvo 960 later model years / various
- Volvo B6304S3 B6304 S3 N.A
- 1999 Volvo S80
- Volvo B6304G B6304 G N.A
- 1997–1998 Volvo S90 badged as S90 3.0 24V
- 1997–1998 Volvo V90 badged as V90 3.0 24V
