RACE STAGE 1 Mercedes-Benz OM605 OM606 - BMW M57N2 HGU HGK / N54 6-speed - 240mm / 9.45"

+ Add to compareAdd to shopping list
  • PMC Motorsport RACE STAGE 1 Adapter kit Mercedes-Benz OM605 OM606 - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / BMW N54 135i 335i 535i ZF GS6-53BZ 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft

Size
uniwersalny
1 532,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

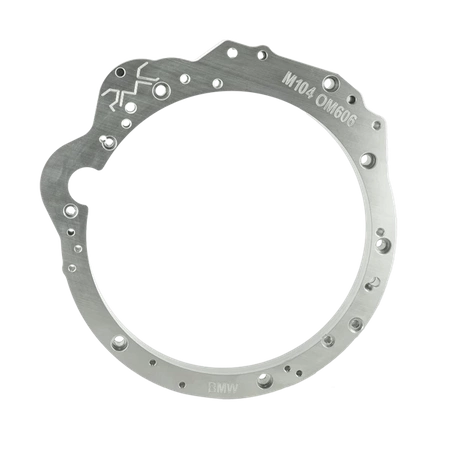

Gearbox Adapter Plate Mercedes-Benz M104 OM605 OM606 - BMW M57N N54 8HP
Gearbox Adapter Plate Mercedes-Benz M104 OM605 OM606 - BMW M57N N54 8HP (1 pcs.)
379,00 EUR / pcs.

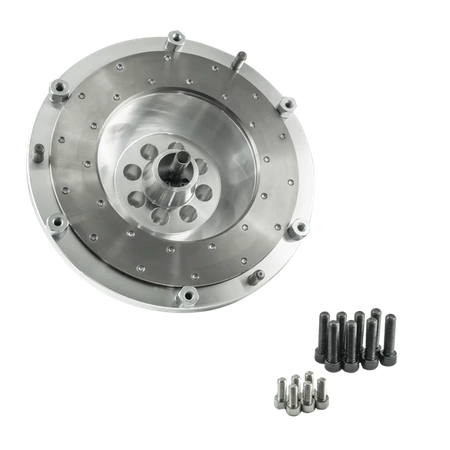

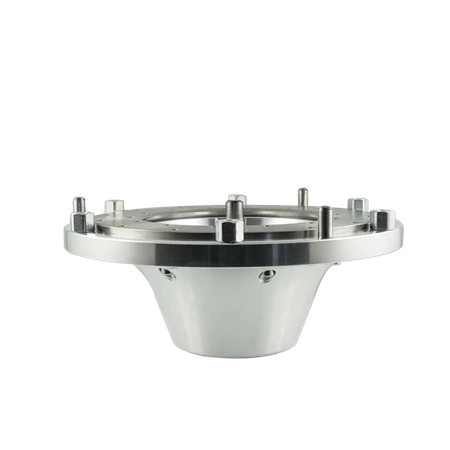

Flywheel Mercedes-Benz M104 OM605 OM606 M112 M113 - BMW M57N GS6-53DZ HGU HGK / N54 GS6-53BZ - 240mm / 9.45"
Flywheel Mercedes-Benz M104 OM605 OM606 M112 M113 - BMW M57N GS6-53DZ HGU HGK / N54 GS6-53BZ - 240mm / 9.45" (1 pcs.)
599,00 EUR / pcs.

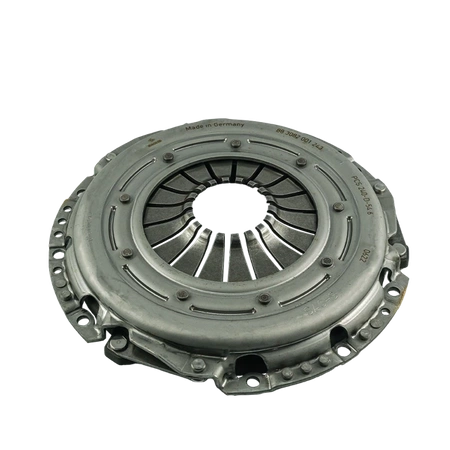

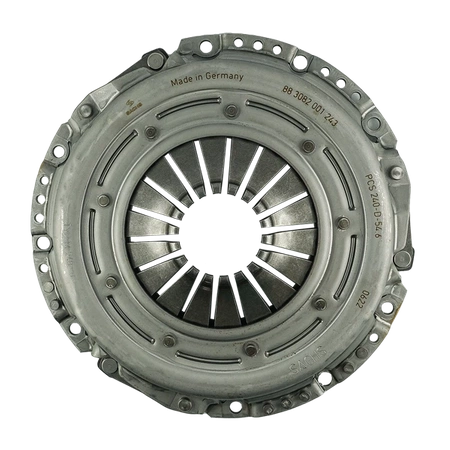

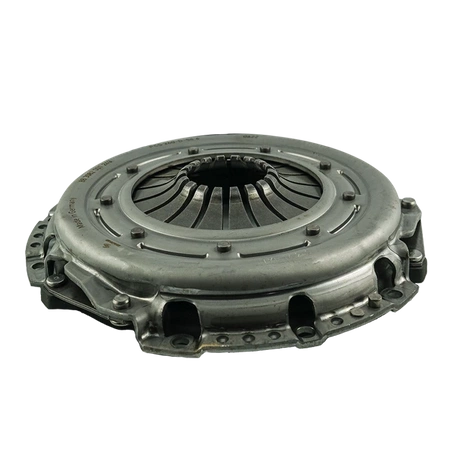

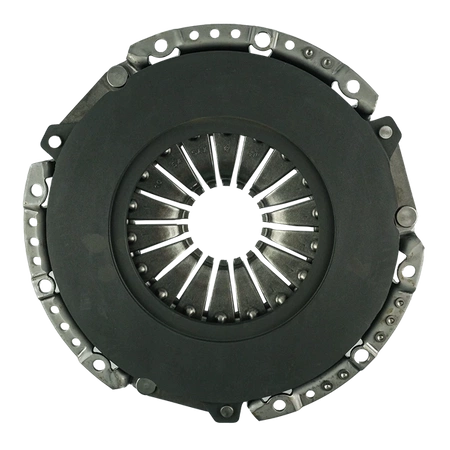

Sachs Performance 88 308 200 1243 / 883082001243
Sachs Performance 88 308 200 1243 / 883082001243 (1 pcs.)
399,00 EUR / pcs.
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"] (1 pcs.)
155,00 EUR / pcs.

PMC Motorsport RACE STAGE 1 Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Mercedes-Benz OM605 OM606 - BMW M57N2 ZF GS6-53DZ HGU HGK 6-speed / BMW N54 135i 335i 535i ZF GS6-53BZ 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft



Aluminum adapter enabling to mate (SWAP / conversion) the Mercedes-Benz OM605 OM606 engine, with the manual ZF (ZF Friedrichshafen) gearbox from BMW.



Replace the automatic transmission with a manual transmission from BMW

Why is it worth choosing gearboxes from BMW?

  • Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts as well as complete gearboxes are easily available at dealerships and on the aftermarket.
  • Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can hold a very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP in high-power cars intended for everyday use. (Daily)



Want to SWAP Mercedes-Benz OM605 OM606 on your BMW (e30 e36 e46 e34 e39 e90 e91 e92 e60 e61 e81 e82 e87)? Our adapter is the solution for you.



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com

Our kits are often used in Mercedes-Benz OM605 OM606 in other cars, e.g. Nissan S13 / S14 / S15 / PS13 / 300ZX / 350Z Z33 / 370Z Z34 or Mazda RX7 RX- 7 / RX8 RX- 8



Engine list:
  • Mercedes-Benz OM605
    • OM 605.910 ERE Mercedes-Benz W202 C 250 D
    • OM 605.911 Mercedes-Benz W124 E 250 D
    • OM 605.912 ERE Mercedes-Benz W210 E 250 D
    • OM 605.960 ERE Mercedes-Benz W202 C 250 Turbodiesel
    • OM 605.962 ERE Mercedes-Benz W210 E 250 Turbodiesel
  • Mercedes-Benz OM606
    • OM 606.910 Mercedes-Benz W124 E 300 D
    • OM 606.912 ERE Mercedes-Benz W210 E 300 D
    • OM 606.961 ERE Mercedes-Benz W140 S 300 Turbodiesel
    • OM 606.962 ERE Mercedes-Benz W210 E 300 Turbodiesel
    • OM 606.964 ERE Mercedes-Benz W463 G 300 Turbodiesel

Manual BMW gearbox list (Petrol) :
  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ HGX (THGX)
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGD (TJGD)
    • BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGF (TJGF)
    • BMW ZF (ZF Friedrichshafen) N54 E8x 135i Z4 35i S6-53 GS6-53BZ JGK (TJGK)

Manual BMW gearbox list (Diesel) :
  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) M57N2 E9x 330D S6-53 GS6-53DZ HGU (THGU)
    • BMW ZF (ZF Friedrichshafen) M57N2 E9x 330D S6-53 GS6-53DZ HGK (THGK)



Manual

  • Use the flywheel / ring gear from the automatic version
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Use 240mm clutch disc with spline dedicate to your gearbox.







 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Brand
PMC MOTORSPORT
Symbol
RS1-OM-HGU-SP
Producer code
5903707415489
Mercedes-Benz engine list
Mercedes-Benz OM605More

Mercedes-Benz OM605

  • Mercedes-Benz W202 OM 605.910 ERE C 250 D
  • Mercedes-Benz OM W124 605.911 E 250 D
  • Mercedes-Benz OM W210 605.912 ERE E 250 D
  • Mercedes-Benz OM W202 605.960 ERE C 250 Turbodiesel
  • Mercedes-Benz OM W210 605.962 ERE E 250 Turbodiesel
Mercedes-Benz OM606More

Mercedes-Benz OM606

  • Mercedes-Benz W124 OM 606.910 E 300 D
  • Mercedes-Benz OM W210 606.912 ERE E 300 D
  • Mercedes-Benz OM W140 606.961 ERE S 300 Turbodiesel
  • Mercedes-Benz OM W210 606.962 ERE E 300 Turbodiesel
  • Mercedes-Benz OM W463 606.964 ERE G 300 Turbodiesel
Manual gearbox (Diesel)
BMW M57N2 ZF GS6-53DZ code HGU 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU 6-speed

  • BMW Engine: M57N2 306D3
  • BMW OE : 23 00 7 571 420 / 23 00 7571420 / 23007571420
  • Bell housing: 1067 401 061 / 1067401061
  • Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 / 23007565213

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E90 E91 E92 E93

  • E90 325D M57N2
  • E90 330D M57N2
  • E90N 325D M57N2
  • E91 325D M57N2
  • E91 330D M57N2
  • E91N 325D M57N2
  • E92 325D M57N2
  • E92 330D M57N2
  • E93 325D M57N2
  • E93 330D M57N2
BMW M57N2 ZF GS6-53DZ code HGK 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK 6-speed

  • BMW Engine: M57N2 306D3
  • BMW OE : 23 00 7 560 725 / 23 00 7560725 / 23007560725
  • Bell housing: 1067 401 061 / 1067401061
  • Sticker number: 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E90 E91 E92 E93

  • E90 325D M57N2
  • E90 330D M57N2
  • E90N 325D M57N2
  • E91 325D M57N2
  • E91 330D M57N2
  • E91N 325D M57N2
  • E92 325D M57N2
  • E92 330D M57N2
  • E93 325D M57N2
  • E93 330D M57N2
Manual gearbox (Petrol)
BMW N54 ZF GS6-53BZ code HGX 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 526 820 / 23 00 7526820 / 23007526820
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677



BMW 3-Series 3er E90 E91 E92 E93 / LCI

  • E90 335i N54B30A
  • E90N 335i N54B30A
  • E91 335i N54B30A
  • E91N 335i N54B30A
  • E92 335i N54B30A
  • E92N 335i N54B30A
  • E93 335i N54B30A
  • E93N 335i N54B30A

BMW 5-Series 5er E60 LCI

  • E60 535i N54B30A
BMW N54 ZF GS6-53BZ code JGK 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 581 860 / 23 00 7581860 / 23007581860
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677

BMW 1-Series 1er E81 E88

  • E82 135i N54B30A
  • E88 135i BMW E89 Z4 35i N54B30A

BMW BMW E89 Z4 35i N54B30A

BMW N54 ZF GS6-53BZ code JGF 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGF code JGF 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE:
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 081 104 / 23.00-4545952 / 23 00 4545952 / 23004545952

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677

BMW 3-Series 3er E90 E91 E92 E93 LCI

  • E90 335i N54B30
  • E90N 335i N54B30
  • E91 335i N54B30
  • E91N 335i N54B30
  • E92 335i N54B30
  • E92N 335i N54B30
  • E93 335i N54B30
  • E93N 335i N54B30

BMW 5-Series 5er E60 LCI

  • E60N 535i N54B30
BMW N54 ZF GS6-53BZ code JGD 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD 6-speed

  • BMW Engine: N54 N54B30A
  • BMW OE: 23 00 7 567 242 / 23 00 7567242 / 23007567242
  • Bell housing: 1067 401 127 / 1067401127
  • Sticker number: 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240

Ratio

  • 1 - 4.055
  • 2 - 2.396
  • 3 - 1.582
  • 4 - 1.192
  • 5 - 1.000
  • 6 - 0.872
  • R - 3.677



BMW 3-Series 3er E90 E91 E92 E93 / LCI

  • E90 335i N54B30A
  • E90N 335i N54B30A
  • E91 335i N54B30A
  • E91N 335i N54B30A
  • E92 335i N54B30A
  • E92N 335i N54B30A
  • E93 335i N54B30A
  • E93N 335i N54B30A

BMW 5-Series 5er E60 LCI

  • E60 535i N54B30A
Clutch Set
Set with Clutch
Yes
Max torque
800Nm / 589,9 lb/ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included
Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting
No
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Mercedes-Benz (OE) Brak w zestawie
Flexplate / ring gear / Drive plate required
Mercedes-Benz Automatic OM605 OM606 OEM A6060300112
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
30mm / 1.18"
Flywheel weight
6.35 kg / 14 lb
Replaceable friction surface
Yes

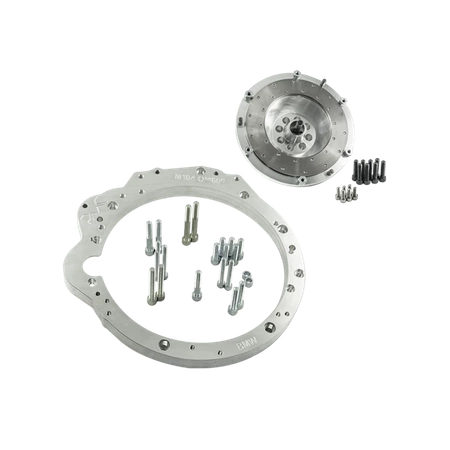

Set includes

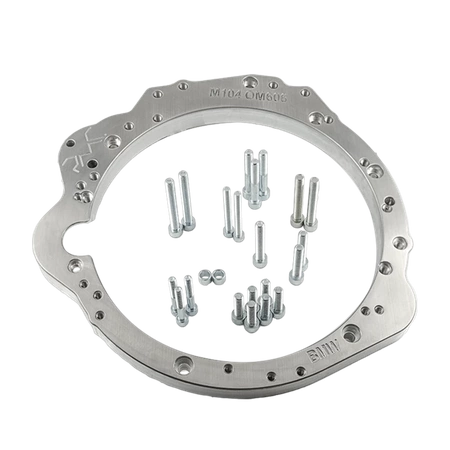

Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Sintered clutch disc 32,5x35-26N [240mm / 9.45"]
Sachs Performance 88 308 200 1243 / 883082.001243
Product sales codes included
K0HGU-240-M113 (2259)
F0BMW-M104 (3640)
SACHS 243 (1694)
240-32,5X35-26N (1056)
EAN
5903707415489
Kod sprzedażowy zestawu
RS1-OM-HGU-SP
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:

@pmcmotorsport on Instagram Check out our profile on Instagram

pixel
