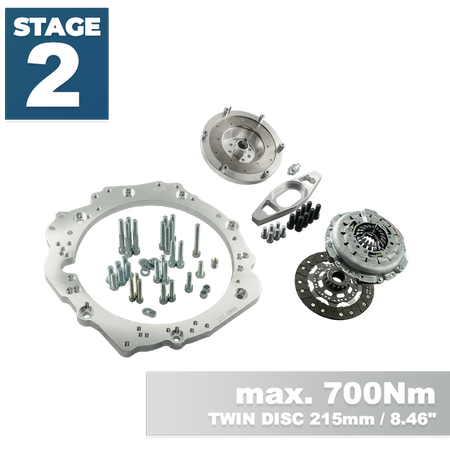

Stage 2 Toyota JZ - BMW N54 GS6-53BZ 135i 335i 535i - 215mm / 8.46" Twin Disc
- PMC Motorsport Stage 2 clutch kit Toyota JZ 1JZ 2JZ - BMW N54 GS6-53BZ 135i 335i 535i 6-speed - 215mm / 8.46"+ Sachs XTend 3000.950.709-S Twin disc max. 700Nm / 516,12 lb/ft
PMC Motorsport Stage 2 Adapter / Conversion Kit / SWAP kit / Clutch Kit Toyota JZ 1JZ 2JZ - BMW N54 ZF GS6-53BZ 135i 335i 535i 6-speed - 215mm / 8.46" + Sachs XTend 3000.950.709-S Twin disc max. 700Nm / 516.12 lb/ft
The adapter enables the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non VVT-i versions) with the BMW ZF (ZF Friedrichshafen) GS6 6-speed manual gearbox.
Are you planning a Toyota JZ 1JZ 2JZ SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a BMW manual and unlock new possibilities. PMC Motorsport adapters are not only for gearbox replacements in the Toyota JZ 1JZ 2JZ, but also support JZ SWAPs in BMWs and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection with a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, they will provide technical support. You can contact us via the contact form.
Individual component purchase
Our offer includes every element of our kit, which can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport.
From the beginning, we focus on the quality of the parts we manufacture. Every element is inspected after each stage of production. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO certificate PN-EN ISO 9001:2015
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will calculate shipping costs after the order is placed and add them to the order. You will receive an email with the order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers with an active European VAT ID (option for B2B customers outside Poland) and for export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
Toyota JZ
Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version)
Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version)
|
| Compatible gearboxes: |
ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed
ZF S6-53 GS6-53BZ HGX (THGX) BMW N54 E60 535i E9x 335i
ZF S6-53 GS6-53BZ JGD (TJGD) BMW N54 E60 535i E9x 335i
ZF S6-53 GS6-53BZ JGF (TJGF) BMW N54 E60 535i E9x 335i
ZF S6-53 GS6-53BZ JGK (TJGK) BMW N54 E8x 135i Z4 35i
ZF S6X53 GS6X53BZ HGY (THGY) BMW N54 E60 535i E9x 335i
|
Additional Information
PMC Motorsport parts are intended for motorsport. For use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation manual contains only basic knowledge necessary for the physical connection of the engine with the gearbox outside the car body.
Depending on the car, additional modifications may occur, such as: fitting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from materials that are fully recyclable.
Why choose BMW gearboxes?
Availability and Price. Millions of cars produced and their global presence guarantee the availability of spare parts. Both individual parts and complete gearboxes are easily accessible at authorized service centers (ASO) and on the secondary market.
Durability and Reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque (some models 1000Nm+), while ensuring high reliability. They are ideal for SWAP projects in high-power builds intended for daily use.
ZF Friedrichshafen GS6-53BZ
The ZF Friedrichshafen GS6-53BZ 6-speed manual gearbox (S6-53BZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for motorsport. Female type spline: 32.5x35-26N
ZF GS6-53BZ Gear Ratios
|
| 1 |
2 |
3 |
4 |
5 |
6 |
R |
| 4.055 |
2.396 |
1.582 |
1.192 |
1.000 |
0.872 |
3.677 |
ZF GS6-53BZ HGX THGX
|
 |
ZF GS6-53BZ JGD TJGD
|
 |
ZF GS6-53BZ JGF TJGF
|
 |
ZF GS6-53BZ JGK TJGK
|
 |
For installation, it is necessary to use an OE Toyota automatic transmission flexplate (part no. 32101-30090 | 32101-22050) and a 4.5mm spacer between the engine block and the ring gear (OE 32116-22020, not included). The clutch release fork should be mounted in the higher position of the release bearing.
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More
- Toyota 1JZ-FSE
- Toyota 1JZ-GE
- Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More
- Toyota 2JZ-FSE
- Toyota 2JZ-GE
- Toyota 2JZ-GTE
Manual gearbox (Petrol)
6-speed ZF GS6-53BZ BMW N54More
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
- BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
- BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK
- Bell housing : 1067 401 127 / 1067401127
- Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
- BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
- BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
Clutch Set
Diameter of Friction Plate
Clutch Set included
Sachs XTend 3000 950 709 / 3000.950.709-S BMW E9X V8 M3
Spline
32,5x35-26N (GS6-53DZ / BZ)
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Gearbox adapter thickness
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
Replaceable friction surface
Set includes

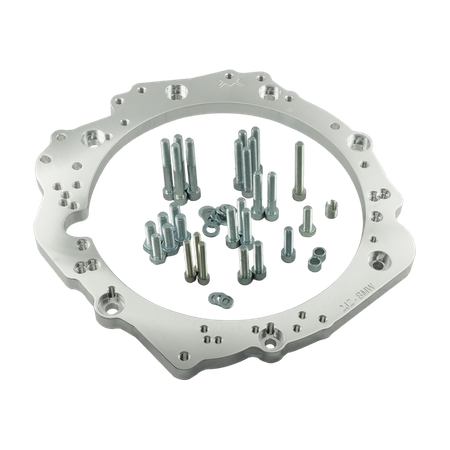

Aluminium gearbox adapter
Gearbox adapter bolts

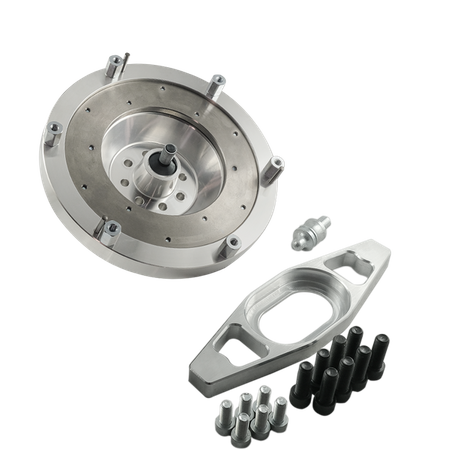

Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit

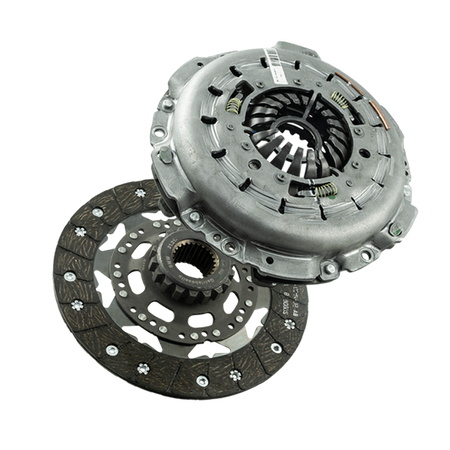

Sachs XTend 3000 950 709
Product sales codes included
F0BMW-JZ
K0N54-215-JZ (3838)
SACHS 709
