PMC Motorsport adapter / conversion kit / clutch kit Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed 184mm / 7.25" STEP type + Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302 HGG + Tilton 64185-8-VV-10 max. 900Nm / 663.58lb⋅ft [Twin disc]

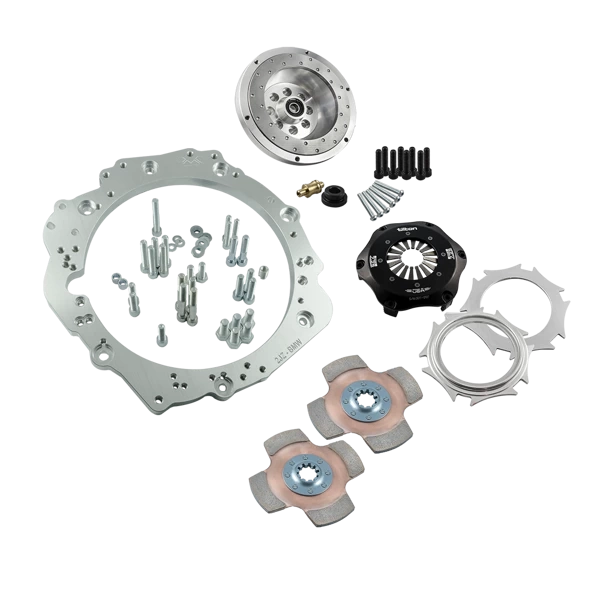

Clutch kit enabling the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE, GTE, VVT-i and non-VVT-i versions) with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual transmissions such as: ZF 5, GETRAG 420 G (inline engine version), GETRAG 250 G. The kit includes a twin-disc clutch: a Tilton racing pressure plate (OT-II Cerametallic Pressure Plate 7.25" 66-302 HGG) and 2 Tilton 7.25" sintered discs (64185-8-VV-10). Due to its specifications, this kit is intended for professional motorsport. Adapter designed for professional motorsport!

Are you planning a Toyota JZ 1JZ 2JZ SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a manual one from BMW and unlock new possibilities. PMC Motorsport adapters are not just for gearbox replacements in Toyota JZ 1JZ 2JZ, but also provide support for JZ SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.

Additional Information

ZF Friedrichshafen ZF5 S5-32D

The ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual gearbox used in BMW E-series cars with M50, M52, and M54 engines (E36 328i, M3 USA, E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54), 528i (M52), 530i (M54), Z3 2.8i (M52), 3.0i (M54), Z3 M3.2i (S52) *Canada & USA versions only, M3.2i (S54)). The gearbox weight is approx. 39 kg (86 lb). Input shaft spline type: 23x29-10N

ZF 320D 10534013
ZF 320D 105340148

To install the flywheel, it is necessary to use the automatic version starter ring gear Toyota OE 32101-30090 | 32101-22050 and the spacer between the engine block and the ring gear OE 32116-22020 4.5mm (not included). Mount the clutch fork on the lower release bearing position (in case of a two-position bearing).

FAQ

1. Which starter motor should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW adapter?

For the adapter installation, use the Toyota JZ starter motor without the additional pinion shroud. Depending on the version of the Toyota JZ 1JZ 2JZ - BMW adapter you have, there are three installation methods:

a) Adapters produced until 2022 - The starter is mounted identically to the Original Equipment (OE).

b) Adapters produced from 2022 to 2025 - One of the starter mounting holes in the engine block must be enlarged. The hole should be drilled to a diameter of ∅12.9-13.2 mm (0.507"-0.520") to a depth of 22 mm (0.866"). Then, use the bushing from the AN 335-M10 kit and secure it with an ISO4762-M10x35 bolt.

c) Adapters produced from January 2025 - The lower mounting hole in the starter must be enlarged to ∅12-13 mm, and the engine block must be tapped for M12x1.5.

2. Which ring gear should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel?

When installing the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel, use the starter ring gear (flywheel) from the automatic version of Toyota 1JZ / 2JZ (OE number: 32101-30090 | 32101-22050) and one Toyota spacer (OE number: 32116-22020) with a thickness of 4.5 mm between the engine block and the ring gear.

3. The GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5 gearbox does not fit all holes of the PMC Motorsport gearbox adapter.

(Applies to adapters manufactured after 2022) The PMC Motorsport adapter is the most universal adapter on the market, supporting virtually every BMW gearbox. While designing the adapter, we decided on certain compromises. This is the case for the GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5 gearboxes, where two upper holes must be slightly trimmed/ground in the gearbox bellhousing. This modification does not affect the centering of the engine and gearbox.

4. Can I use the gearbox adapter for the 6-speed GS6-53DZ / GS6-53BZ gearbox?

Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to change the gearbox, simply replace the flywheel and clutch disc.

5. Can I use the PMC Motorsport Toyota 1JZ 2JZ - BMW gearbox adapter for a ZF 8HP?

Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to switch to a ZF 8HP automatic transmission, you must replace the standard flywheel with an 8HP converter adapter (PMC Motorsport).
