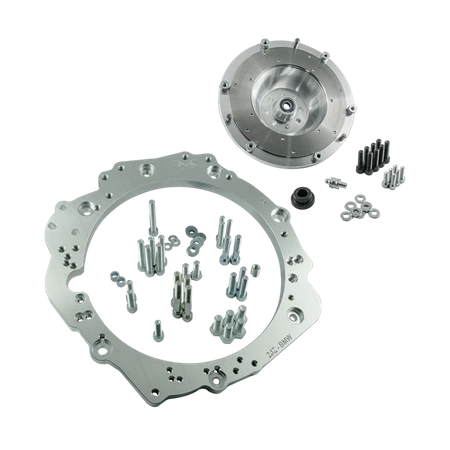

Adapter Toyota 1JZ 2JZ - 6-speed manual BMW E46 S54 M3 GETRAG 420 6-speed - 240mm / 9.45"

PMC Motorsport adapter plate / conversion kit / flywheel kit Toyota JZ 1JZ 2JZ – 6-speed manual BMW E46 M3 S54 Getrag 420G – 240 mm / 9.45" – 5.0 kg / 11 lbs

Adapter plate enabling the mating (swap / conversion) of the Toyota JZ 1JZ 2JZ engine with the Getrag 420G 6-speed manual transmission used in BMW E46 M3 with the S54 engine (TBAI, as well as TBAK from the SMG version). The Getrag 420G bellhousing is also frequently used by manufacturers of motorsport gearboxes (dog-box / dog-leg), e.g., GearMotive Racing Dogbox BMW and D.M.A BMW sequential gearbox (S54) – both with 28x35-10N spline. Ideal solution for amateur and professional motorsport – drift and time attack.

Planning a Toyota JZ 1JZ 2JZ swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Swap your automatic transmission for a BMW manual gearbox and unlock new possibilities. The Getrag 420G transmission is also a durable replacement for factory Toyota R154, W55, W58, or V160 / V161 gearboxes.

PMC Motorsport adapter plates are not only for automatic-to-manual conversions in cars with Toyota JZ 1JZ 2JZ engines, but also support JZ engine swaps into BMW and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Aluminum gearbox adapter plate designed to simplify transmission installation as much as possible, avoiding radical modifications like cutting off the entire gearbox bellhousing – only preparing a hole for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction plate, tested and balanced before shipping. Flywheel designed for 240 mm pressure plate from BMW M57 or E46 M3 (does not fit M50 / M52 / M54 / S50 / E36 M3 pressure plates). Replaceable friction plate FW001.00.02 is available as a spare part. Flywheel weight: 5.0 kg (11 lbs), thickness of universal adapter F0BMW-JZ: 20 mm (0.78").

PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal alignment (concentricity) of engine and transmission, which is critical for drivetrain longevity.

Additional Information

Installation Instructions

For flywheel installation, it is required to use the automatic flexplate / starter ring gear Toyota OE 32101-30090 or 32101-22050 and a 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-22020 (not included). The crankshaft pilot bearing (if present) must be removed and replaced with the pilot bushing. Torque the flywheel to the crankshaft using the supplied bolts to 72 Nm (53.1 lb⋅ft) with threadlocker. Two mounting holes of the Getrag 420G gearbox need to be slightly trimmed/ground – as shown in the graphic below. Release bearing and clutch fork remain from your gearbox – for a two-position release bearing, use the 24 mm position. The original pivot ball must be replaced with the custom one included in the kit. For adapter installation, use a Toyota JZ starter motor without a nose cone / pinion shield – see details in the FAQ section.

Frequently Asked Questions

Which engines is this adapter compatible with?

For Toyota JZ family engines: 1JZ (1JZ-FSE, 1JZ-GE, 1JZ-GTE) and 2JZ (2JZ-FSE, 2JZ-GE, 2JZ-GTE), both VVT-i and non VVT-i versions.

Which gearboxes is this adapter compatible with?

For 6-speed manual Getrag 420G from BMW E46 M3 with S54 engine – in TBAI and TBAK (SMG) versions – as well as motorsport dogbox and sequential gearboxes with Getrag 420G bellhousing, e.g., GearMotive Racing Dogbox BMW and D.M.A BMW sequential gearbox (S54, ZF 28x35-10N).

Do I need to cut the gearbox bellhousing?

No. The adapter is designed to avoid cutting the bellhousing – you only need to prepare an opening for the starter motor.

What extra parts do I need to buy for installation?

Automatic Toyota 1JZ / 2JZ flexplate / ring gear, OE 32101-30090 or 32101-22050, and one 4.5 mm spacer washer between engine block and flexplate, Toyota OE 32116-22020. You also need a 240 mm pressure plate and clutch disc, Toyota JZ starter motor (see question below), and a release bearing, clutch fork, and clutch slave cylinder specific to your gearbox. These parts are not included in the kit.

Which clutch fits the PMC flywheel?

A 240 mm (9.45") pressure plate, BMW M57 or E46 M3 type – e.g. Sachs Performance 883082.001243 or Sachs XTend 3000 951 877 (BMW M57). Pressure plates from BMW M50 / M52 / M54 / S50 / E36 M3 do not fit. A 240 mm clutch disc with 28x35-10N spline (10 teeth) for Getrag 420G gearbox.

Which starter motor should be used?

Toyota JZ starter motor without a nose cone / pinion shield. Installation method depends on the adapter version:

a) adapters produced up to 2022 – starter is installed identically to original equipment (OE);

b) adapters produced from 2022 to 2025 – one of the starter mounting holes in the engine block must be reamed to a diameter of ∅12.9–13.2 mm (0.507"–0.520") to a depth of 22 mm (0.866"), then use the bushing from kit AN 335-M10 and bolt it with an ISO 4762-M10x35 bolt;

c) adapters manufactured from January 2025 – enlarge the lower mounting hole in the starter motor to a diameter of ∅12–13 mm and thread the engine block to M12x1.5.

Does the adapter plate also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW gearboxes (applies to adapter plates manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with a PMC Motorsport 8HP torque converter adapter.

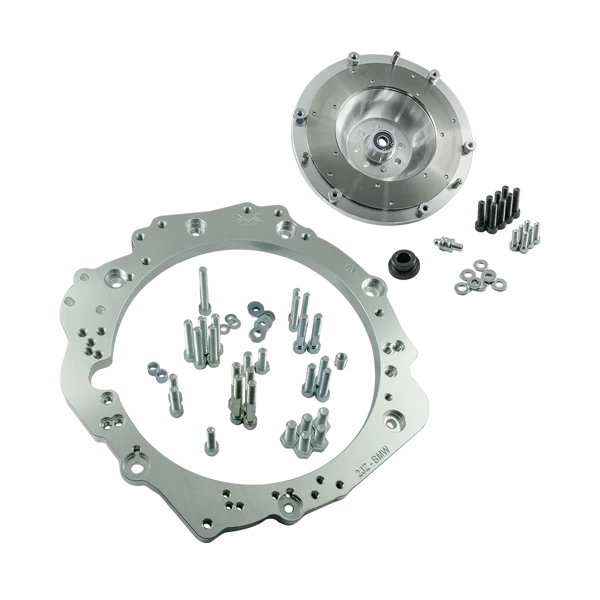

What does the kit include?

Universal aluminum PMC F0BMW-JZ gearbox adapter plate (20 mm) with mounting bolts, custom PMC Motorsport flywheel with replaceable friction plate (5.0 kg / 11 lbs), crankshaft bolts, pressure plate bolts, and pivot ball – replacement for BMW OE 21 51 1 223 328.

Is the flywheel balanced?

Yes. Every PMC Motorsport flywheel is balanced before shipping (tolerance 4 g). In case of installing a custom clutch setup, we recommend additional balance checking.

Can I buy just the adapter plate or just the flywheel?

Yes. Every item in the kit is available separately.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include customs duties or additional fees that may apply in the recipient's country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified in the VIES system) or ordering with shipment outside the EU.

Is the supplied manual sufficient for installation?

The manual covers mating the engine and transmission outside the vehicle body. Depending on the car model, additional modifications may be required: engine mounts, bushings, firewall clearance, transmission tunnel, driveshaft length. We recommend professional installation.

It is worth noting that a lightweight single-mass flywheel provides an uncompromising throttle response at the cost of eliminating factory damping components. This results in a more direct drivetrain operation, which may lead to a natural increase in gear noise from the transmission. This is a desired characteristic in sports vehicles resulting from the rigid connection between engine and drivetrain
