PMC Motorsport adapter / conversion kit / clutch kit Toyota JZ 1JZ 2JZ - BMW N54 ZF GS6-53BZ 135i 335i 535i 6-speed Petrol - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32.5x35-26N max. 800Nm / 589.9lb⋅ft

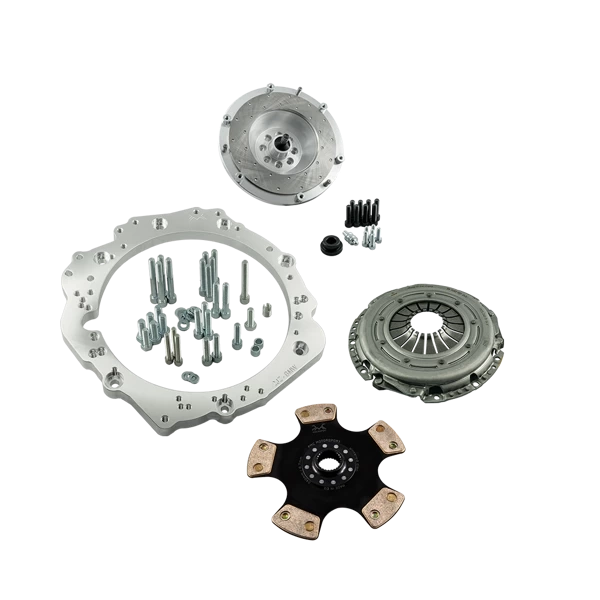

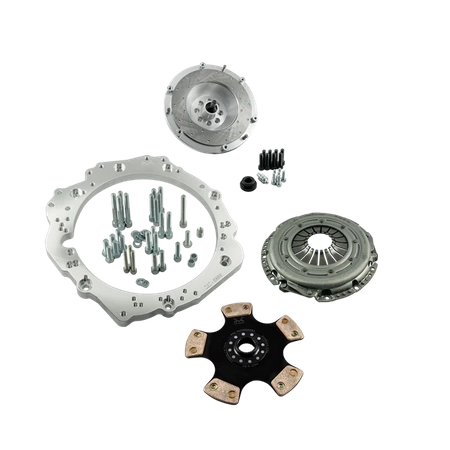

Clutch kit allowing the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine with a manual 6-speed ZF (ZF Friedrichshafen) GS6 gearbox from BMW. The adapter is designed for the very popular and durable 6-speed ZF GS6-53BZ gearbox. The kit includes a reinforced Sachs Performance 883082.001243 clutch pressure plate without self-adjusters and a PMC 26N sintered disc - maximum torque 800Nm / 589.9lb⋅ft. Due to its characteristics, this kit is intended for motorsport use!!!

Planning a Toyota JZ 1JZ 2JZ swap into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace an automatic transmission with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not just for gearbox replacements in Toyota JZ 1JZ 2JZ, but also support JZ SWAPs in BMWs and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal coaxiality of the engine and gearbox, which is crucial for the durability of the drivetrain.

Additional Information

Why choose a gearbox from BMW?

Availability and Price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts, as well as complete gearboxes, are easily available at authorized service centers (ASO) and on the secondary market.

Strength and Reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAPs in high-power projects intended for daily use.

ZF Friedrichshafen GS6-53BZ

The ZF Friedrichshafen GS6-53BZ 6-speed manual gearbox (S6-53BZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for motorsport. Female type spline: 32.5x35-26N

ZF GS6-53BZ HGX THGX
ZF GS6-53BZ JGD TJGD
ZF GS6-53BZ JGF TJGF
ZF GS6-53BZ JGK TJGK

To install the flywheel, it is necessary to use the automatic version starter ring gear (Toyota OE: 32101-30090 | 32101-22050) and a spacer between the engine block and the ring gear (Toyota OE: 32116-22020, 4.5mm) (not included). The clutch fork must be mounted in the lower position of the release bearing (in the case of a two-position bearing)

FAQ

1. Which starter motor should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW adapter?

For the adapter installation, use a Toyota JZ starter motor without the additional pinion shroud. Depending on the version of the Toyota JZ 1JZ 2JZ - BMW adapter you have, there are three installation methods:

a) Adapters produced until 2022 - the starter is mounted identically to the Original Equipment (OE).

b) Adapters produced from 2022 to 2025 - one of the starter mounting holes in the engine block must be enlarged. The hole should be drilled to a diameter of ∅12.9-13.2 mm (0.507"-0.520") to a depth of 22 mm (0.866"). Then, use the bushing from the AN 335-M10 kit and secure it with an ISO4762-M10x35 bolt.

c) Adapters produced from January 2025 - the lower mounting hole in the starter must be enlarged to ∅12-13 mm and the engine block must be tapped for M12x1.5.

2. Which ring gear should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel?

When installing the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel, use the starter ring gear (flywheel) from the automatic version of the Toyota 1JZ / 2JZ (OE number: 32101-30090 | 32101-22050) and one Toyota spacer (OE number: 32116-22020) with a thickness of 4.5 mm between the engine block and the ring gear.

3. Can I use the PMC Motorsport Toyota 1JZ 2JZ - BMW gearbox adapter for a ZF 8HP?

Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to switch to a ZF 8HP automatic transmission, the standard flywheel must be replaced with an 8HP converter adapter (PMC Motorsport).

4. Which clutch can I use with the PMC Motorsport flywheel?

The Toyota 1JZ 2JZ - BMW ZF5 flywheel was designed for a clutch pressure plate from the BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Very often, clutch kits from companies like ACT / Spec / Tanaci are used with our kit (it is important that the custom pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your specific gearbox, use a clutch disc with the appropriate spline, a dedicated release kit, and a slave cylinder.
