PMC Motorsport adapter / conversion kit / clutch kit Mercedes-Benz OM605 / OM606 – 6-speed manual BMW M57N / M57N2 ZF GS6-53DZ HGD JGA E60 525d 530d – 240 mm / 9.45" – 5.45 kg / 12.01 lbs

Important: the automatic transmission flexplate (starter ring gear) Mercedes-Benz OM605 / OM606 OE 102 032 06 06 (not included) is required to install the PMC flywheel.

Adapter enabling the connection (swap / conversion) of the Mercedes-Benz OM605 (inline-5 2.5 D / Turbodiesel) or OM606 (inline-6 3.0 D / Turbodiesel) diesel engine with the 6-speed manual gearbox ZF GS6-53DZ HGD / JGA used in BMW with M57N / M57N2 diesel engines (E60 / E61 525d, 530d), as well as xDrive versions GS6X53DZ HGE / JGB. The heavy-duty GS6-53DZ gearbox (rated at 1000 Nm+) is an ideal platform for high-power builds. An optimal solution for amateur and professional motorsport, drifting, and daily street driving.

Planning an engine swap with a Mercedes-Benz OM605 / OM606 in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Convert your automatic gearbox to a BMW manual transmission and unlock new possibilities.

PMC Motorsport adapters not only facilitate automatic-to-manual transmission conversions in vehicles powered by Mercedes-Benz OM605 / OM606 engines, but also support swaps of the OM605 / OM606 into BMW and other platforms, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

The aluminum gearbox adapter plate has been engineered to simplify gearbox installation as much as possible, avoiding radical modifications like cutting off the entire bellhousing – only an opening for the starter motor needs to be prepared. The custom lightweight flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction surface, fully inspected and balanced before shipping. The flywheel is designed for a 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE). Flywheel weight: 5.45 kg (12.01 lbs), adapter plate thickness: 30 mm (1.18").

PMC Motorsport gearbox adapters are synonymous with precision and premium quality. A design process based on 3D scanning and quality control using a measuring arm ensure a perfect fit. Production on state-of-the-art CNC machines guarantees ideal concentricity between the engine and transmission, which is crucial for the durability of the drivetrain.

Additional information

Installation manual

Installing the flywheel requires using the automatic transmission flexplate (starter ring gear) from the automatic version Mercedes-Benz OM605 / OM606 OE 102 032 06 06 (not included). Tighten the flywheel bolts to the crankshaft with a torque of 80 Nm (59 lb⋅ft) using threadlocker. Mount the clutch fork on the lower position of the release bearing (in the case of a two-position bearing). A 240 mm clutch disc with a 32.5x35-26N spline dedicated to the GS6-53DZ transmission must be used. To mount the adapter, use the original Mercedes-Benz OM605 / OM606 starter motor (OE, not included). The release bearing, clutch fork, and clutch slave cylinder are not included in the kit – they are retained from your gearbox.

Frequently Asked Questions

Which engines does this adapter fit?

To Mercedes-Benz diesel engines OM605 (5-cylinder 2.5 D / Turbodiesel: 605.910, 605.911, 605.912, 605.960, 605.962) and OM606 (6-cylinder 3.0 D / Turbodiesel: 606.910, 606.912, 606.961, 606.962, 606.964) – among others from Mercedes W124, W202, W210, W140, and W463 G 300 Turbodiesel.

Which gearboxes does the adapter fit?

To the 6-speed manual ZF GS6-53DZ transmission from BMW with M57N / M57N2 diesel engines in HGD (THGD) and JGA (TJGA) versions – E60 / E61 525d, 530d – as well as xDrive versions GS6X53DZ HGE (THGE) and JGB (TJGB). The gearbox features a 32.5x35-26N spline.

Which ring gear must be used with the PMC flywheel?

The automatic version flexplate (starter ring gear / flywheel) Mercedes-Benz OM605 / OM606 OE 102 032 06 06. The ring gear is not included in the kit.

Does the bellhousing of the gearbox need to be cut?

No. The adapter has been engineered to avoid cutting the bellhousing – only an opening for the starter motor needs to be prepared.

What additional parts do I need to purchase for installation?

A 240 mm clutch pressure plate and clutch disc (32.5x35-26N), release bearing, clutch fork, and clutch slave cylinder dedicated to the GS6-53DZ transmission, the automatic version flexplate (starter ring gear) Mercedes-Benz OE 102 032 06 06, and the original Mercedes-Benz OM605 / OM606 starter motor. These parts are not included in the kit.

Which clutch pressure plate fits the PMC flywheel?

A 240 mm (9.45") BMW OE type pressure plate – from BMW M57N / M57N2 / N54 / B58 / E46 M3, Sachs XTend 3000 951 952 (M57N / M57N2), Sachs XTend 3000 951 949 (N54 / N55), or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also commonly used – an aftermarket pressure plate must match the BMW OE flywheel pattern (M57N / M57N2 / N54 / B58). For the GS6-53DZ transmission, use a 240 mm clutch disc with a 32.5x35-26N spline, a dedicated release system, and a clutch slave cylinder.

On which position of the release bearing is the clutch fork mounted?

On the lower position of the release bearing (in the case of a two-position bearing) – as shown in the diagram in the "Installation manual" section.

Which starter motor should be used?

The original Mercedes-Benz OM605 / OM606 (OE) starter motor. The starter motor is not included in the kit.

Can I use this adapter with another BMW gearbox, such as the GS6-53BZ?

Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW manual transmissions (applies to adapter plates manufactured after 2022). When switching gearboxes, only the flywheel and clutch disc need to be replaced.

Does the adapter also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW transmissions (applies to adapter plates manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with the PMC Motorsport 8HP torque converter adapter.

What is included in the kit?

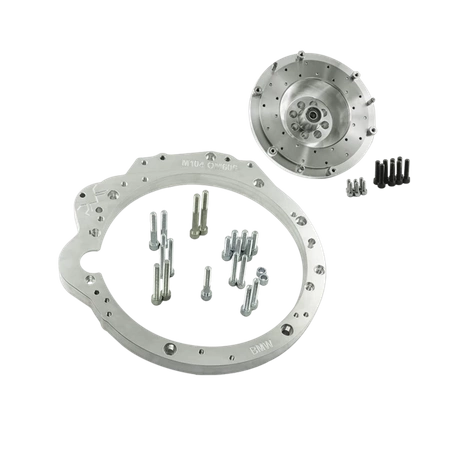

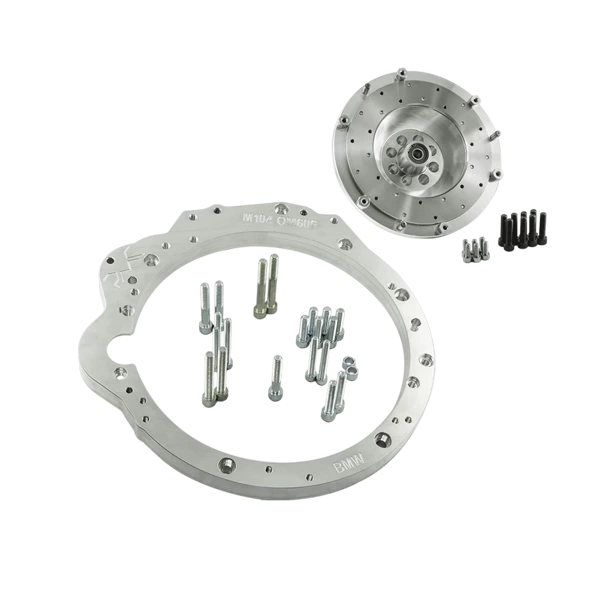

Aluminum gearbox adapter plate (30 mm) with mounting bolts, custom PMC Motorsport flywheel with replaceable friction surface (5.45 kg / 12.01 lbs), crankshaft bolts, and clutch pressure plate mounting bolts. The clutch, release bearing, clutch fork, and slave cylinder are not included – they must be selected to match your gearbox.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component of the kit is available separately.

Does the price include customs duty for shipping outside the European Union?

No. The product price and shipping quote do not include customs duties or import taxes that may occur in the destination country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT ID (verified in the VIES system) or for orders exported outside the EU.

Is the included manual sufficient for installation?

The manual describes mating the engine and gearbox outside the vehicle body. Depending on the car, additional modifications may be required: mounts, bushings, firewall, transmission tunnel, driveshaft length. We recommend installation by professionals.

It is worth noting that a lightweight rigid single-mass flywheel provides uncompromising throttle response at the cost of eliminating factory damping elements. This results in a more direct drivetrain operation, which may cause a natural increase in audible gearbox chatter. This is a normal and desired characteristic in sports vehicles resulting from the rigid mechanical connection between the engine and the drivetrain.
