PMC Motorsport adapter / conversion kit / clutch kit Mercedes-Benz M104 - BMW M57n M57n2 ZF GS6-53DZ HGU HGK E9x 325D 330D 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32.5x35-26N max. 800Nm / 589.9lb⋅ft

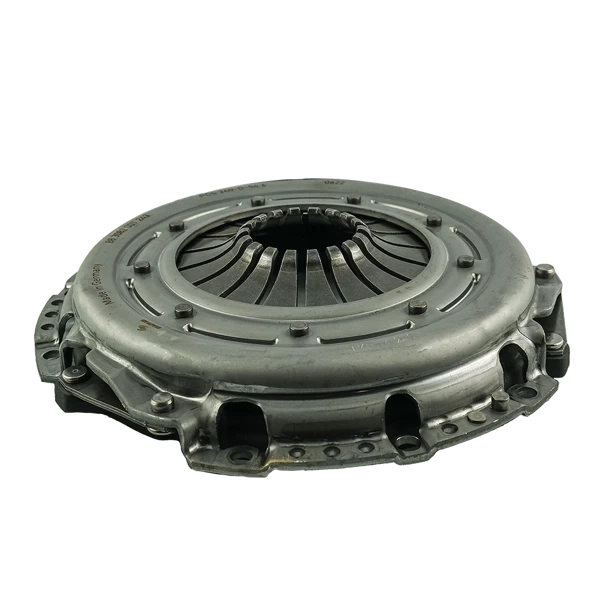

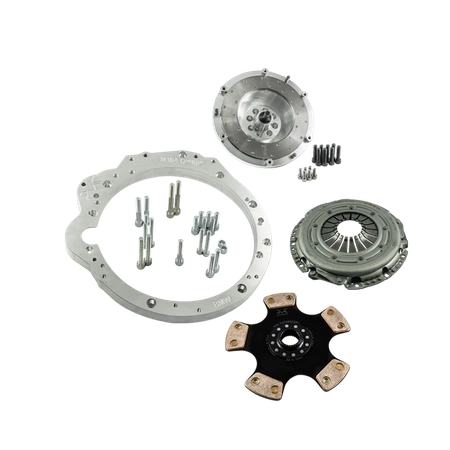

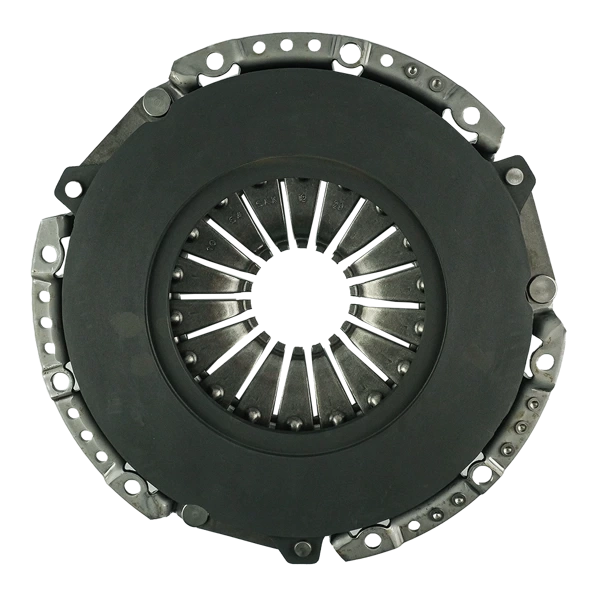

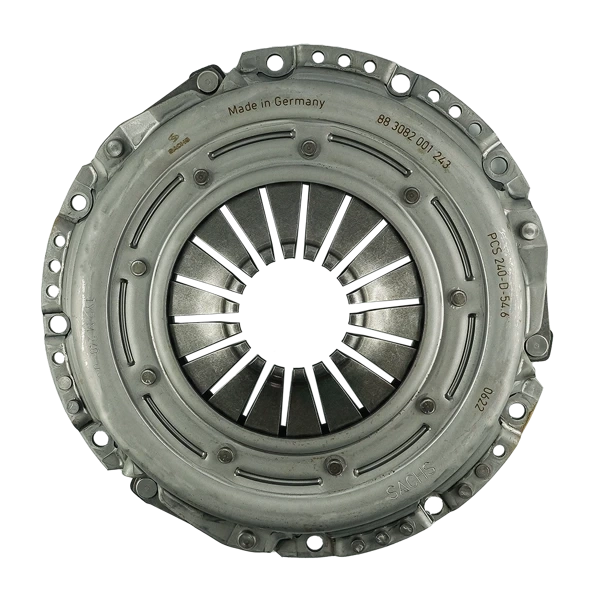

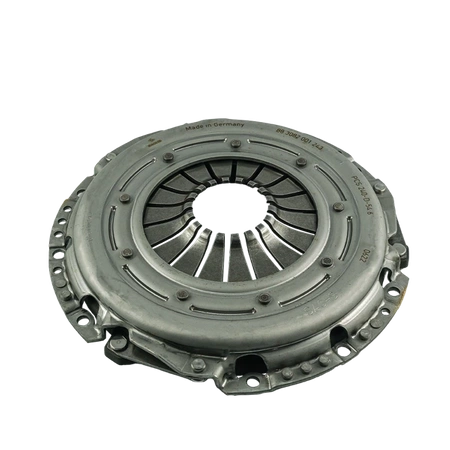

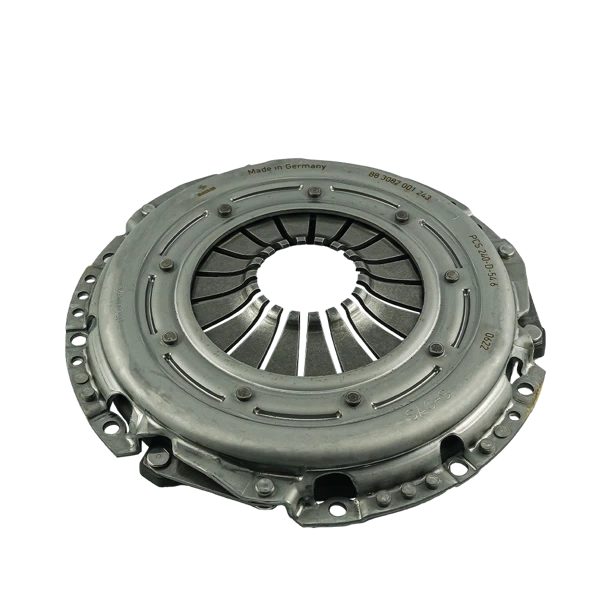

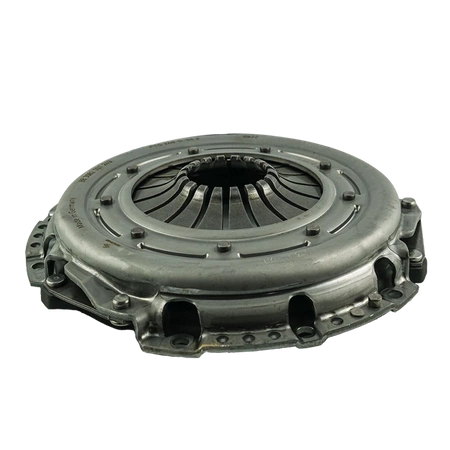

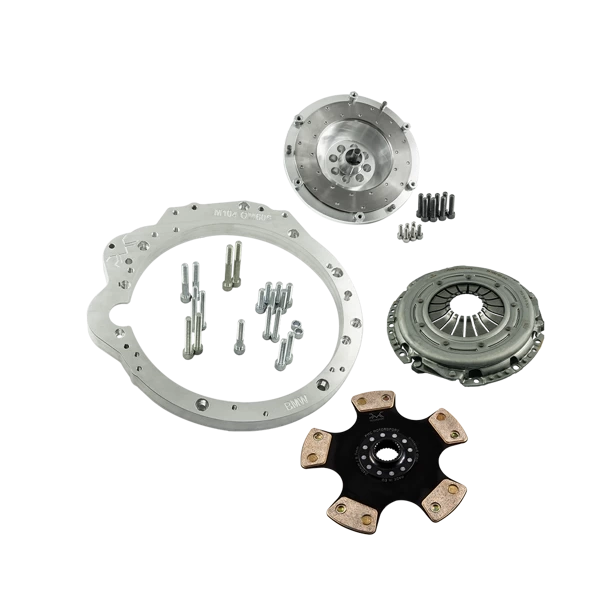

Clutch kit allowing the connection (swap / conversion) of the Mercedes-Benz M104 engine with a manual 6-speed ZF (ZF Friedrichshafen) GS6 gearbox from BMW. The adapter is designed for the very popular and durable 6-speed ZF GS6-53DZ gearbox. The kit includes a reinforced Sachs Performance 883082.001243 clutch pressure plate without self-adjusters and a PMC 26N sintered disc - maximum torque 800Nm / 589.9lb⋅ft. Due to its characteristics, this kit is intended for motorsport use!!!

Are you planning to perform a Mercedes-Benz M104 swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace an automatic transmission with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only for gearbox replacements in Mercedes-Benz M104, but also provide support in implementing M104 SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

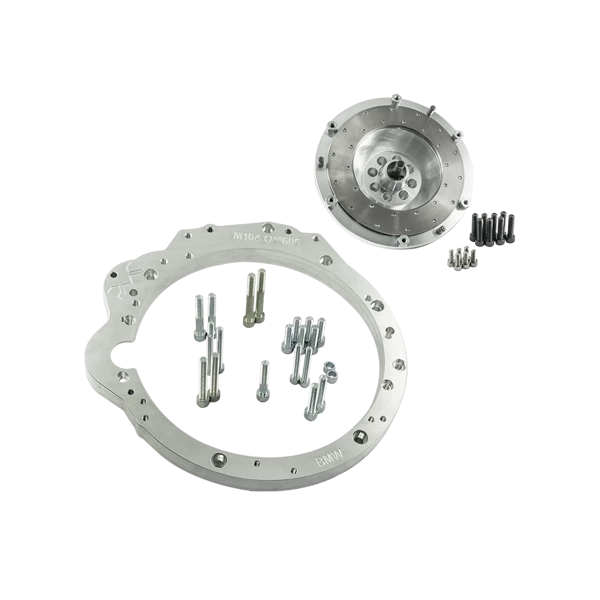

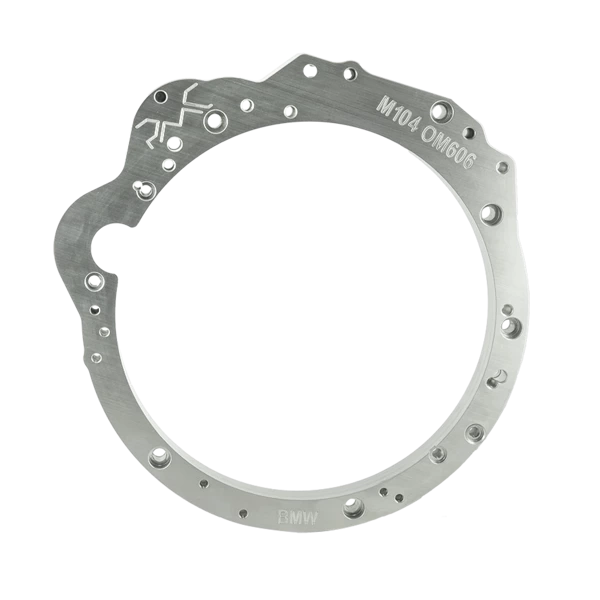

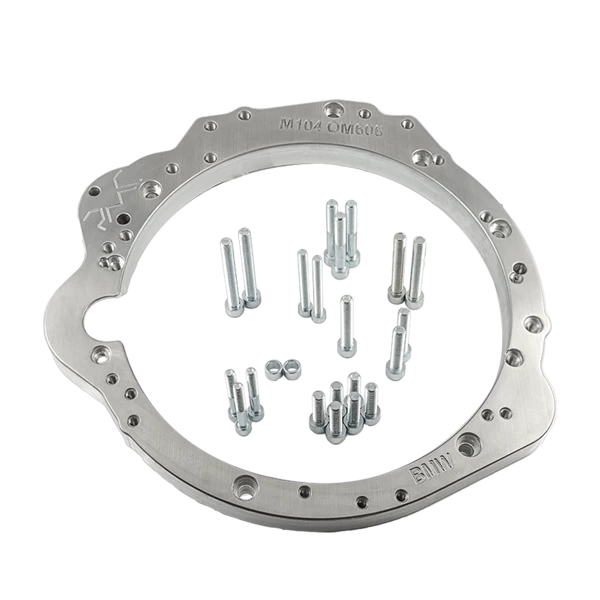

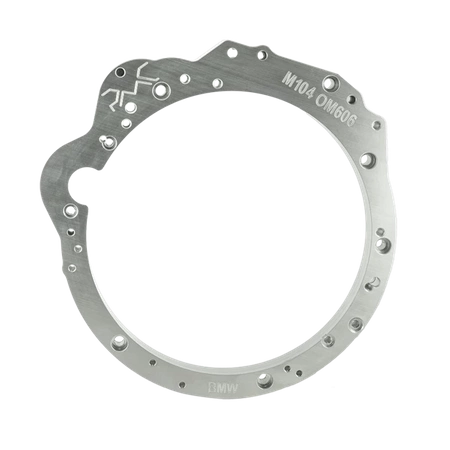

PMC Motorsport gearbox adapters are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.

Additional Information

Why choose BMW gearboxes?

Availability and price. Millions of cars produced and their worldwide availability guarantee the accessibility of spare parts. Both individual parts and complete transmissions are easily available at authorized dealers (ASO) and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAPs in high-power projects intended for daily use.

ZF Friedrichshafen GS6-53DZ

The ZF Friedrichshafen GS6-53DZ 6-speed manual gearbox (S6-53DZ) is an ideal solution for motorsport-prepared cars due to its high durability (1000Nm+) and low price. Input shaft spline type (Female): 32.5x35-26N

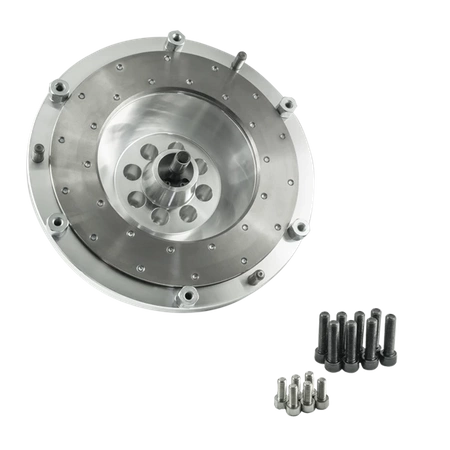

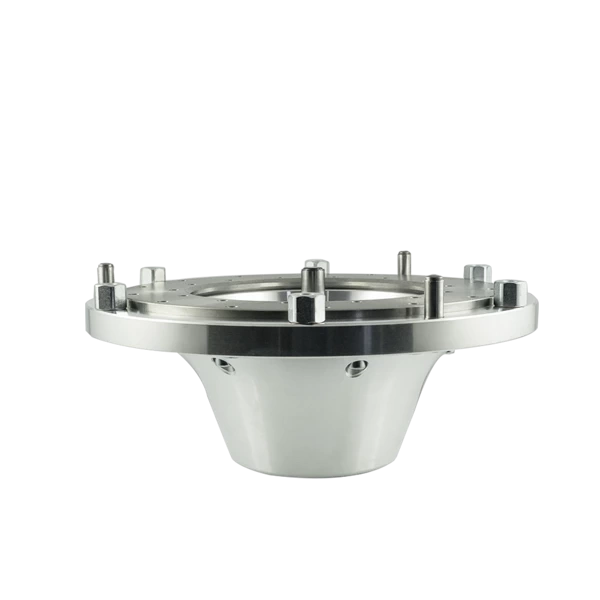

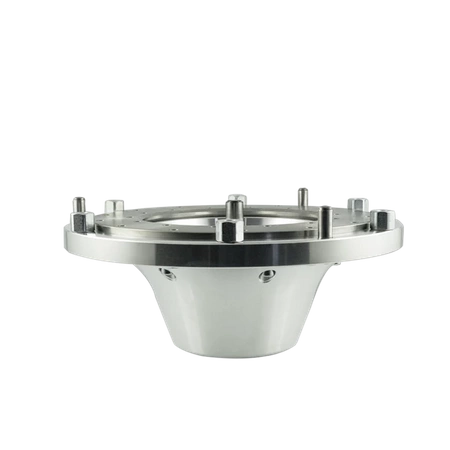

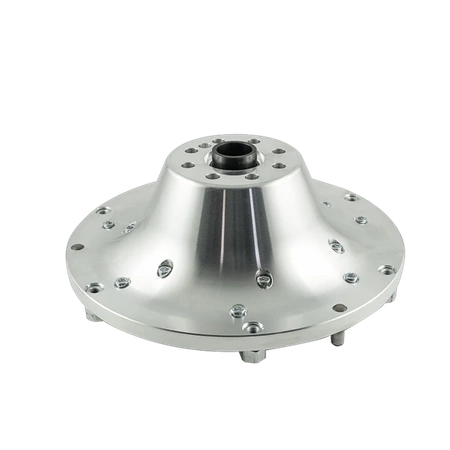

To mount the flywheel, it is necessary to use the flexplate from the automatic Mercedes-Benz version (OE 111-030-07-12). The clutch fork should be mounted on the lower release bearing position (in case of a two-position bearing).

FAQ

1. Which starter motor should be used with the PMC Motorsport Mercedes-Benz M104 - BMW adapter?

For the adapter installation, the Mercedes-Benz M104 OE starter motor must be used.

2. Which ring gear should be used for the PMC Motorsport Mercedes-Benz M104 - BMW flywheel?

When installing the PMC Motorsport Mercedes-Benz M104 - BMW flywheel, you must use the ring gear (flexplate) from the automatic Mercedes-Benz version (OE number: 111-030-07-12).

3. Can I use the PMC Motorsport Mercedes-Benz M104 - BMW gearbox adapter for ZF 8HP?

Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to change the gearbox to a ZF 8HP automatic, the standard flywheel must be replaced with an 8HP converter adapter (PMC Motorsport).

4. Which clutch can I use with the PMC Motorsport flywheel?

The Mercedes-Benz M104 - BMW flywheel was designed for the clutch pressure plate from BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Clutches from ACT / Spec / Tanaci are very often used with our kit (it is important that the custom pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, you must use a clutch disc with the appropriate spline, a dedicated release kit, and a slave cylinder.
