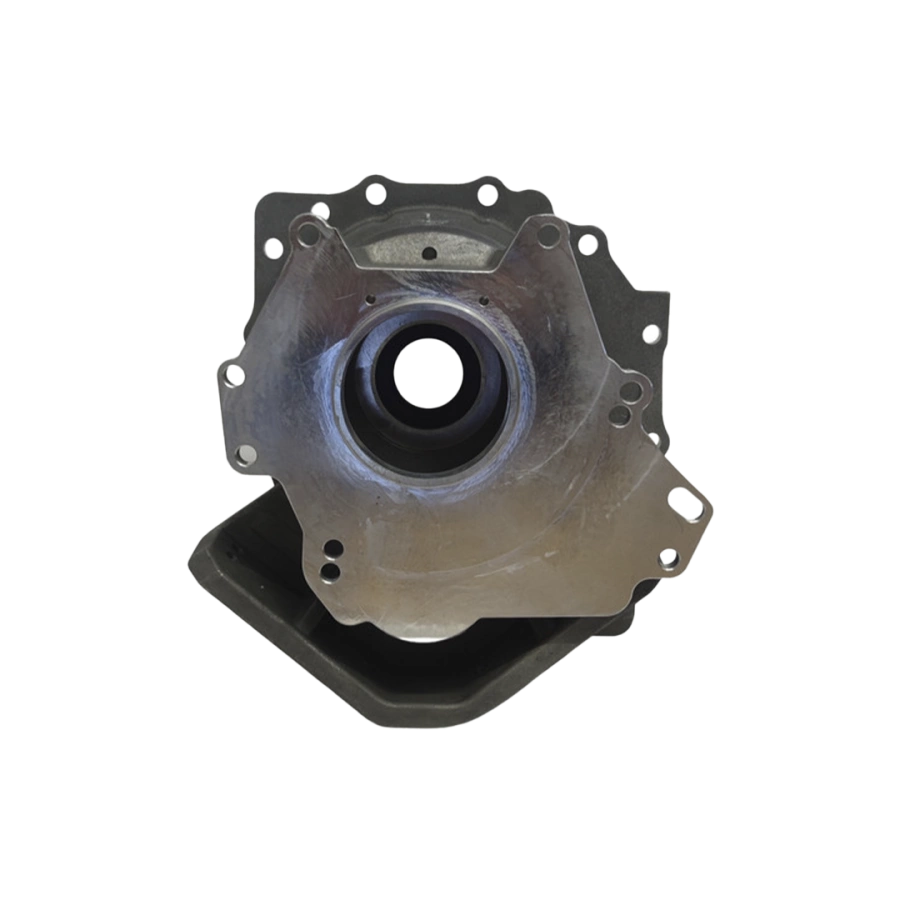

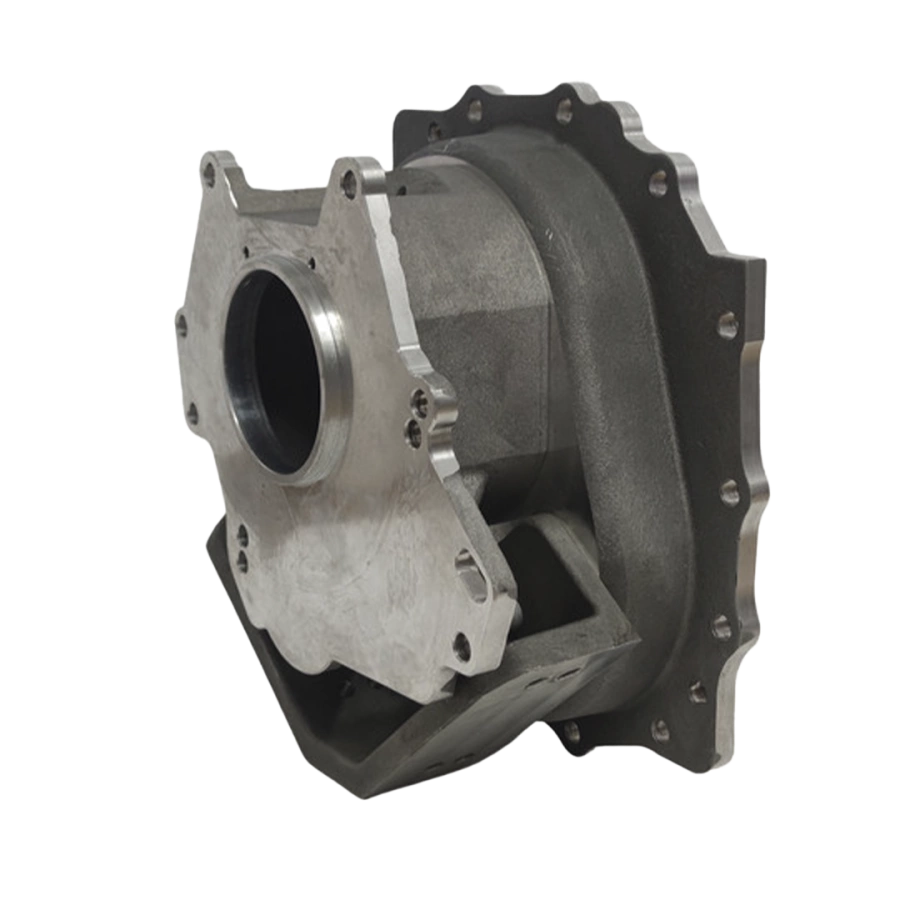

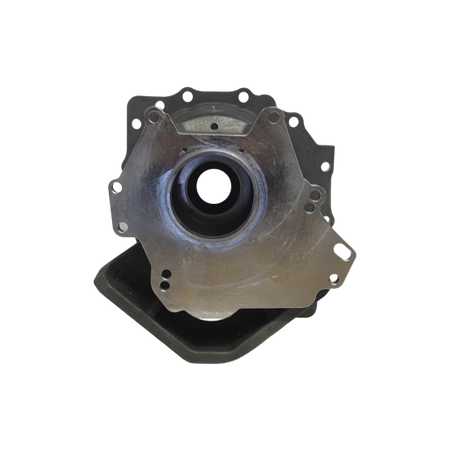

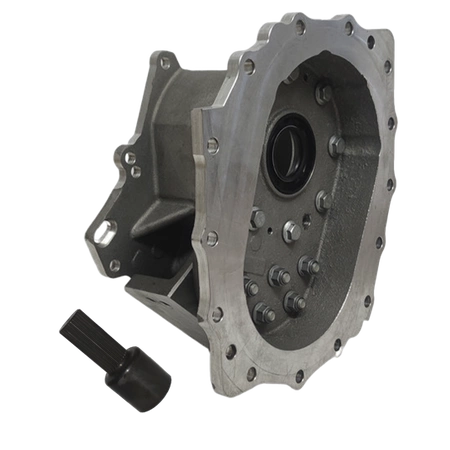

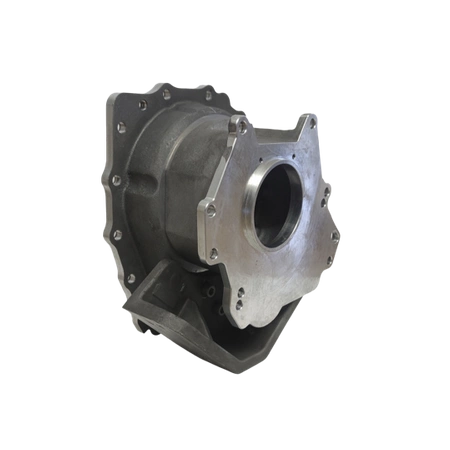

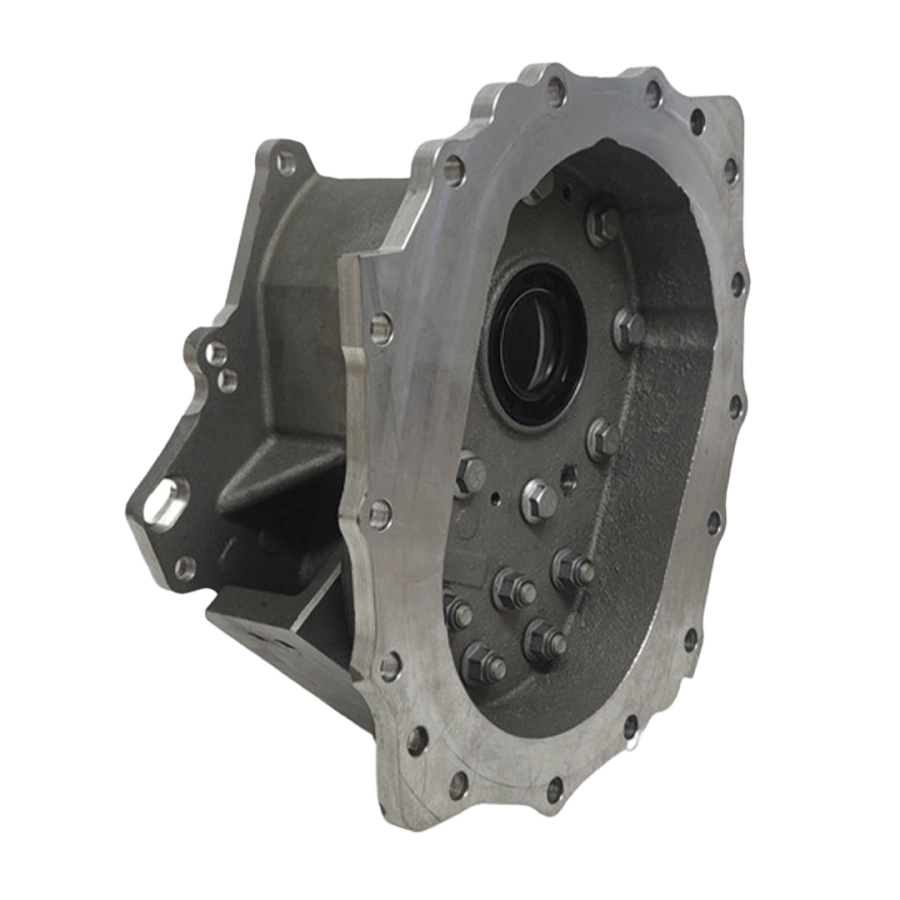

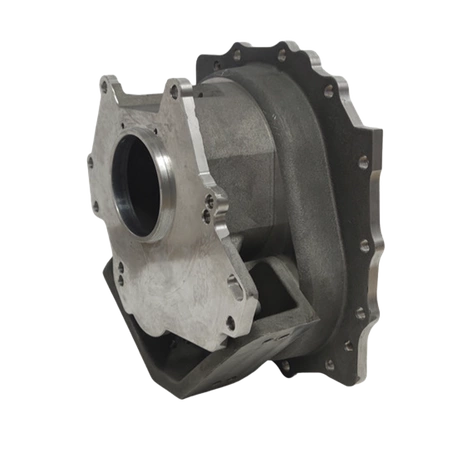

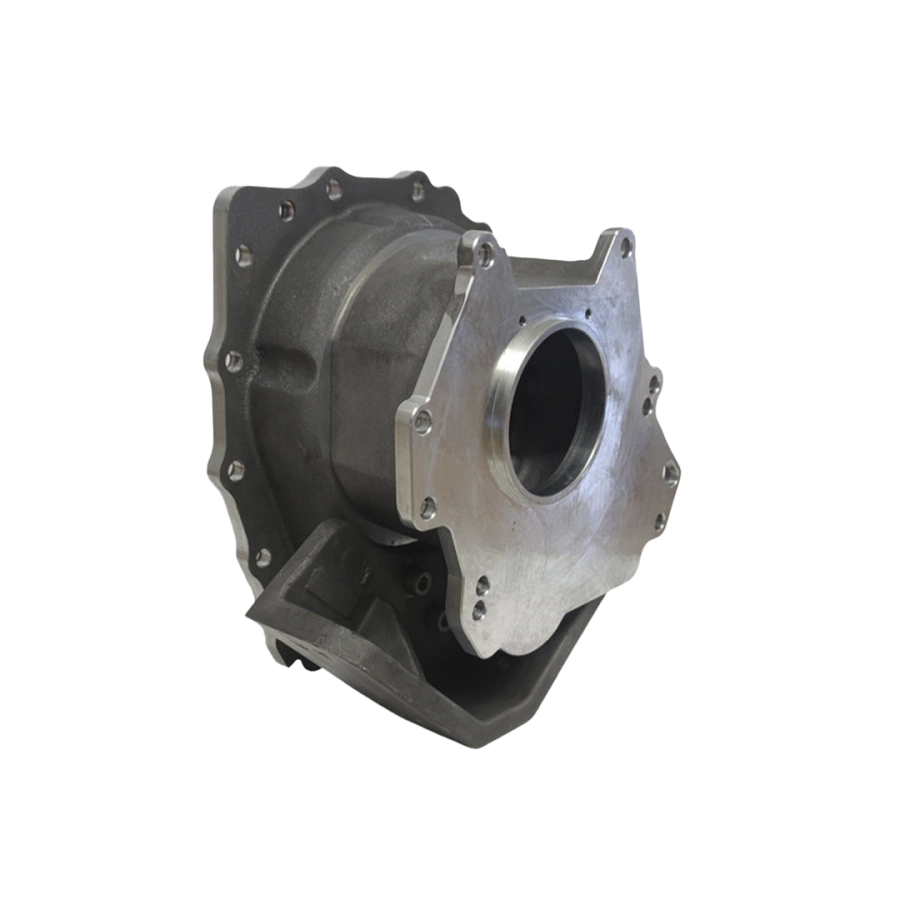

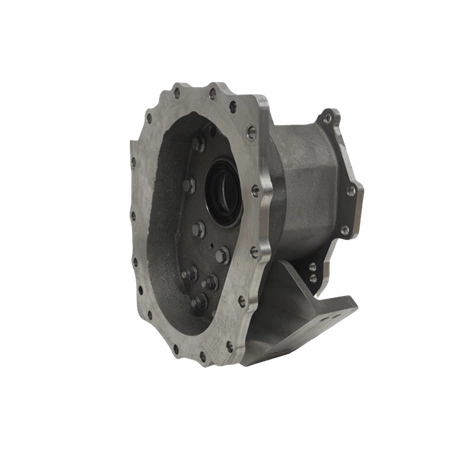

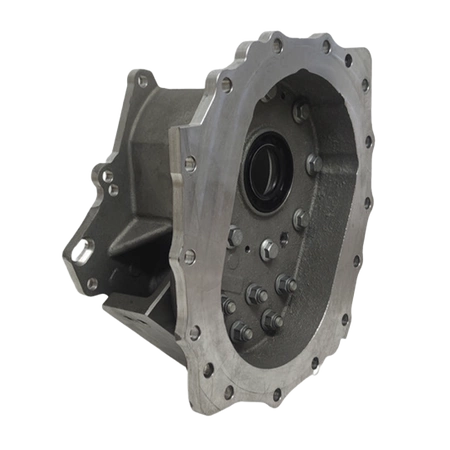

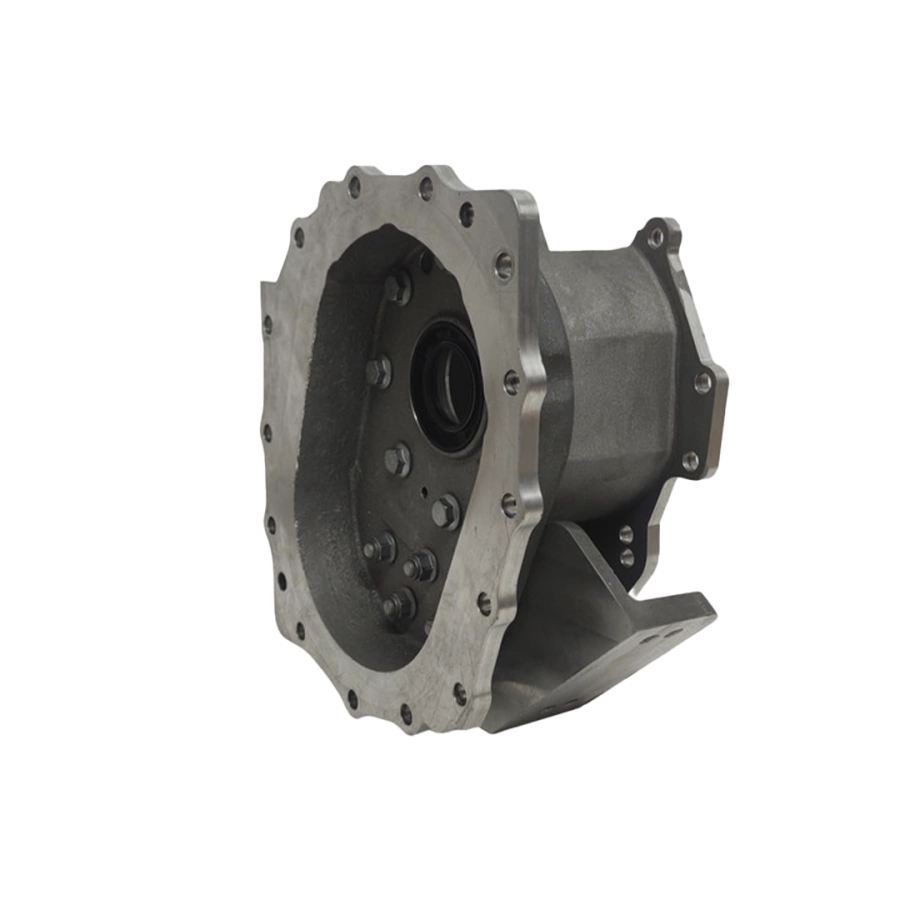

Transfer Case Adapter Nissan Patrol Y61 ZD30 3.0 / TD42 4.2 - BMW M57N ZF 6HP 6HP26X 6HP28X xDrive 6-speed

A complete installation kit that allows for the easy and quick connection of the Nissan Patrol Y61 ZD30 3.0 / TD42 4.2 transfer case with the ZF 6HP (xDrive) automatic transmission from BMW. This adapter ensures seamless compatibility of the gearbox with the Nissan Patrol Y61 model, enhancing the versatility and reliability of the entire drivetrain system.

The adapter is applicable for BMW M54 M57 M57N N54 N55 N57 engine swaps in the Nissan Patrol.

Compatible Transfer Case :

Nissan Patrol Y61

    Nissan Patrol Y61 ZD30 3.0

    Nissan Patrol Y61 TD42 4.2

Gearbox list :

BMW ZF (ZF Friedrichshafen) 6HP 8HP26X 6-speed xDrive

    BMW M57N M57N2 ZF 6HP GA6HP26X (Diesel)

BMW ZF (ZF Friedrichshafen) 6HP 8HP28X 6-speed xDrive

    BMW M57N2 ZF 6HP GA6HP28X (Diese)

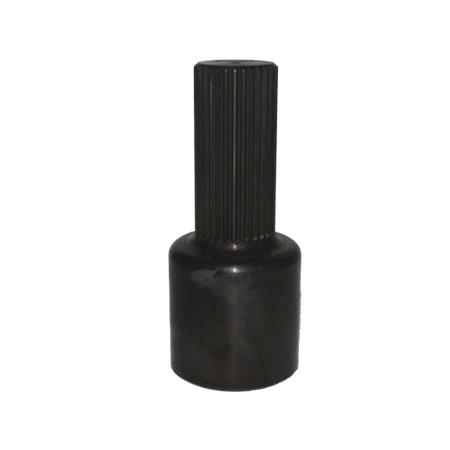

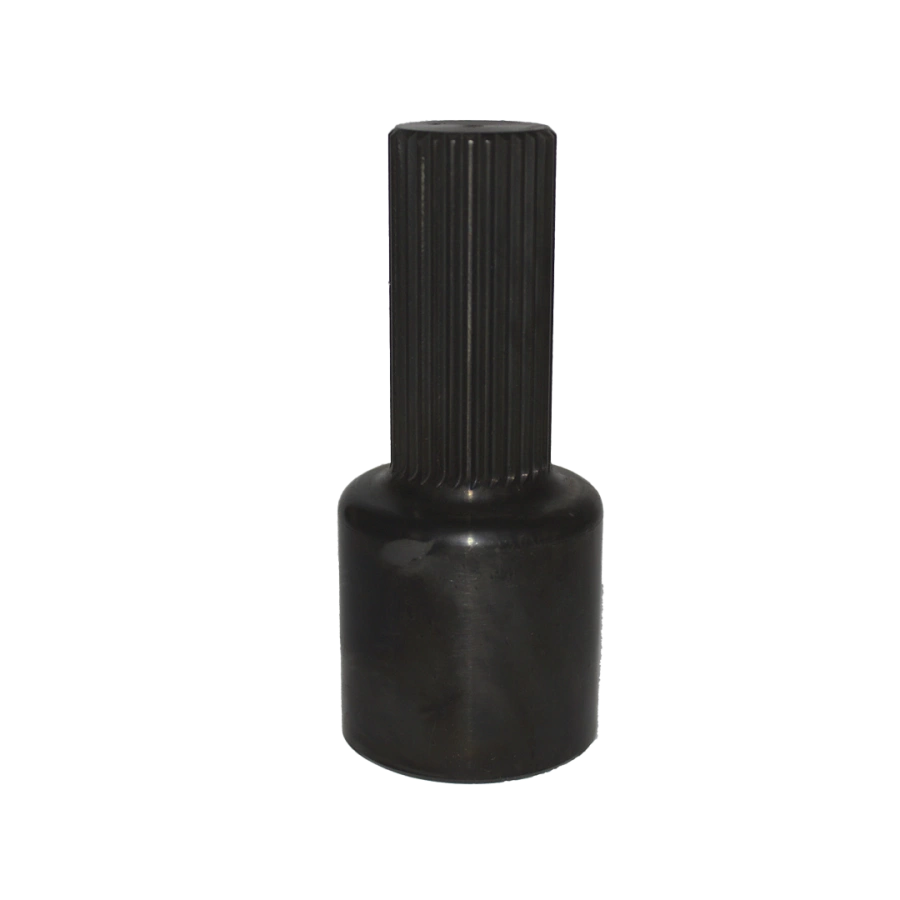

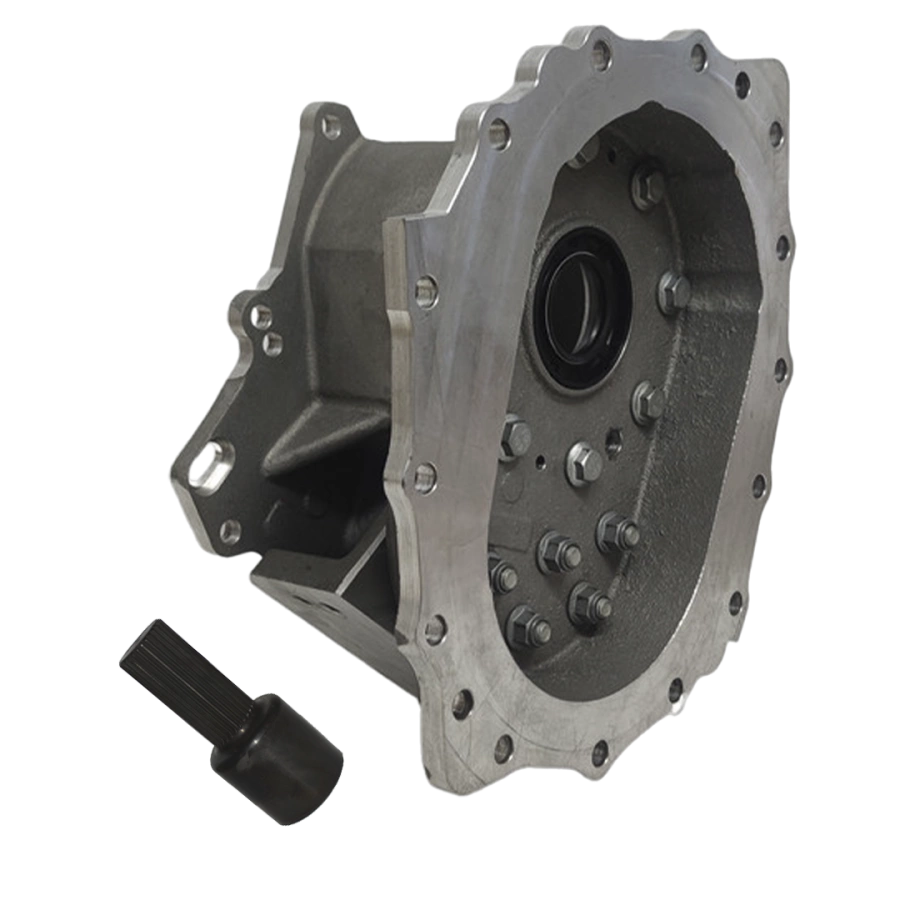

Installation using the original cross member from the 3.0 engine version and Nissan Patrol gearbox mounts or a cross member produced by IOD. The connecting shaft is made from high-quality, heat-treated chromium-molybdenum steel, ensuring durability and reliability. The low weight of the complete kit, including the BMW gearbox, adapter, and NISSAN transfer case, positively impacts vehicle performance. Easy installation and removal are particularly beneficial during transmission and drivetrain servicing. The adapter installation requires no modifications to the internal structure of the transfer case. Depending on the suspension setup and its adjustments, it may be necessary to adjust the length of the drive shafts. The transfer case is shifted 25mm to the rear compared to its original position.

The adapter thickness is 142mm (5.591 inches), providing robust and optimal connection between the gearbox and transfer case.

Made from high-quality aluminum casting

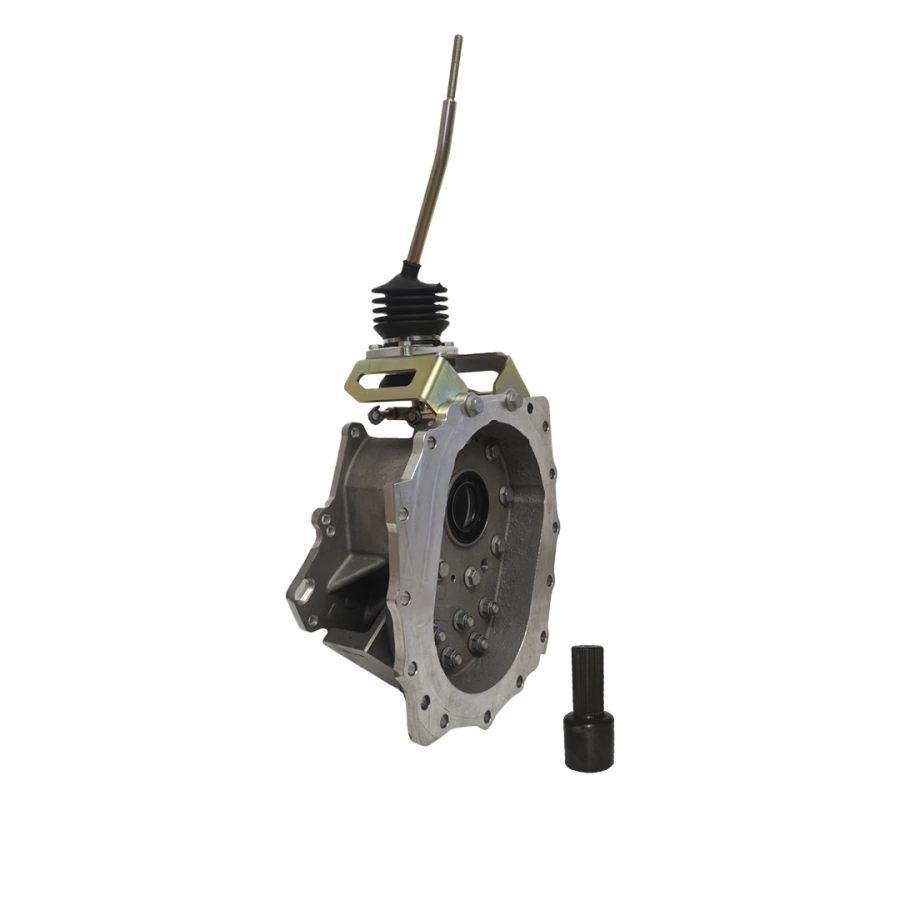

The kit includes:

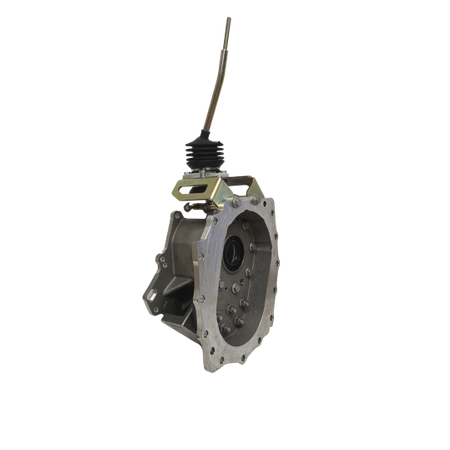

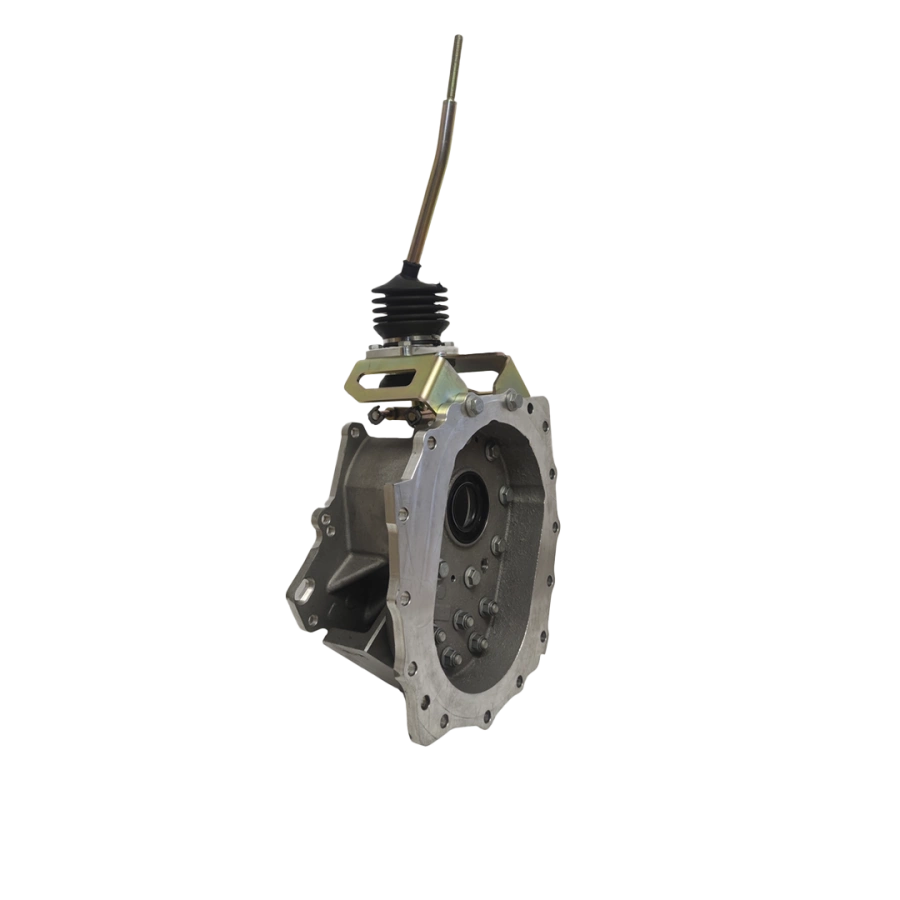

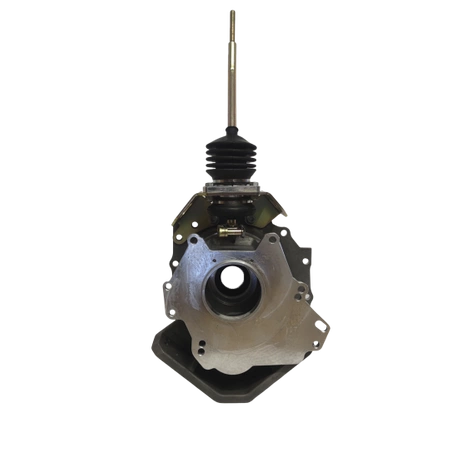

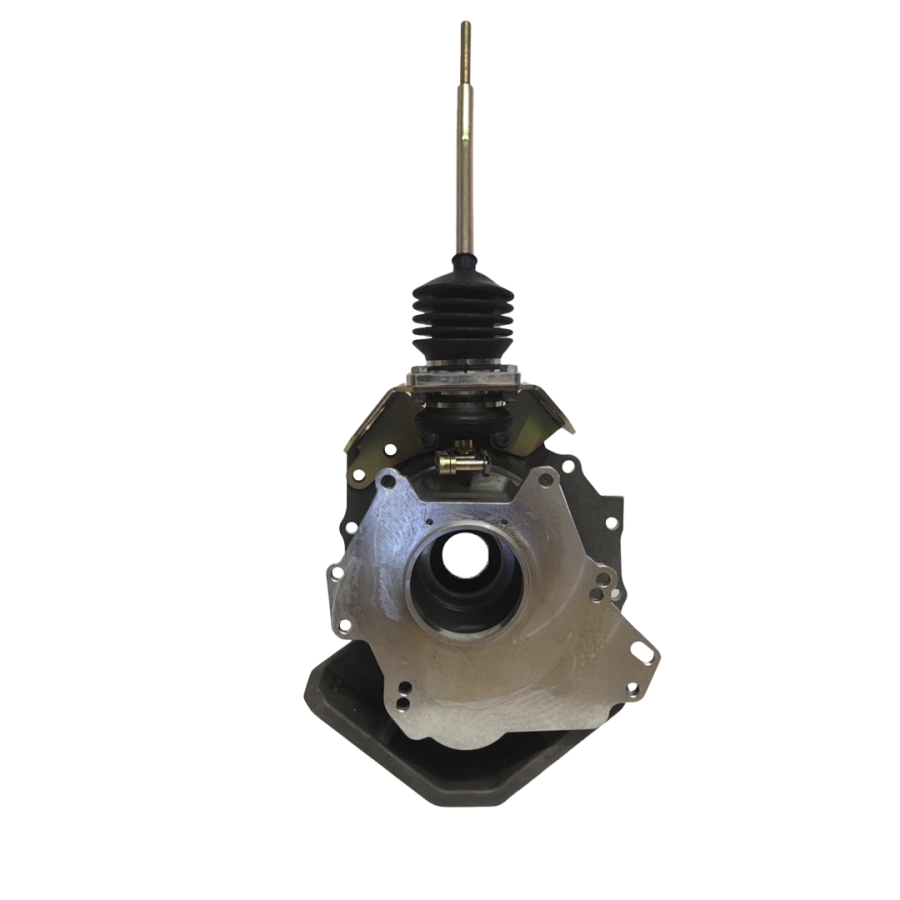

Gear shift lever with mounting and rubber covers,

Gear shift rod with fasteners,

Adapter,

Connecting shaft seal,

Set of mounting bolts,

Installation manual.

Symbol
AR-Y61-6HP
Dedicated to
Nissan Patrol Y61
Transfer Case Model
Nissan Patrol Y61 ZD30 3.0
Nissan Patrol Y61 TD42 4.2
Automatic gearbox
BMW M57N M57N2 ZF 6HP 6HP26X (xDrive)
BMW M57N M57N2 ZF 6HP 6HP28X (xDrive)
