PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion / clutch kit) Mitsubishi 4G63- BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45"

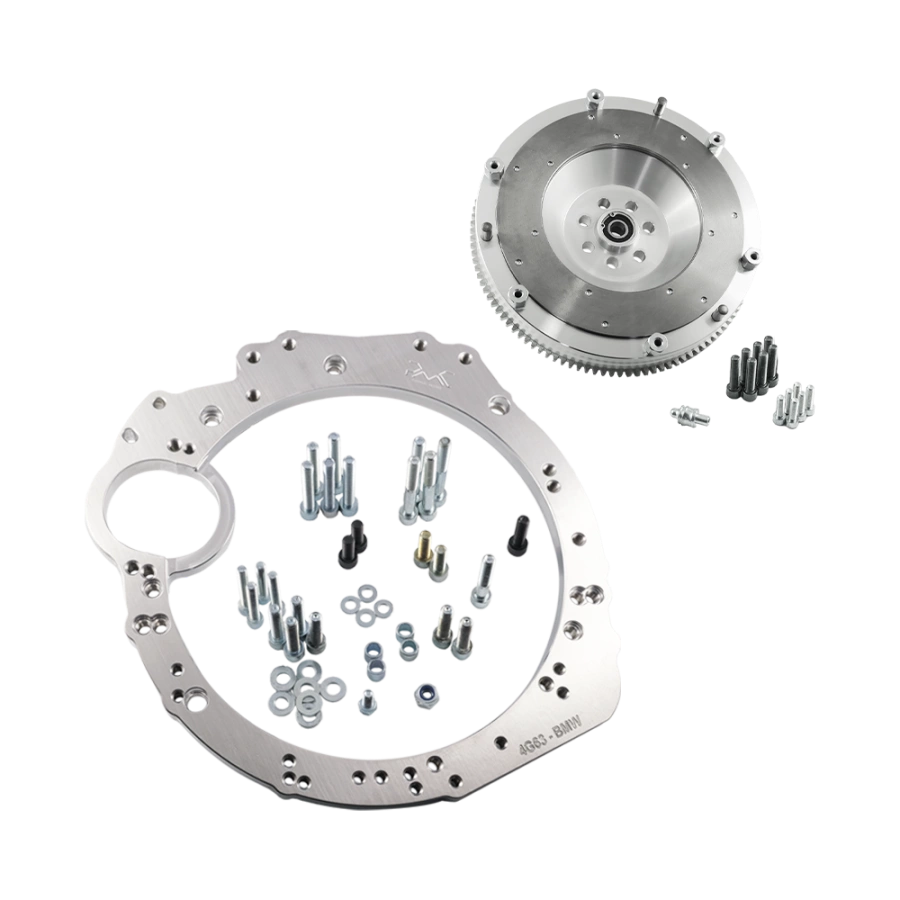

Aluminum clutch kit enabling the connection (swap / conversion) of Mitsubishi 4G63 engines with a manual ZF gearbox (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports popular manual gearboxes such as ZF 5, Getrag 420 G, Getrag 250 G.

Custom aluminum flywheel 240mm / 9.45" with interchangeable friction disc (FW001.00.02 spare part available on the website) - adapted for BMW M57 or BMW E46 M3 pressure plate (not compatible with M50 / M52 / M54 / S50 / e36 M3). Each PMC Motorsport flywheel is checked and balanced before shipment, the kit includes all necessary mounting bolts.

ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual transmission used in BMW E series with engines M50 M52 M54 ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) *Canada & USA only, M3.2i (S54)). The weight of the transmission is approximately 39 kg (86 lb),

Input shaft male type : 23x29-10N.

Why BMW ZF / Getrag Gearboxes?

Availability and price. The availability of millions of produced vehicles worldwide ensures easy access to spare parts. Parts and complete gearboxes are readily available at authorized service centers and in the secondary market.

Durability and reliability. BMW ZF/Getrag gearboxes have been successfully used in both amateur and professional motorsports for many years. They can handle high torque (some models exceeding 1000Nm) while ensuring great reliability. They are perfect for swaps in high-power projects intended for daily use.

Speed and convenience. Opting for the latest generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG provides ultra-fast gear shift times (0.2 seconds), enhancing both speed and convenience.

Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.

Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.

Made in EU. Our entire production and design department is located within the European Union.

Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.

Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.

0% VAT - for customers with active European VAT

Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.

Manual

!! PMC Motorsport parts are intended for motorsport use on racetracks. Parts are to be installed by professionals using appropriate tools in suitable workshops !!!

The installation manual includes a basic diagram for mounting the engine with the gearbox outside the vehicle.

The gearbox adapter is mounted to the engine first

The gearbox adapter and flywheel are made of aluminum and cast iron and are fully recyclable.

Parts we used during the design and test assembly process (recommended):

Engine: Mitsubishi 4G63

Gearbox: ZF S5D-320

Starter: TBMW M50-M54

Clutch master cylinder: BMW OE 21 52 6 773 670

Slave cylinder: Brembo E06003

Clutch kit:

Pressure plate: Sachs XTend 3000 951 877 / clutch disc Sachs: 1864 098 132

Custom PMC clutch fork pivot pin

Use the BMW M50-M54 starter

Two mounting holes of the ZF-310 ZF-320 Getrag 250 Getrag 420 gearbox should be ground down.

The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 24mm position.

Use a 240mm clutch disc that fits your gearbox.

Replace the original spherical pin (pivot pin) with the custom one from the kit.
