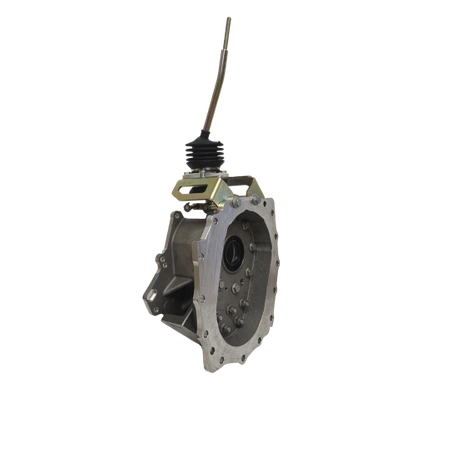

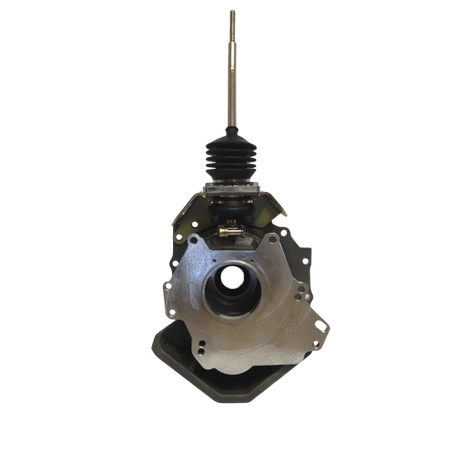

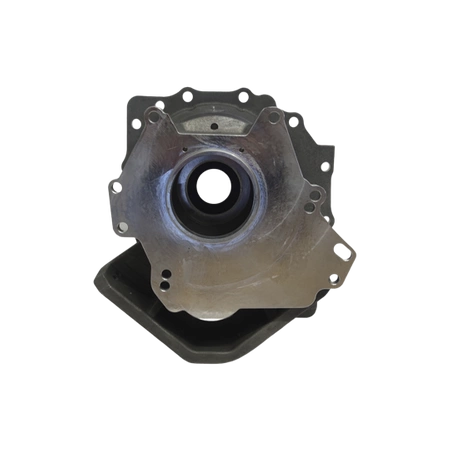

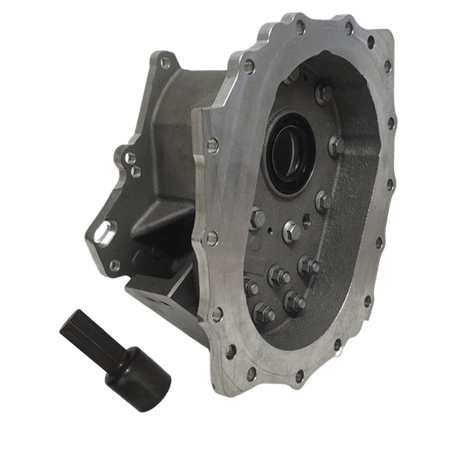

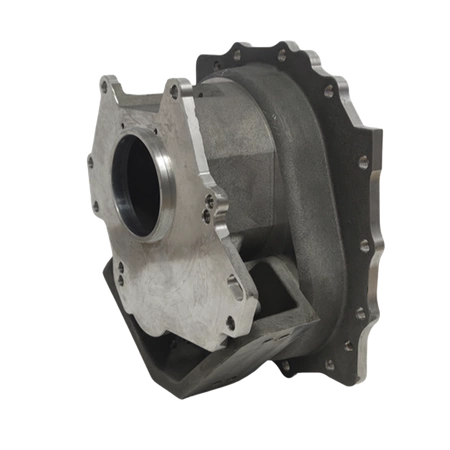

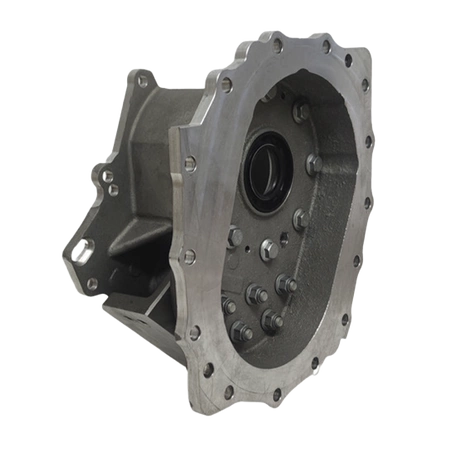

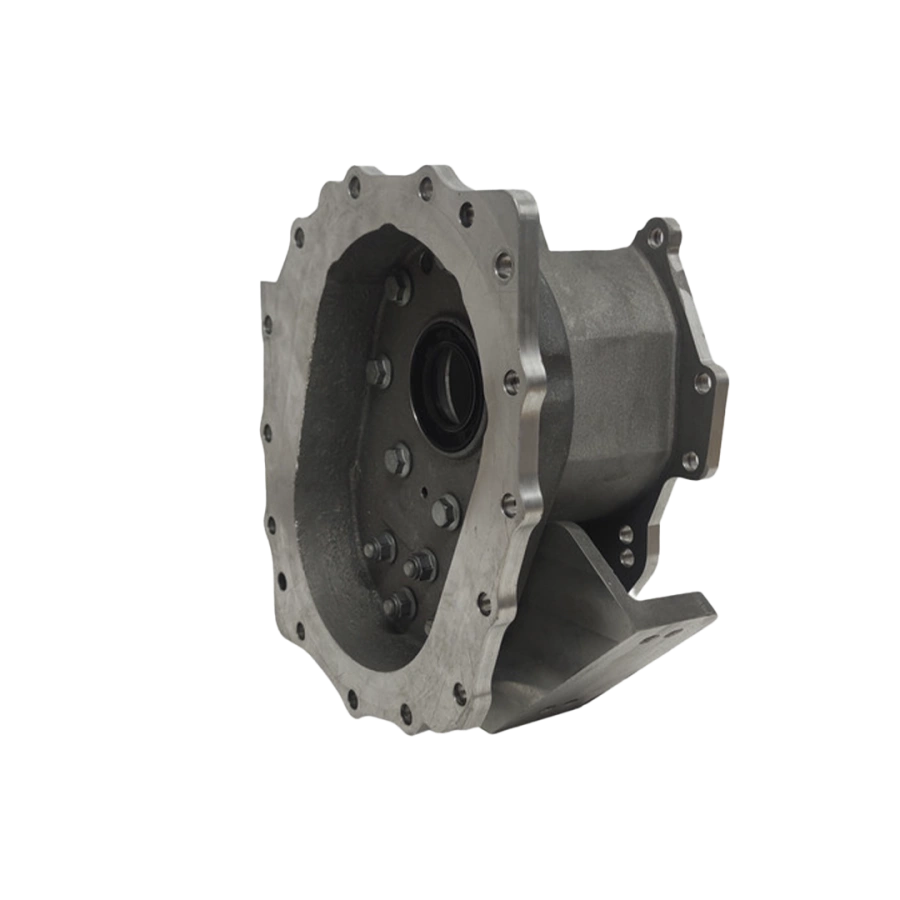

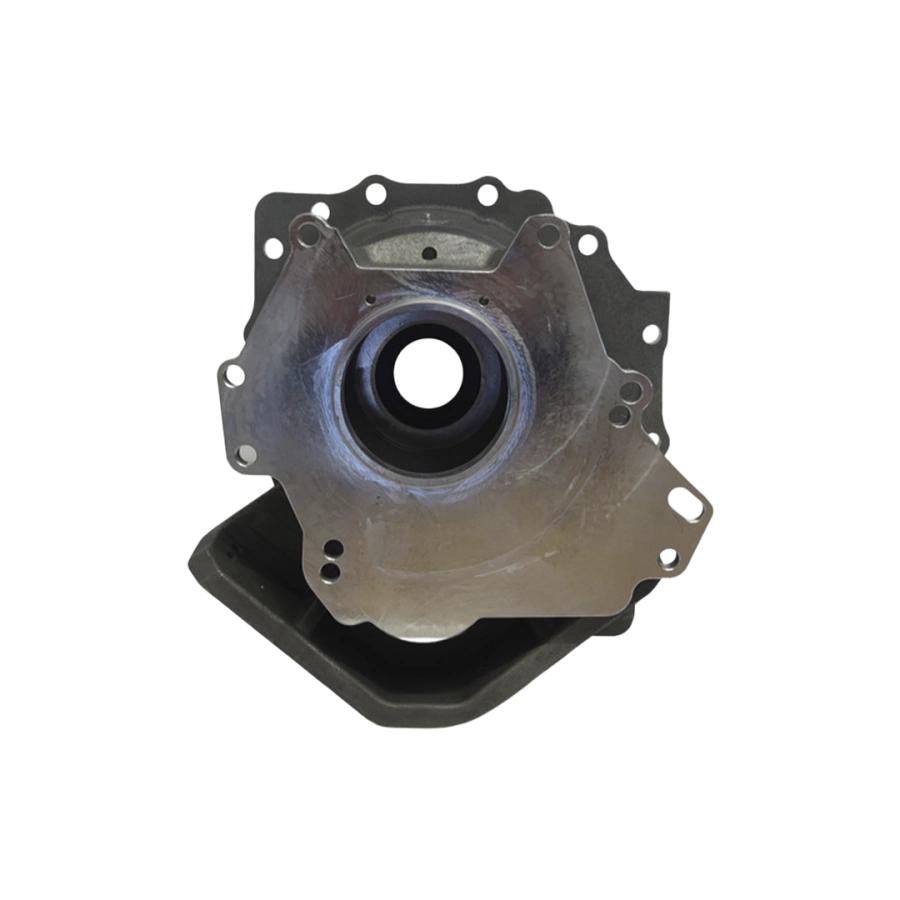

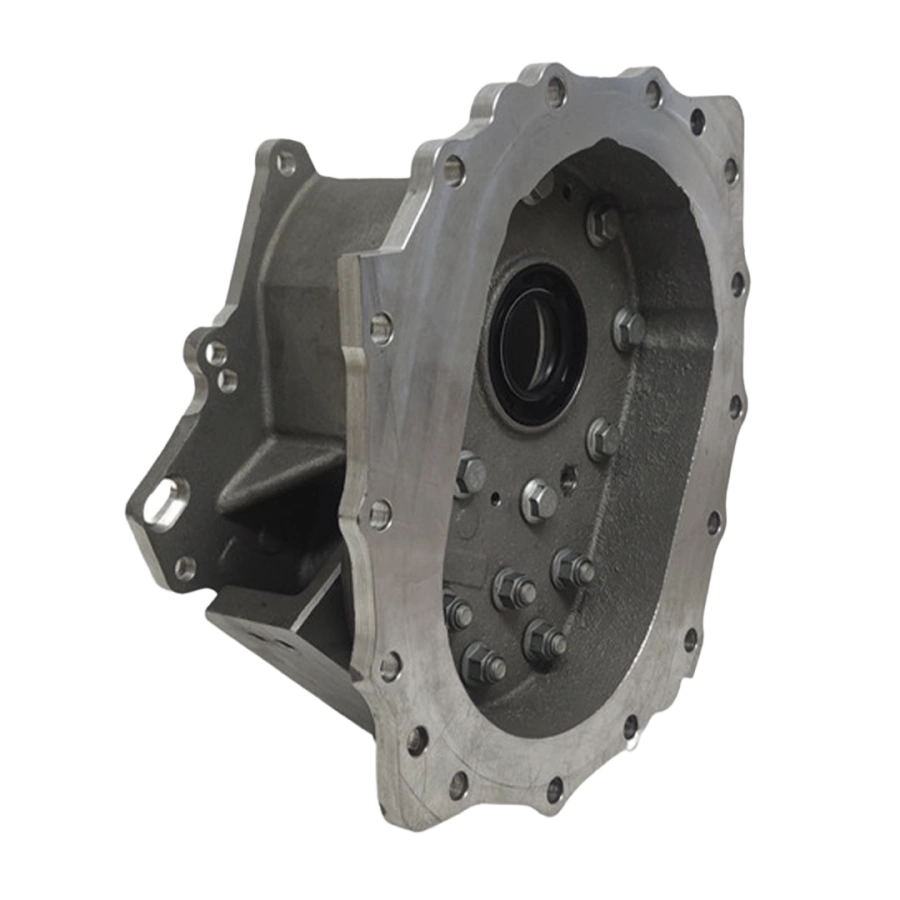

Transfer Case Adapter Nissan Patrol Y60 RD28 - Jaguar ZF 8HP (AWD)
- Nissan Patrol Y60 RD28 2.8 Transfer Case Adapter - Jaguar 8HP 8HP70X AWD 8-speed automatic
Transfer Case Adapter Nissan Patrol Y60 RD28 2.8 - Jaguar ZF 8HP 8HP70X 8-speed
Complete mounting kit allowing easy and quick connection of the Nissan Patrol Y60 RD28 2.8 transfer case to the ZF 8HP automatic transmission from Jaguar. This adapter enables seamless integration of the gearbox with the Nissan Patrol Y60 model, increasing the versatility and reliability of the entire drivetrain.
The adapter is applicable for SWAPs with Chevrolet LS engines in the Nissan Patrol.
|
Compatible transfer case : |
Nissan Patrol Y60 RD28 2.8 |
|
Gearbox list : |
Jaguar ZF (ZF Friedrichshafen) 8HP 8HP70X 8HP70Z 8-speed |

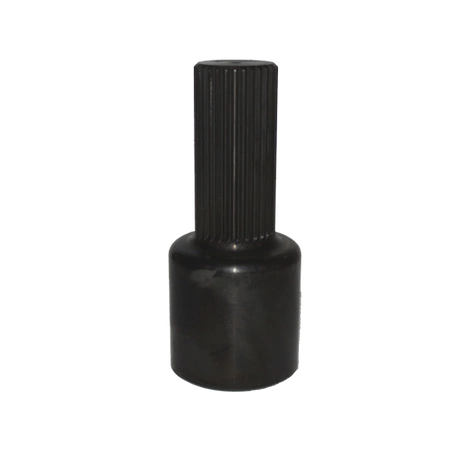

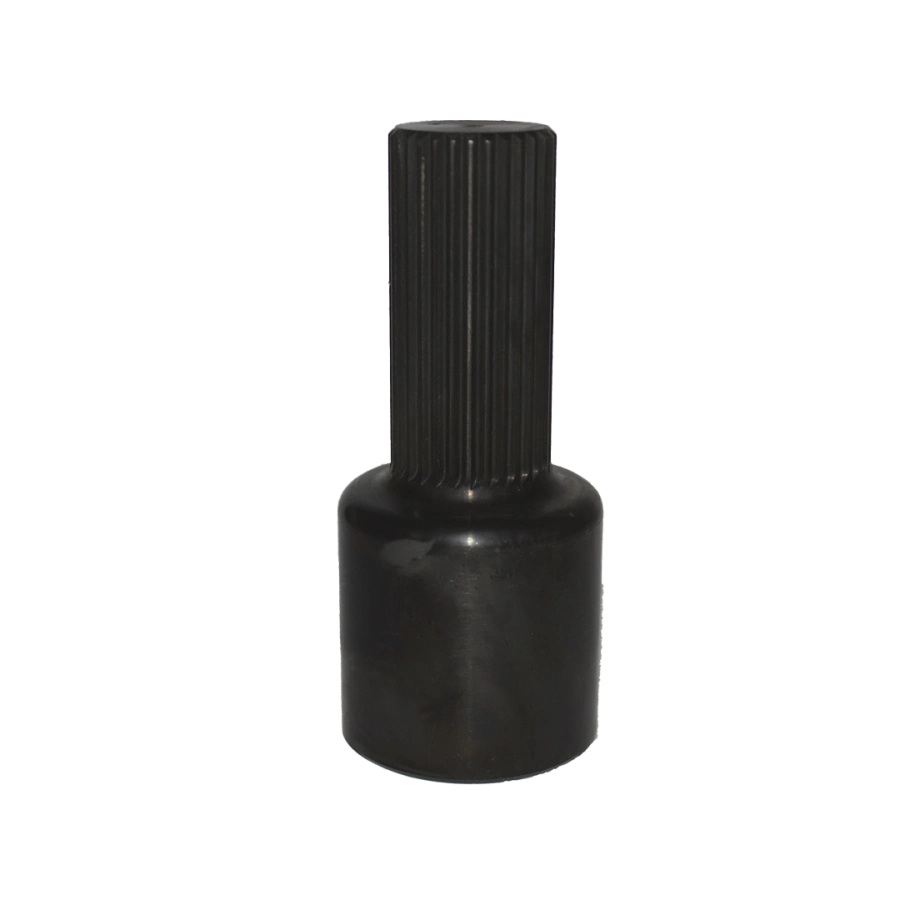

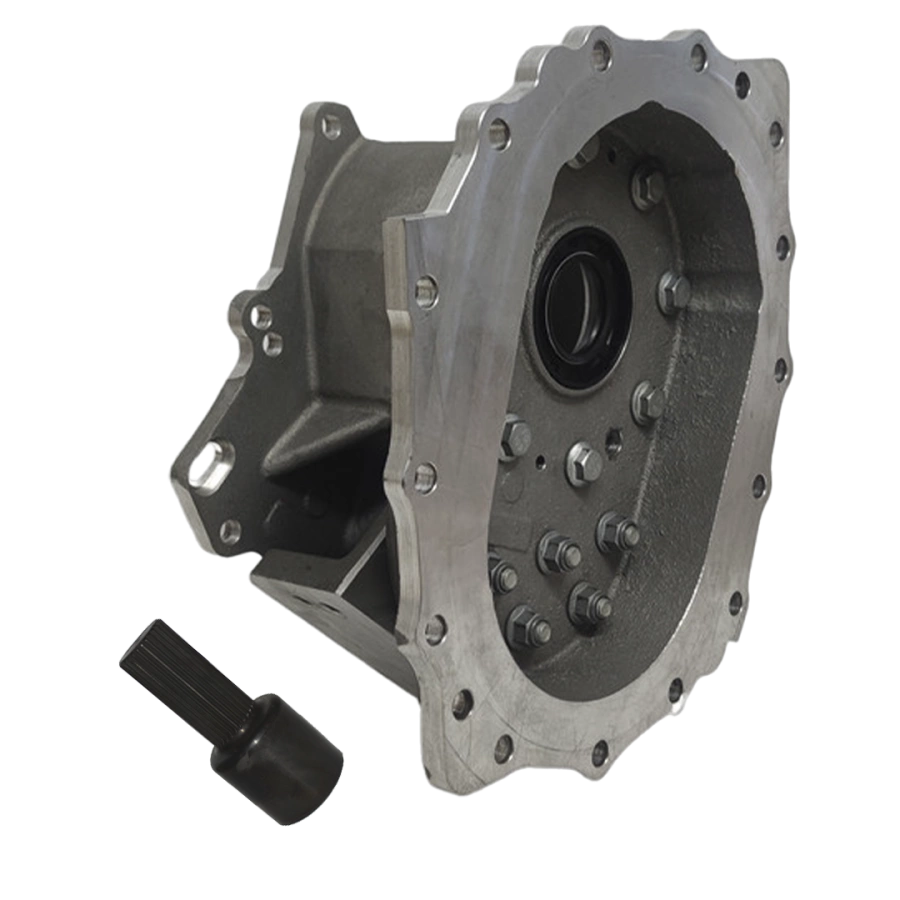

Installation using the original beam from the 3.0 engine version and the Nissan Patrol gearbox mounts or beams produced by IOD. The connecting shaft is made of high-quality chromium-molybdenum steel, heat-treated to ensure strength and reliability. The low weight of the complete kit, including the BMW gearbox, the adapter, and the NISSAN transfer case, positively impacts vehicle performance. Easy installation and removal, which is particularly beneficial when servicing the gearbox and drivetrain. The adapter is installed without the need to modify the interior of the transfer case. Depending on the suspension kit used and its adjustments, it may be necessary to adapt the length of the drive shafts. The transfer case is shifted 25mm rearward from its original position.
The adapter thickness is 142mm (5.591 inches), ensuring a solid and optimal connection between the gearbox and the transfer case.

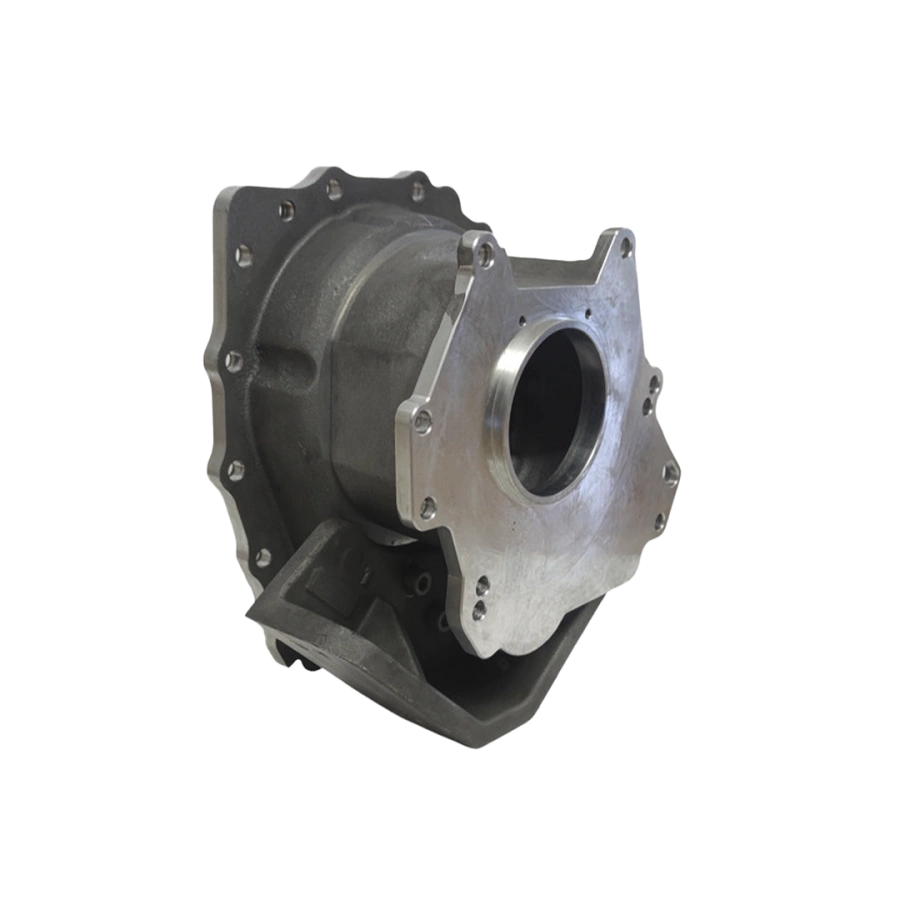

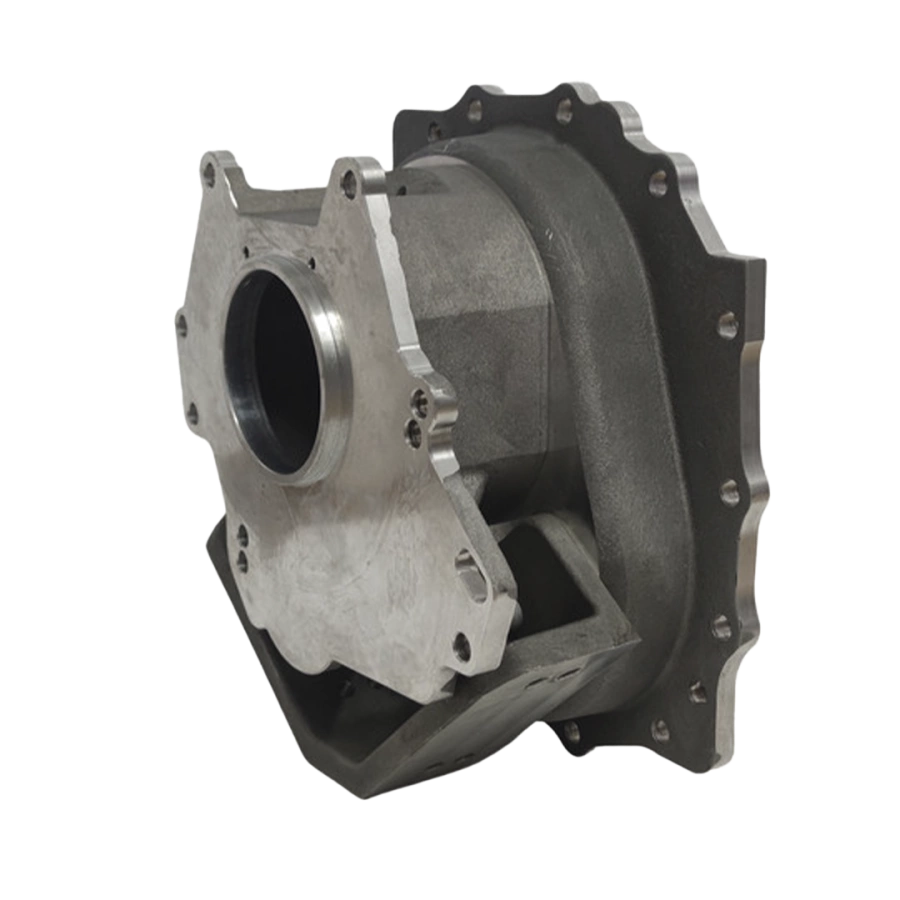

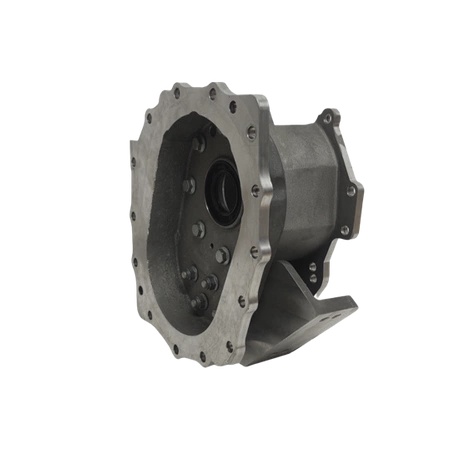

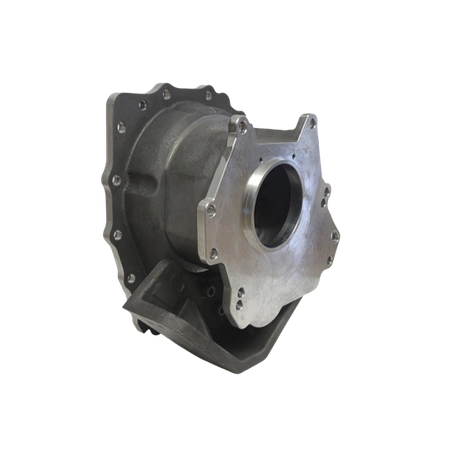

Adapter made from high-quality aluminum casting

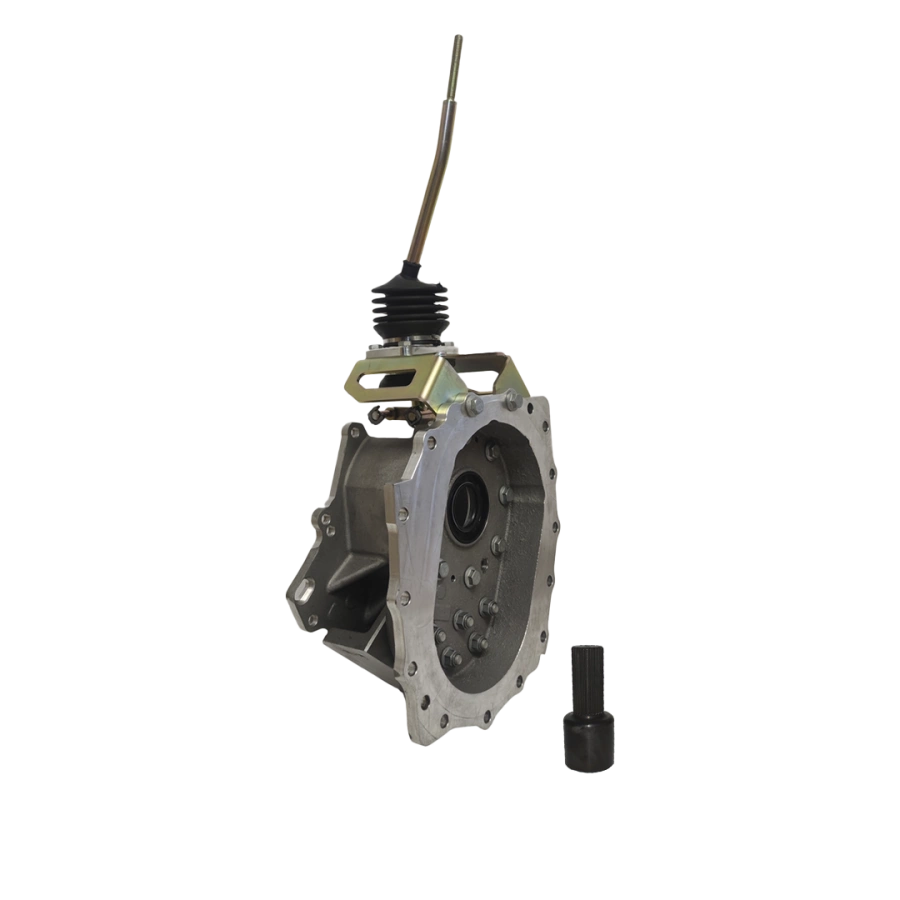

The kit includes:

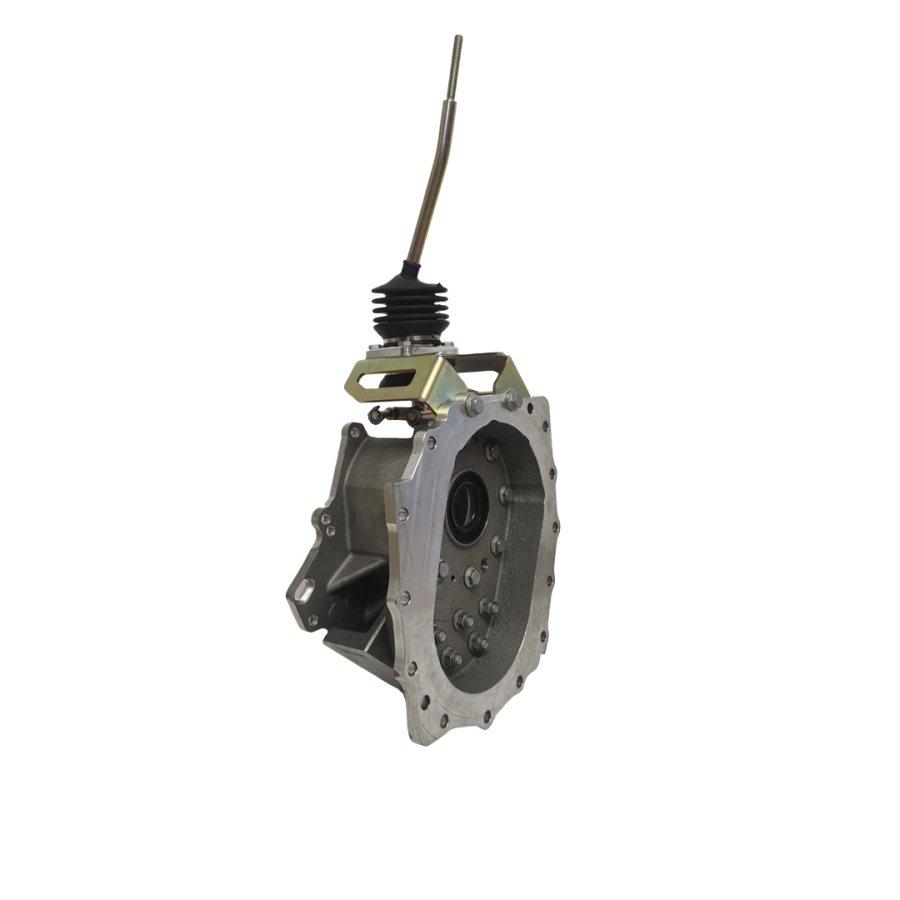

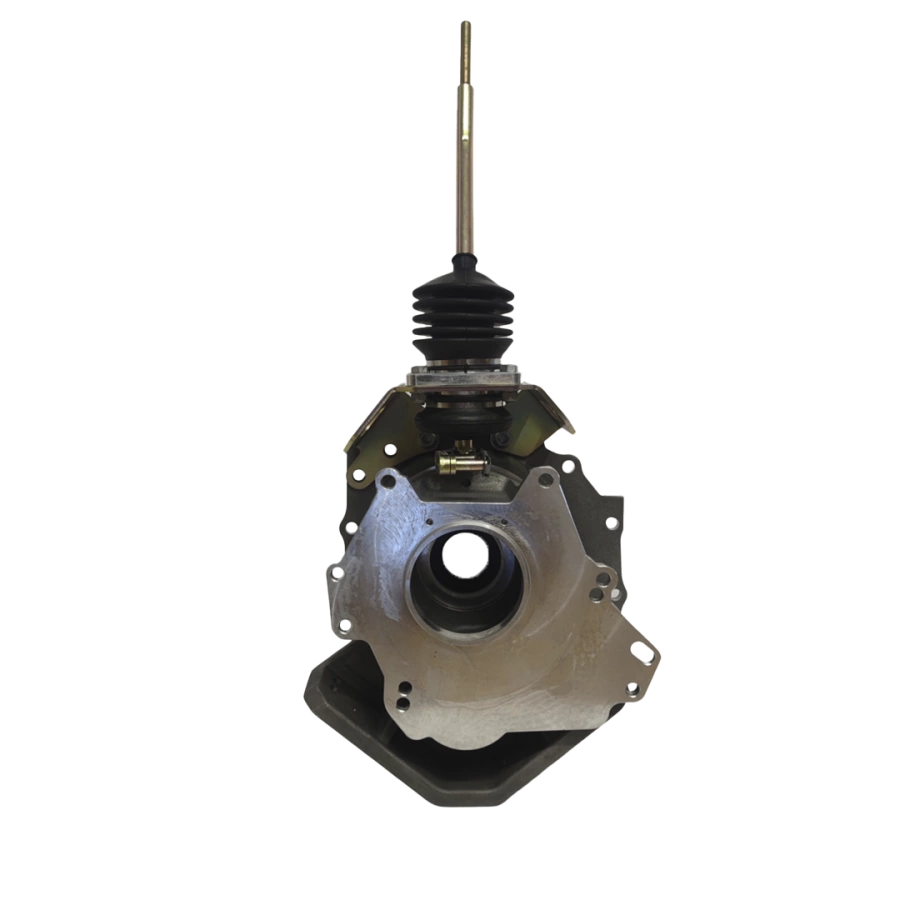

Gear lever with mount and rubber covers
Gear lever cable with security clips
Adapter
Connecting shaft seal
Mounting screw set
Installation instructions.
