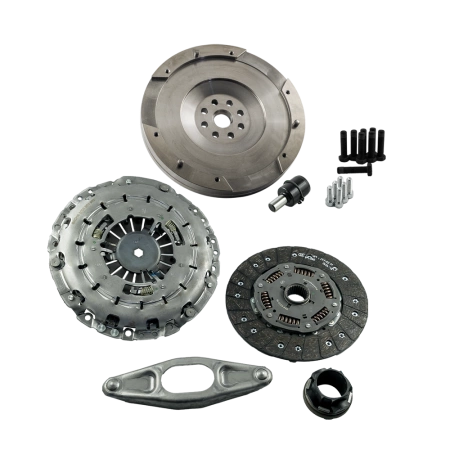

Stage 1 Clutch kit BMW E90 E91 E92 E93 330D [240mm 9.25"]
Custom Single-mass Flywheel BMW M57n M57n2 - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Clutch kit Sachs XTend 3000 951 952 / 3000951952
Stage 1 Clutch kit BMW E90 E91 E92 E93 330D [240mm 9.25"]
Custom Single-mass Flywheel BMW M57n M57n2 - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Clutch kit Sachs XTend 3000 951 952 / 3000951952

Stage 1 Clutch kit BMW E90 E91 E92 E93 330D [240mm 9.25"]

+ Add to compareAdd to shopping list
  • Complete clutch kit, solid / light cast iron flywheel, and Sachs XTend 3000951952 (pressure plate, organic clutch disc, and release module) for BMW 3 series  e90 e91 e92 e93 325D 330D

Size
uniwersalny
864,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from EUR16.55 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order EUR16.55 are for free.
Free delivery includes parcel delivery to a parcel machine
Smile is an IdoSell service

In a set

Custom Single-mass Flywheel BMW M57n M57n2 - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Custom Single-mass Flywheel BMW M57n M57n2 - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45" (1 pcs.)
599,00 EUR / pcs.
Clutch kit Sachs XTend 3000 951 952 / 3000951952
Clutch kit Sachs XTend 3000 951 952 / 3000951952 (1 pcs.)
265,00 EUR / pcs.

PMC Motorsport clutch kit for BMW 3 series  e90 e91 e92 e93 325D 330D M57n M57n2 [240mm 9.25"] - 650Nm / 479,25lb⋅ft

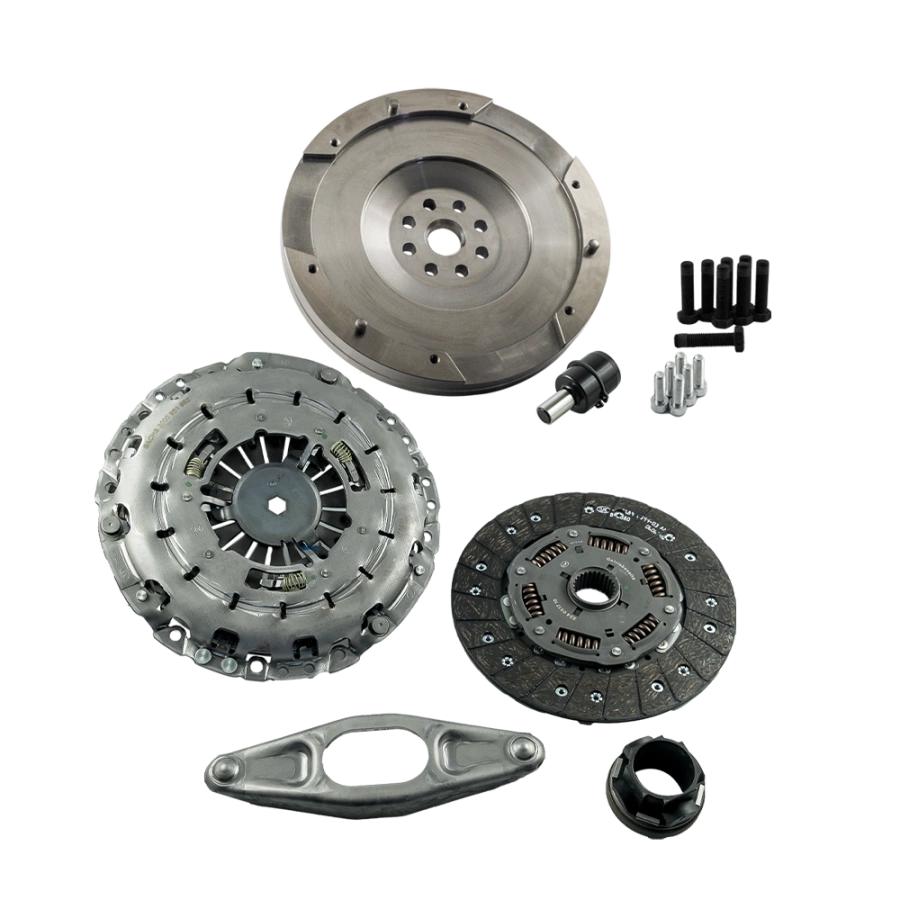

Planning to increase power in your BMW e9x 325D 330D? This kit is for you! Complete clutch kit, solid / light cast iron flywheel, and Sachs XTend 3000951952 (pressure plate, organic clutch disc, and release module).

Sachs XTend 3000951952 / 3000 951 952 is equipped with a pressure plate with self-adjusters and a clutch disc with spring damping - this compromise solution allows for the reduction of vibrations and noise from the drivetrain.

The use of a lighter / rigid flywheel improves engine responsiveness, which translates into better acceleration and quicker throttle response. Thanks to the lower rotating mass, the engine revs up faster, and power losses in the drivetrain are smaller, which may lead to a minimal increase in power at the wheels. However, it is worth remembering that such a modification may involve disadvantages, such as less smooth driving at low RPMs, increased vibrations and increased noise from the drivetrain.

PMC Performance Clutch - precise solutions for mechanical tuning and motorsport.

Tuning replacement for:

BMW OE

21 20 7 532 592 / 7532592



Kit dedicated to BMW M57n and M57n2 engines

Supported gearboxes:



ZF S6-53 GS6-53DZ HGU (THGU) BMW M57n M57n2 E90 E91 E92 E93 (including LCI versions) 325D 330D

ZF S6-53 GS6-53DZ HGK (THGK) BMW M57n M57n2 E90 E91 E92 E93 (including LCI versions) 325D 330D

xDrive ZF S6X53 GS6X53DZ HGW (THGW) BMW M57n2 E90 E91 E92 330xd

xDrive ZF S6X53 GS6X53DZ HGL (THGL) BMW M57n2 E90 E91 E92 330xd



! The kit requires the use of the ring gear / flywheel from the BMW E9x M57n2 automatic version – not included in the set !

Brand
PMC MOTORSPORT
Symbol
S-E90-SP
Model silnika BMW
BMW M57nMore

BMW M57N

  • BMW M57TUD30 160 kW (218 HP) 500Nm
  • BMW M57TUD30 535d 200 kW (272HP) 560Nm
  • BMW M57T2D25 145 kW (197 HP) 400 Nm
  • BMW M57T2D30 170 kW (231 HP) 500 Nm
BMW M57n2More

BMW M57N2

  • BMW M57N2 - 306D3 173 kW (235 HP) 520 Nm (5 E60/61 530d, X5 E70 3.0d, X6 E71 30dX)
  • BMW M57N2 - 306D5 210 kW (286 HP) 580 Nm (5 E60/61 535d, X5 E70 3.0sd i 3.5d, X6 E71 35dX)
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGU BMW E9x 330D M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU

Bell housing: 1067 401 161 / 1067401161

Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
6-speed ZF GS6-53DZ HGK BMW E9x 330D M57n2 More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK

Bell housing : 1067 401 161 / 1067401161

Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
6-speed ZF GS6X53DZ HGW BMW E9x 330xD M57n2 xDrive
6-speed ZF GS6X53DZ HGL BMW E9x 330xD M57n2 xDrive
Clutch Set
Set with Clutch
Yes
Max torque
650Nm / 479,25lb⋅ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included
Sachs XTend 3000 951 952 (M57N M57N2)
Self-adjusting
Yes
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Included
Clutch fork required
Included
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
BMW OE
Flexplate / ring gear / Drive plate required
BMW OE 11 22 7 788 746
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Drift
Daily
Tighten the flywheel to the specified torque [Nm / lb⋅ft ]
120Nm 88,5 ft·lb + Glue
Flywheel weight
13,5 kg / 29,76lb
Replaceable friction surface
No
Set includes
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Clutch kit Sachs XTend 3000 951 952
