Drift Stage 1 Mercedes-Benz M112 M113 - 5-speed manual BMW M57 ZF GS5-39DZ - 240mm / 9.45"

+ Add to compareAdd to shopping list

• PMC Motorsport Drift Stage 1 – Clutch Kit Mercedes-Benz M112 V6 / M113 V8 – BMW M57 ZF GS5-39DZ E39 525d 530d / E46 330d 5-Speed Manual – 240 mm / 9.45" – BMW 240 mm Pressure Plate without Self-Adjustment – max. 650 Nm / 479 lb⋅ft

Max torque

Adapter Kit ONLY 240mm / 9.45'' (single disc)650Nm / 479,25lb⋅ft650Nm / 479,25lb⋅ft700Nm / 516,12 lb⋅ft800Nm / 589,9lb⋅ft800Nm / 589,9lb⋅ft

Size

uniwersalny

Regular price: (Discount %)

1 238,00 EUR

incl. VAT / 1set

List price:

You can buy for pts.

12345 more

of

Add to cart

Notify of availability

Product sold out

You will receive an email notification from us when the product is available again.

Your e-mail address

Notify about availability

Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

Express checkout 1-Click(without registration)

Contact the shop staff, in order to estimate time of preparing this product for shipment.

The product is available in very small quantities

Shipment

Cheap and fast delivery

14 days for easy returns

This product is not available in a stationary store

Safe shopping

After purchase you will receive pts.

In a set

Gearbox Adapter Plate Mercedes-Benz M112 M113 M137 - Manual BMW ZF5 GS5-39DZ GS6-53DZ GS6-53BZ / 8HP / DCT (1 pcs.)

399,00 EUR / pcs.

Product unavailable.

Product available in smaller quantities. Buy outside the set

Clutch set for BMW M57 ZF GS5-39DZ 240mm (1 pcs.)

269,00 EUR / pcs.

Product unavailable.

Product available in smaller quantities. Buy outside the set

Flywheel Mercedes-Benz M113 - BMW E39 530D M57 GS5-39DZ 5-speed - 240mm / 9.45" (1 pcs.)

570,00 EUR / pcs.

Product unavailable.

Product available in smaller quantities. Buy outside the set

PMC Motorsport Drift Stage 1 – Clutch Kit Mercedes-Benz M112 V6 / M113 V8 – BMW M57 ZF GS5-39DZ E39 525d 530d / E46 330d 5-Speed Manual – 240 mm / 9.45" – BMW 240 mm Pressure Plate without Self-Adjustment – max. 650 Nm / 479 lb⋅ft

Important: Before purchasing, please check the part number of the automatic starter ring gear / flexplate in your Mercedes-Benz engine. M112 / M113 engines are equipped with two types of flexplates – this adapter is compatible exclusively with the Mercedes-Benz OE 112 032 02 47 flexplate.

Complete Drift Stage 1 clutch kit designed to mate (swap / conversion) the Mercedes-Benz M112 V6 (2.4, 2.6, 2.8, 3.2, 3.7) or M113 V8 (4.3, 5.0, 5.4, and 5.4 Kompressor) engine with the ZF GS5-39DZ 5-speed manual gearbox sourced from BMW diesel M57 models (E39 525d / 530d, E46 330d). The kit includes a gearbox adapter plate, a custom PMC Motorsport flywheel, a BMW 240 mm clutch pressure plate without self-adjustment (non-SAC), a 240 mm organic clutch disc with 28x35-10N spline, and a clutch release module (release bearing with clutch fork). The maximum torque capacity of the kit is 650 Nm (479 lb⋅ft). The heavy-duty GS5-39DZ transmission (rated for 1000+ Nm) paired with the Drift Stage 1 kit is ideal for drifting as well as daily driving – the non-self-adjusting pressure plate ensures consistent pedal response and linear engagement, while the organic disc provides smooth operation.

Planning a Mercedes-Benz M112 / M113 engine swap into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a proven, reliable engineering solution. Replace an automatic transmission with a robust BMW manual gearbox and unlock new potential.

PMC Motorsport adapters not only facilitate automatic-to-manual conversions in cars powered by the Mercedes-Benz M112 / M113 engine, but also streamline M112 / M113 swaps into BMW chassis and other platforms such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

---

Aluminum gearbox adapter plate engineered to simplify transmission installation as much as possible, eliminating radical modifications such as cutting off the bellhousing – only preparing the starter motor opening is required. Custom flywheels dedicated to PMC Motorsport adapters are machined from aluminum with a replaceable friction surface, fully inspected and balanced prior to dispatch. Flywheel engineered for a 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE). Flywheel weight: 5.45 kg (12.0 lbs), adapter thickness: 20 mm (0.78").

PMC Motorsport gearbox adapter plates represent precision engineering and premium quality. A 3D scanning-based design process and CMM measuring arm quality inspection ensure an exact fit. Manufacturing on state-of-the-art CNC machinery guarantees flawless concentricity and alignment between engine and transmission, which is critical for drivetrain longevity.

---

Our entire production facility and R&D department are located in Poland. Over 90% of all components are manufactured directly in-house.

Selection Assistance & Aftersales Support – PMC Motorsport Support

The PMC Motorsport team will help you choose the right kit for your build. Should any technical questions arise during assembly, we provide comprehensive technical support. Feel free to reach out via our contact form.

Individual Component Purchase

We offer every individual component of our kits available for separate purchase.

Thousands of manufactured adapter kits and satisfied customers worldwide.

PMC Motorsport adapters are utilized in daily drivers as well as professional competitive motorsport builds.

From day one, quality has been our cornerstone. Each part is inspected after every production stage. Every subassembly we manufacture is laser-engraved with its unique serial number.

Quality certified to PN-EN ISO 9001:2015 standards.

We ship our products to virtually every destination worldwide. European Union countries (excluding islands) and the United Kingdom benefit from automated shipping calculation at checkout. For countries not automatically listed, our team will calculate the shipping rate upon order placement and update your invoice. You will receive an email detailing the total order cost.

NOTE: Shipping quotes and product prices do not include import duties, local taxes, or customs clearance fees that may apply depending on the destination country.

0% VAT

0% VAT is available for business customers with an active EU VAT ID (B2B option outside Poland) and for export orders outside the European Union.

Upon positive verification in the VIES system, we update your order by removing the calculated VAT.

Compatible engines:	Mercedes-Benz M112 / M113 Mercedes-Benz M112 2.4 Mercedes-Benz M112 2.6 Mercedes-Benz M112 2.8 Mercedes-Benz M112 3.2 Mercedes-Benz M112 3.2 Kompressor Mercedes-Benz M112 3.7 Mercedes-Benz M113 4.3 Mercedes-Benz M113 5.0 Mercedes-Benz M113 5.4 Mercedes-Benz M113K 5.4 Kompressor
Compatible gearboxes:	ZF S5-39 GS5-39DZ 5-speed ZF GS5-39DZ THBA – BMW M57 E39 530d ZF GS5-39DZ THBG – BMW M57 E39 530d ZF GS5-39DZ THBC – BMW M57 E39 525d 530d, E46 330d ZF GS5-39DZ THBK – BMW M57 E39 525d, E46 330d ZF GS5-39DZ THBM – BMW M57 E39 525d, E46 330d

---

Additional Information

PMC Motorsport components are dedicated to motorsport and closed-circuit racetrack use.

Parts are designed for professional installation by technicians experienced in engine swaps and vehicle modifications – in dedicated workshop environments with appropriate specialized tools.

The adapter installation manual provides the foundational instructions necessary to mate the engine to the transmission outside the vehicle body.

Depending on the specific chassis, additional modifications may be required, such as custom engine mounts, gearbox crossmember adaptation, firewall clearance, transmission tunnel modifications, propshaft shortening/lengthening, etc.

Our adapter kits are manufactured from fully recyclable materials.

Installation Instructions

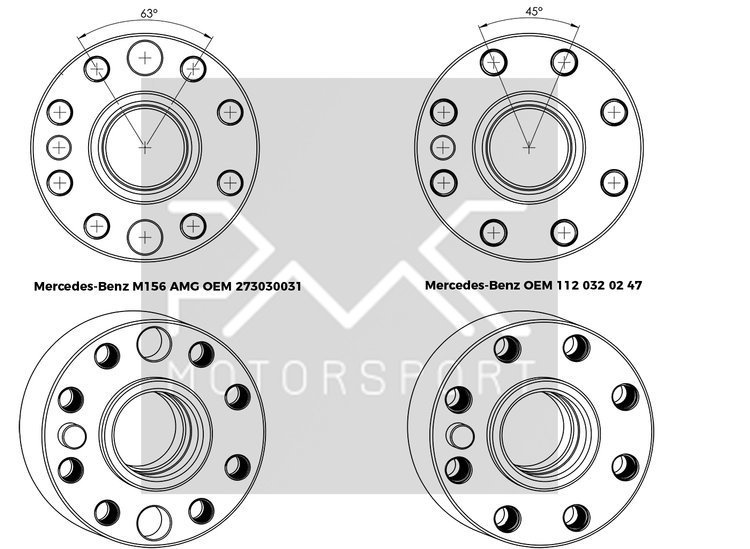

To mount the flywheel, it is necessary to use the automatic flexplate / starter ring gear from the Mercedes-Benz automatic version OE 112 032 02 47 (not included). Crankshaft bolts are included in the kit. An original Mercedes-Benz M112 / M113 starter motor (OE, not included) must be used to mount the adapter plate. Mount the included clutch release fork on the lower pivot position of the release bearing (if using a dual-position release bearing). Gearboxes for petrol engines (ZF-5, Getrag 250G / 420G) and diesel engines (GS5-39DZ) share the same bolt pattern but have a different tilt/mounting angle on the adapter plate – the GS5-39DZ gearbox must be bolted in the dedicated diesel position. If the gearbox sits at an incorrect angle after tightening, reposition and correct the assembly. The release bearing and clutch fork (clutch release module) are included in the kit. The clutch slave cylinder is not included – use a slave cylinder dedicated to your specific gearbox.

Frequently Asked Questions (FAQ)

Which engines is this kit compatible with?

With Mercedes-Benz M112 V6 (2.4, 2.6, 2.8, 3.2, 3.2 Kompressor, 3.7) and M113 V8 (4.3, 5.0, 5.4, M113K 5.4 Kompressor) engines that utilize the automatic starter flexplate / ring gear Mercedes-Benz OE 112 032 02 47. Because these engines were manufactured with two distinct flexplate versions, please verify the part number on your engine before ordering.

Which gearboxes does the kit fit?

With the 5-speed manual ZF GS5-39DZ transmission from BMW M57 diesel models in THBA, THBC, THBG, THBK, and THBM configurations (E39 525d / 530d, E46 330d). The input shaft features a 28x35-10N spline.

Does the gearbox bellhousing require cutting?

No. The adapter is specifically designed to eliminate cutting the bellhousing – only preparing the starter clearance opening is necessary.

What additional components are required for complete installation?

A clutch slave cylinder dedicated to your gearbox, an automatic starter flexplate Mercedes-Benz OE 112 032 02 47, and an original Mercedes-Benz M112 / M113 starter motor (see question below). These parts are not included in the kit.

Which clutch is included in the package?

A BMW 240 mm (9.45") clutch pressure plate without self-adjustment and a 240 mm sprung organic clutch disc with a 28x35-10N spline (10 teeth) for the ZF GS5-39DZ gearbox. The kit is completed by a clutch release module (release bearing with clutch fork).

What is the torque rating of the Drift Stage 1 kit?

The maximum torque capacity of this kit is 650 Nm (479 lb⋅ft).

Can I run an alternative clutch pressure plate?

Yes. The PMC Motorsport flywheel is engineered to accept BMW OE 240 mm pressure plates – from BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. High-performance aftermarket clutches from ACT, Spec, or Tanaci can also be fitted, provided the custom pressure plate matches the BMW OE flywheel pattern (M57 / M57N / M57N2 / N54 / B58). For the GS5-39DZ gearbox, you must use a 240 mm clutch disc with a 28x35-10N spline.

Which starter motor must be used?

An original Mercedes-Benz M112 / M113 (OE) starter motor. The starter motor is not included in the kit.

Can I use this adapter with a 6-speed GS6-53DZ / GS6-53BZ gearbox?

Yes. The PMC Motorsport adapter plate itself is universal and fits the majority of BMW gearboxes (applies to adapters produced after 2022). If you switch to another BMW gearbox in the future, you only need to change the flywheel and clutch disc.

Is this adapter compatible with the ZF 8HP automatic transmission?

Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW transmissions (applies to adapters produced after 2022). When converting to a ZF 8HP automatic transmission, the manual flywheel is replaced with a PMC Motorsport 8HP torque converter adapter plate.

What is included in the kit?

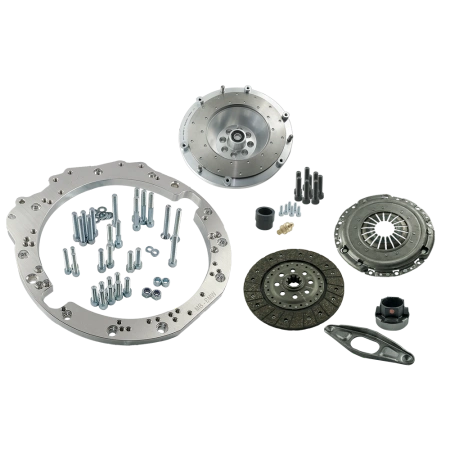

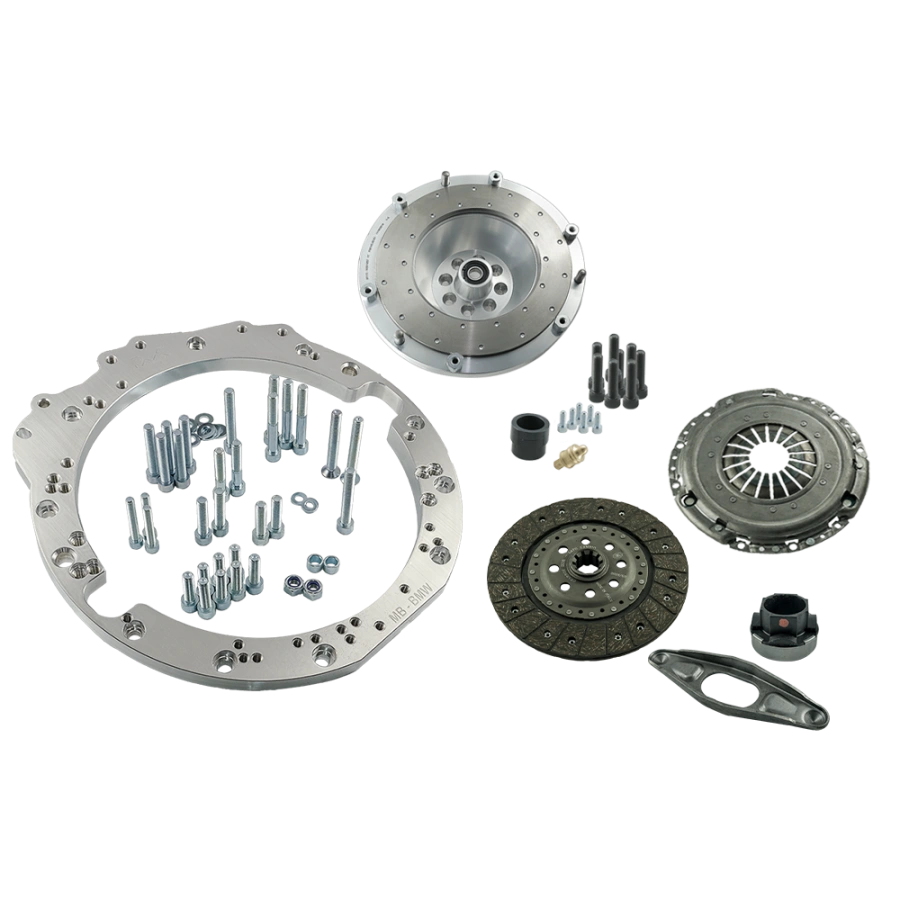

Aluminum gearbox adapter plate with mounting hardware, custom PMC Motorsport flywheel with replaceable friction surface, crankshaft bolts, pressure plate mounting bolts, flywheel centering sleeve, pivot pin / clutch fork bracket – BMW OE 21 51 1 223 328 replacement –, BMW 240 mm clutch pressure plate without self-adjustment, 240 mm 28x35-10N organic clutch disc, and clutch release module (release bearing with clutch fork). The clutch slave cylinder is not included.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every individual part of the kit is available separately – including the adapter plate paired with the custom flywheel, without the clutch assembly.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not cover import customs duties, tariffs, or local import taxes assessed by the destination country.

Can I place an order with 0% VAT?

Yes, if you are a registered B2B customer outside Poland holding an active EU VAT number (validated via the VIES system), or if your order is being exported outside the European Union.

Is the included installation manual sufficient to complete the conversion?

The manual details the mechanical mating of the engine and transmission outside the vehicle body. Depending on the vehicle platform, additional custom fabrication may be necessary: custom engine mounts, bushings, firewall adjustments, transmission tunnel modification, propshaft balancing and length alteration. Professional installation is highly recommended.

Please note that a lightweight single-mass flywheel provides razor-sharp throttle response at the expense of eliminating factory dual-mass damping elements. This yields a much more direct drivetrain connection, which may result in an audible increase in transmission gear chatter. This is a normal, inherent, and often desirable operational characteristic in competition and motorsport vehicles.
