PMC Motorsport Drift Stage 1 – clutch kit Mercedes-Benz M112 V6 / M113 V8 – BMW M50 M52 M54 ZF-5 ZF310 ZF320 Getrag S5D-250G 5-speed / Getrag 420G S50 6-speed manual – 240 mm / 9.45" – BMW 240 mm non-self-adjusting pressure plate – max. 650 Nm / 479 lb⋅ft

Important: before purchasing, check the part number of the automatic transmission flywheel (flexplate / ring gear) on your Mercedes-Benz engine. M112 / M113 engines come with two types of flywheels – this adapter fits only the Mercedes-Benz OE 112 032 02 47 flywheel.

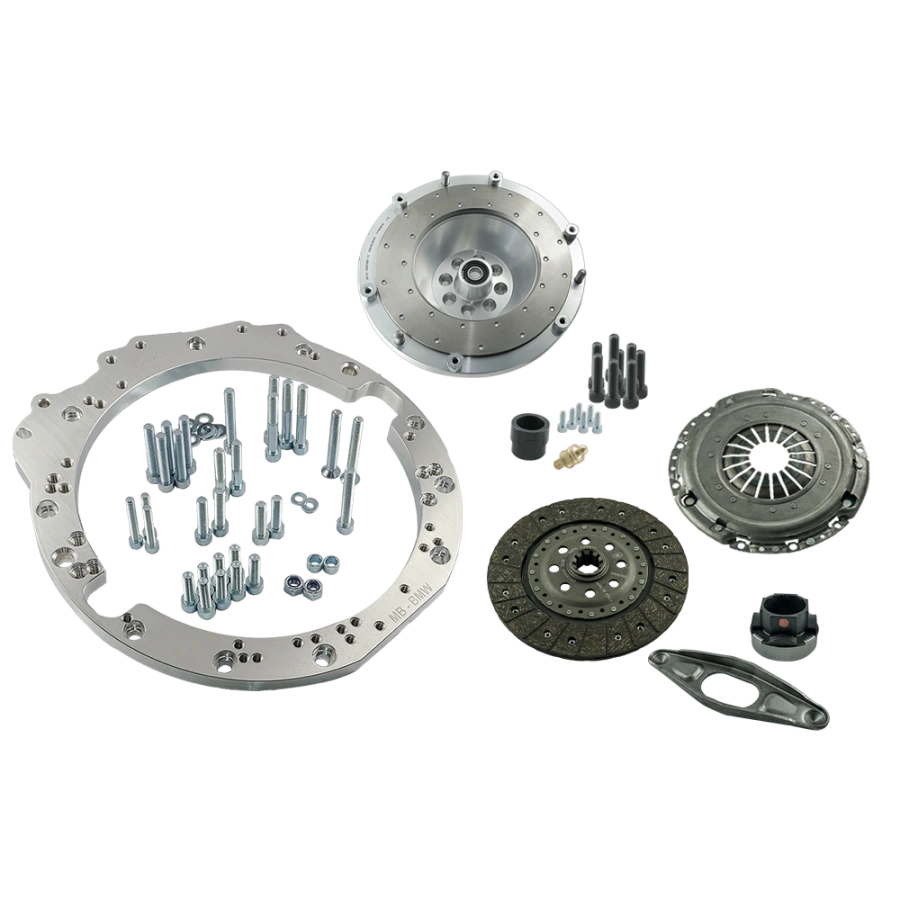

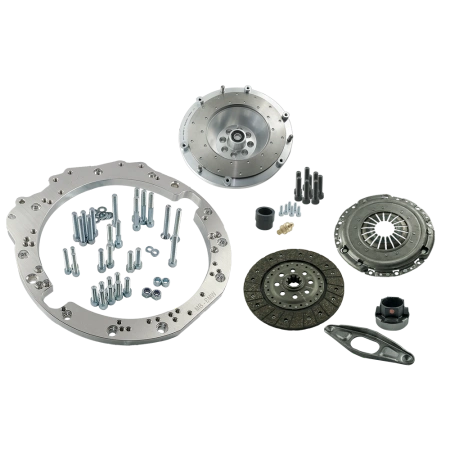

Complete Drift Stage 1 clutch kit enabling the connection (swap / conversion) of the Mercedes-Benz M112 V6 (2.4, 2.6, 2.8, 3.2, 3.7) or M113 V8 (4.3, 5.0, 5.4, and 5.4 Kompressor) engine with the ZF-5 (ZF S5D-310 / S5D-320) or Getrag S5D-250G 5-speed manual gearbox used in BMW vehicles with M50 / M52 / M54 / S50 / S52 engines, as well as the Getrag 420G 6-speed manual gearbox from the BMW E36 M3 (S50). The kit includes a gearbox adapter plate, custom PMC Motorsport flywheel, BMW 240 mm non-self-adjusting clutch pressure plate, Sachs 1864 098 132 organic clutch disc (23x29-10N), and a release bearing with clutch fork. The maximum torque capacity of the kit is 650 Nm (479 lb⋅ft). The non-self-adjusting pressure plate provides consistent, predictable clutch engagement characteristics, while the organic disc ensures smooth engagement, making the kit ideal for both drifting and daily driving.

Planning a Mercedes-Benz M112 / M113 engine swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and unlock new performance capabilities.

PMC Motorsport adapter plates not only provide automatic-to-manual transmission conversions in vehicles powered by the Mercedes-Benz M112 / M113 engine, but also facilitate M112 / M113 engine swaps into BMWs and other chassis, such as the Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Aluminum gearbox adapter plate engineered to simplify gearbox installation as much as possible, avoiding radical modifications such as cutting the entire bellhousing – only preparing an opening for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction face, inspected and balanced before dispatch. Flywheel designed for a 240 mm pressure plate (BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 OE). Flywheel weight: 5.45 kg (12.0 lbs), adapter thickness: 20 mm (0.78").

PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection with a coordinate measuring arm ensure a perfect fit. Production on state-of-the-art CNC machines guarantees ideal concentricity of the engine and gearbox, which is critical for drivetrain durability.

Additional information

Installation manual

Installing the flywheel requires the automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE 112 032 02 47 (not included). Crankshaft bolts are included in the kit.

To mount the adapter plate, use the original Mercedes-Benz M112 / M113 starter motor (OE, not included). Mount the included clutch fork on the lower release bearing position (in the case of a dual-position bearing). Petrol engine gearboxes (ZF-5, Getrag 250G / 420G) and diesel gearboxes (GS5-39DZ) share the same bolt pattern but feature different mounting angles on the adapter – ensure the ZF-5 / Getrag gearbox is bolted in the position designated for petrol transmissions. If the gearbox sits at the wrong angle after bolt tightening, correct the installation.

Mount the clutch fork on the lower release bearing position (in the case of a 2-position bearing).

On ZF-5 (ZF 310 / ZF 320) and Getrag 250 / 420G gearboxes, the two upper holes in the gearbox housing (bellhousing) must be slightly ground – this modification does not affect the concentricity and alignment of the engine and gearbox.

The release bearing and clutch fork are included in the kit. The clutch slave cylinder is not included in the kit – required clutch slave cylinder BMW OE 21 52 1 164 529 (Ø 23.81 mm).

Frequently Asked Questions

Which engines does this adapter plate fit?

Mercedes-Benz M112 V6 (2.4, 2.6, 2.8, 3.2, 3.2 Kompressor, 3.7) and M113 V8 (4.3, 5.0, 5.4, M113K 5.4 Kompressor) engines – working in conjunction with the automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE 112 032 02 47. These engines come with two flywheel types, so verify the part number on your engine before ordering.

Which gearboxes does the adapter plate fit?

5-speed manual ZF-5 (ZF S5D-310 / ZF 310 and ZF S5D-320 / ZF 320) and Getrag S5D-250G gearboxes from BMW models with M50 / M52 / M54 / S50 / S52 / S54 engines (e.g. E36 328i, E46 328i / 328Ci / 330i, E34 525i, E39 525i / 528i / 530i, Z3 2.8i / 3.0i), as well as the 6-speed Getrag 420G (TBAB, TAGU) from the BMW E36 M3 (S50). The flywheel does not fit the 6-speed BMW M54 gearbox (GS6-37BZ) nor the Getrag 420G from BMW V8 M60 / M62 engines.

Do I need to cut the gearbox bellhousing?

No. The adapter plate is designed to eliminate the need to cut the bellhousing – you only need to prepare a clearance notch/opening for the starter motor.

Does the ZF-5 / Getrag gearbox fit into all adapter holes?

The PMC Motorsport adapter plate is the most versatile adapter on the market, accommodating virtually every BMW gearbox. When designing it, we made certain compromises – on Getrag 250 / Getrag 420 / ZF 310 / ZF 320 / ZF-5 gearboxes, the two upper holes in the gearbox housing (bellhousing) must be slightly ground down. This modification does not affect the alignment and centering of the engine and gearbox.

What parts do I need to purchase separately for installation?

The automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE 112 032 02 47 and original Mercedes-Benz M112 / M113 (OE) starter motor. You will also need the clutch slave cylinder BMW OE 21 52 1 164 529 (Ø 23.81 mm). These parts are not included in the kit.

Which starter motor should be used?

The original Mercedes-Benz M112 / M113 (OE) starter motor. The starter motor is not included in the kit.

Which clutch is included in the kit?

A 240 mm (9.45") BMW clutch pressure plate without self-adjustment and a Sachs 1864 098 132 240 mm sprung organic clutch disc with a 23x29-10N spline (10 splines) for the ZF-5 / Getrag gearbox. The kit is complemented by a release bearing and clutch fork.

What torque can the Drift Stage 1 kit handle?

The maximum torque capacity of the kit is 650 Nm (479 lb⋅ft).

Can I use a different clutch?

Yes. The PMC Motorsport flywheel is designed for a 240 mm BMW OE type pressure plate – from BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3, Sachs XTend 3000 951 877 (BMW M57), or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also commonly used – any aftermarket pressure plate must fit the BMW OE flywheel pattern. For the ZF-5 gearbox, use a 240 mm clutch disc with a 23x29-10N spline.

Can I use this adapter plate with a 6-speed GS6-53DZ / GS6-53BZ gearbox?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW gearboxes (applies to adapters manufactured after 2022). If you switch to another gearbox model, you only need to replace the flywheel and clutch disc.

Does the adapter plate also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW transmissions (applies to adapters manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel is replaced with a PMC Motorsport 8HP torque converter adapter.

What does the kit include?

Aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport flywheel with replaceable friction surface, crankshaft bolts, pressure plate mounting bolts, clutch fork pivot pin – replacement for BMW OE 21 51 1 223 328 – BMW 240 mm clutch pressure plate without self-adjustment, Sachs 1864 098 132 (23x29-10N) organic clutch disc, and release bearing with clutch fork.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component of the kit is available separately – including the adapter plate with flywheel kit, without clutch.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include customs duties or additional import taxes that may be levied in the destination country.

Can I purchase with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT ID (verified in the VIES system) or if your order is shipped outside the EU.

Is the installation manual provided with the kit sufficient?

The manual describes mating the engine and gearbox outside the vehicle body. Depending on the car chassis, additional modifications may be required: mounts, bushings, firewall clearance, transmission tunnel shaping, driveshaft length adjustments. We recommend installation by professionals.

Please note that a lightweight single-mass flywheel provides uncompromising throttle response at the expense of eliminating factory damping elements. This results in more direct drivetrain operation, which may naturally increase gear rollover noise from transmission mechanisms. This is a normal, desired characteristic in motorsport vehicles resulting from the rigid mechanical connection between the engine and drivetrain.
