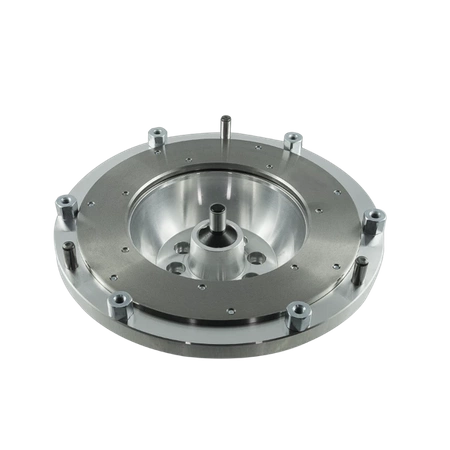

Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"

Flywheel Toyota JZ 1JZ 2JZ - BMW M57n GS6-53DZ HGU HGK - 240mm / 9.45"

  • Aluminum custom flywheel enabling connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non VVT-i versions) with a manual 6-speed ZF (ZF Friedrichshafen) GS6 gearbox from BMW
549,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

PMC Motorsport Custom flywheel Toyota JZ 1JZ 2JZ (GE GTE VVT-i and non VVT-i versions) - BMW M57n ZF GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel - SMF | 240mm / 9.45"

You want to connect the Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non VVT-i versions) with manual 6-speed ZF GS6-53DZ gearbox? Our gearbox adapter is the perfect solution for you. Custom flywheels dedicated to adapters PMC Motorsport made of aluminum with replaceable friction surface, checked and balanced before shipping. Flywheel designed for a 240mm pressure type (GS6-53DZ BMW OE).

PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.

Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.

Help in choosing and after-sales support - Support PMC Motorsport

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.

Single item purchase

Our offer includes every element of our set, which can be purchased separately.

Thousands of adapters produced and satisfied customers around the world.

The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.

From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.

We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.

NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.

VAT 0%

VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.

After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.

Matching engines: Matching gearboxes

Toyota JZ

Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version)

Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version)

ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed

ZF S6-53 GS6-53DZ HGU (THGU) BMW M57n2 E9x 330D 325D

ZF S6-53 GS6-53DZ HGK (THGK) BMW M57n2 E9x 330D 325D

ZF S6X53 GS6X53DZ HGW (THGW) BMW M57n2 E9x 330D xDrive

ZF S6X53 GS6X53DZ HGL (THGL) BMW M57n2 E9x 330D xDrive

Additional information

PMC Motorsport parts are designed for motorsport. For use on racetracks

Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.

The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.

Depending on your car, there may be additional modifications such as: adjustment of mounts, cushions and engine bulkhead, gearbox tunnel, drive shaft length, etc.

We make adapters from fully recyclable materials.

The flywheel requires the use of a PMC gearbox adapter. To install the flywheel, it is necessary to use the flywheel from the automatic version Toyota OE 32101-30090 | 32101-22050 and a washer between the engine block and the rim OE 4.5mm 32116-22020 (not included). The clutch lever is mounted in the lower position of the release bearing

instrukcja montażu koła zamachowego PMC Toyota JZ 1JZ 2JZ

instrukcja montażu koła zamachowego PMC Toyota JZ 1JZ 2JZ - BMW ZF GS6-53DZ 240mm

instrukcja montażu podpory łapy sprzęgła PMC w skrzyni biegów BMW

instrukcja pozycji łapy sprzęgła na łożysku oporowym

FAQ

  • Do I need an additional gearbox adapter for the PMC motorsport Toyota 1JZ 2JZ flywheel?

Yes,to install the flywheel you need to use the 20mm PMC motorsport F0BMW-JZ gearbox adapter

  • What starter should I use to install the PMC motorsport Toyota 1JZ 2JZ wheel?

Use a Toyota JZ starter (OE) without additional pinion cover, recommended Toyota Supra MKIV.

  • At what torque should the PMC motorsport Toyota 1JZ 2JZ flywheel be screwed in?

The flywheel must be tightened with torque 72Nm / 53.1ft·lb, using thread glue

  • Does the PMC flywheel need to be additionally balanced?

Each PMC motorsport flywheel is balanced before shipping (our tolerance is 4g), in the case of installing a custom clutch kit - we recommend additional checking.

Symbol
K0HGU-240-JZ
Producer code
5903707404254
Specification
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGU BMW E9x 325D 330D M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU

Bell housing: 1067 401 161 / 1067401161

Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
6-speed ZF GS6-53DZ HGK BMW E9x 325D 330D M57n2 More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK

Bell housing : 1067 401 161 / 1067401161

Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
6-speed ZF GS6X53DZ HGW BMW E9x 330xD M57n2 xDrive
6-speed ZF GS6X53DZ HGL BMW E9x 330xD M57n2 xDrive
Clutch information
Recommended clutch pressure plate
BMW OE 21 21 7 545 068 | 21217545068
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc diameter
Ø240mm / 9.45"
Clutch disc (Not included - OE part number)
BMW OE 21 20 7 583 172 | 21207583172 (GS6-53DZ / BZ)
Spline
32,5x35-26N (GS6-53DZ / BZ)
Spline Count
26
Required clutch release bearing (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027
Required clutch release fork (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027 (2-position)
Clutch Slave Cylinder required
BMW OE 21 52 6 775 924
BMW OE 21 52 6 785 964
BMW OE 21 52 1 158 903
BMW OE 21 52 6 766 277
Flywheel specification
Flywheel Type
SMF Rigid / Single-mass / Single-disc / Ø240mm / 9.45"
Flywheel weight PMC
5,45 kg / 12,01 lbs / 192,24 oz
Replaceable friction surface
Yes
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
72Nm 53,1ft·lb + Glue
Starter required (not included)
Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
Required gearbox adapter
Gearbox adapter thickness
20mm / 0.78"
PMC gearbox adapter code
F0BMW-JZ
ADDITIONAL INFORMATION
Set includes
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Custom Clutch fork pivot pin / Ball
Diameter of Friction Plate
240mm / 9.45"
