  • PMC Motorsport Lightweight custom aluminum flywheel Toyota JZ 1JZ 2JZ - BMW M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel / M57N E46 330D HGA 6-speed - 240mm / 9.45"
525,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

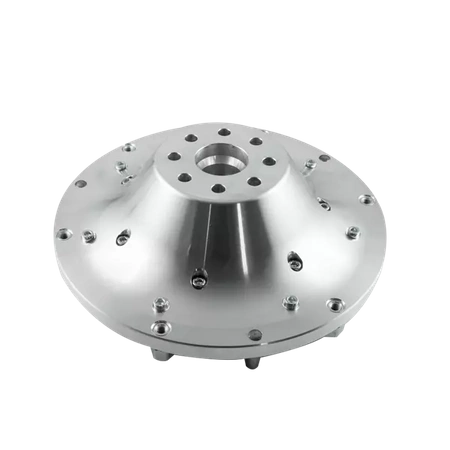

PMC Motorsport Lightweight custom aluminum flywheel Toyota JZ 1JZ 2JZ - BMW M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel / M57N E46 330D HGA 6-speed - 240mm / 9.45"



Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW ZF manual gearbox

Why BMW ZF / Getrag Gearboxes?

Availability and price. The availability of millions of produced vehicles worldwide ensures easy access to spare parts. Parts and complete gearboxes are readily available at authorized service centers and in the secondary market.

Durability and reliability. BMW ZF/Getrag gearboxes have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models exceeding 1000Nm) while ensuring great reliability. They are perfect for swaps in high-power projects intended for daily use.

Speed and convenience. Opting for the latest generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG provides ultra-fast gear shift times (0.2 seconds), enhancing both speed and convenience.



Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.



Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.

Made in EU. Our entire production and design department is located within the European Union.

Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.

Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.

0% VAT - for customers with active European VAT

Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.





Engine list:

  • Toyota JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ (non VVT-i / VVT-i version)

Manual BMW gearbox list (Diesel) :

  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-37DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) M47N M47N2 GS6-37DZ
  • BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed
    • BMW ZF (ZF Friedrichshafen) M57N E46 330D S6-53 GS6-53BZ HGA (THGA)
    • BMW ZF (ZF Friedrichshafen) M57N M57N2 E60 530D S6-53 GS6-53DZ HGD (THGD)
    • BMW ZF (ZF Friedrichshafen) M57N M57N2 E60 530D S6-53 GS6-53DZ JGA (TJGA)



Manual

You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).

The starter remains OE Toyota 1JZ 2JZ

Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.

The bearing and clutch release fork remain from the existing gearbox. If you have a bearing with two height positions, use the 28.5mm position.

Use a 240mm clutch disc that fits your gearbox.

Replace the original spherical pin (pivot pin) with the custom one from the kit.







Symbol
K0HGD-240-JZ
Producer code
5903707404261
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
BMW M57N ZF GS6-53DZ code HGA 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGA code HGA 6-speed

  • BMW Engine: M57N 306D2-EU4 / 306D2-EU3
  • BMW OE 23 00 7 531 346 / 23 00 7531346 / 23007531346
  • Bell housing: 1067 401 061 / 1067301061
  • Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 3-Series 3er E46

  • 330Cd M57N Cabrio ECE
  • 330Cd M57N Coupé ECE
  • 330Cd M57N Limousine ECE
  • 330Cd M57N Touring ECE
BMW M57N M57N2 ZF GS6-53DZ code HGD 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD 6-speed

  • BMW Engine: M57N 306D2-EU4 / 306D2-EU3  / M57N2 306D3
  • BMW OE: 23 00 7 526 820 / 23 00 7526820 / 23007526820
  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er E60 E61

  • E60 525d M57N M57N2
  • E60 530d M57N M57N2
  • E61 525d M57N M57N2
  • E61 530d M57N M57N2
BMW M57N M57N2 ZF GS6-53DZ code JGA 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA 6-speed

  • BMW Engine: M57N 306D2-EU4 / 306D2-EU3  / M57N2 306D3
  • BMW OE: 23 00 7 571 426 / 23 00 7571426 / 23007571426
  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er E60 E61 / LCI

  • E60 525d M57N M57N2
  • E60 530d M57N M57N2
  • E61 525d M57N M57N2
  • E61 530d M57N M57N2
BMW M47N M47N2 ZF GS6-37DZ 6-speedMore

BMW ZF (ZF Friedrichshafen S6-37) GS637DZ / GS6-37DZ - THES HES THED HED TJEM JEM TBEY BEY TBEO BEO 6-speed

  • BMW Engine: M47N (204D4-EU3 / 204D4-EU4) /  M47N2 204D4
  • BMW OE: 23 00 7 562 730 / 23 00 7562730 / 23 00 756273023 00 7 525 137 / 23 00 7525137 / 23007525137 /  23 00 7 565 194 / 23 00 7565194 / 23007565194 / 23 00 7 562 724 / 23 00 7562724 / 23007562724 / 23 00 7 545 386 / 23 00 7545386 / 23007545386
  • Bell housing: 1067 401 045 / 1067401045
  • Other numbers: 23 00 7553936 / 23007553936 / 23 00 7565193 / 23007565193 / 23 00 7553934 / 23007553934 / 23 00 7545385 / 23007545385

Ratio:

  • 1 -5.14
  • 2 - 2.83
  • 3 - 1.79
  • 4 - 1.26
  • 5 - 1.00
  • 6 - 0.83

BMW 1-Series 1er E87

  • 118d M47N2 5-door ECE
  • 120d M47N2 5-door ECE

BMW 3-Series 3er E46

  • 320Cd M47N Cabrio ECE
  • 320Cd M47N Coupé ECE
  • 320d M47N Limousine ECE
  • 320d M47N Touring ECE
  • 320td M47N Compact EC

BMW 3-Series 3er E90

  • 320d M47N2 Limousine IND
  • 320d M47N2 Limousine ECE

BMW 3-Series 3er E91

  • 320d M47N2 Touring ECE

BMW 5-Series 5er E60 / E60LCI

  • 520d M47N2 Limousine ECE
  • 520d M47N2 Limousine THA

BMW 5-Series 5er E61 / E61LCI

  • 520d M47N2 Touring ECE



Clutch Set
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
SACHS XTend 3000 951 952 (M57N M57N2)
SACHS PERFORMANCE 88 308 200 1243 / 883082.001243
Clutch disc
Dedicated to your gearbox - 240mm / 9.45"
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Flywheel weight
4.85 kg / 10.69 lbs
Tightening torque for flywheel bolts
72Nm + glue
Set includes
Custom Clutch fork pivot pin / Ball
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Material
Aluminium
Replaceable friction surface
Yes
Gearbox adapter required
F0BMW-JZ
Product sales codes included
K0HGD-240-JZ (966)
EAN
5903707404261
