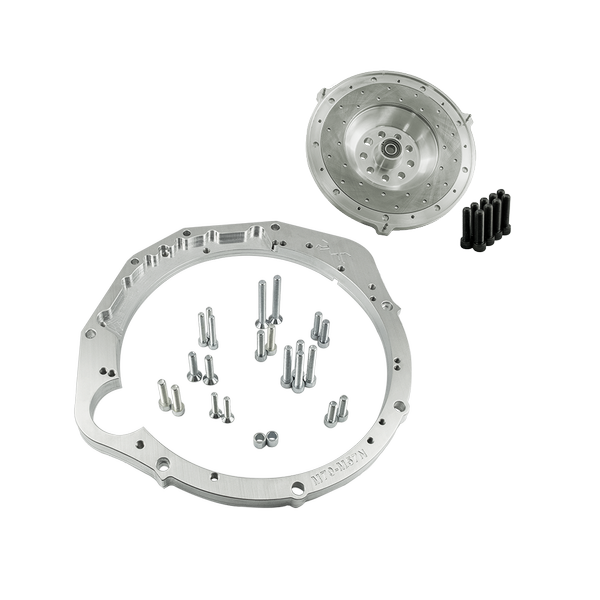

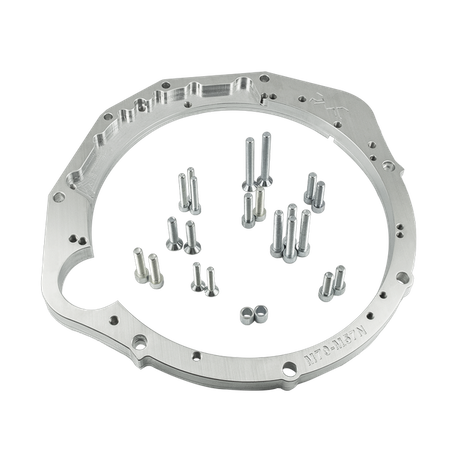

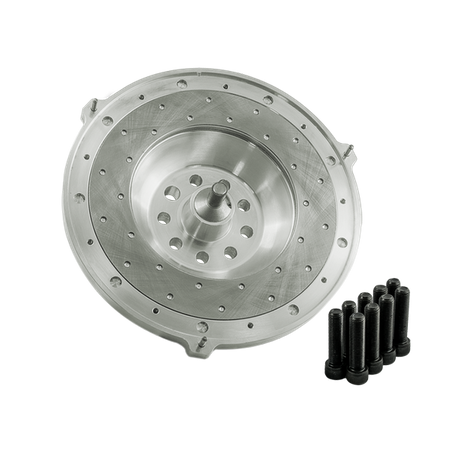

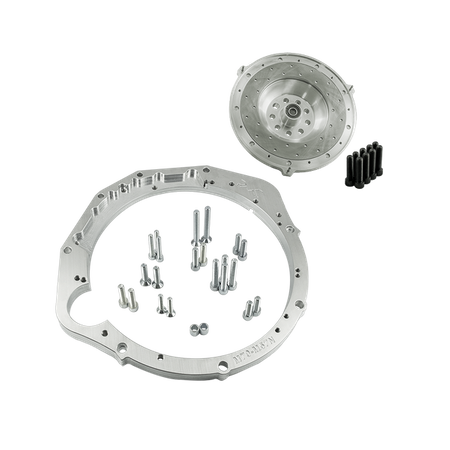

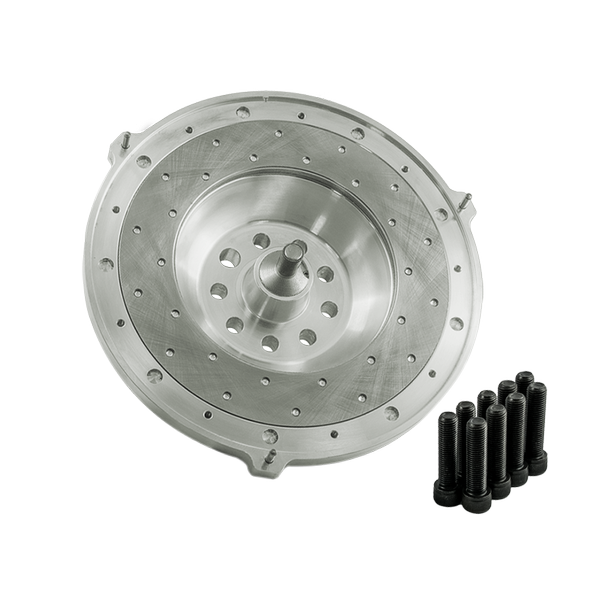

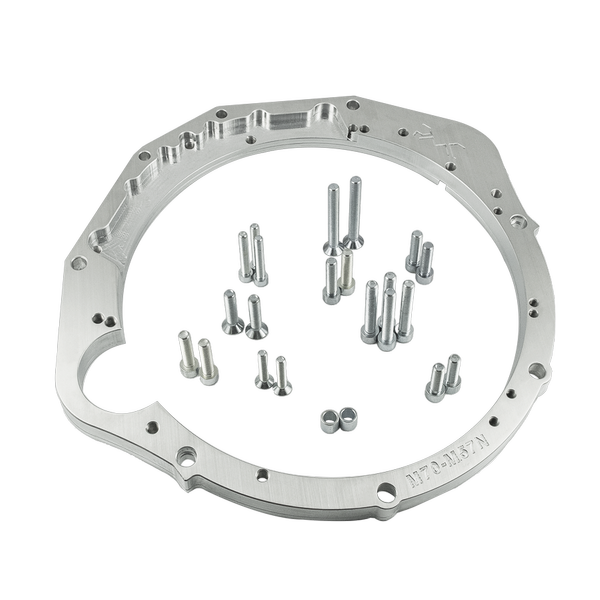

Adapter Kit BMW M70 - BMW M57N HGU HGK - 228mm / 8.98"
- PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
- BMW V12 M70 S70 M73 - BMW M57N M57N2 GS6-53DZ HGU HGK E90 325D 330D 6-Speed Diesel - 228mm / 8.98" (Twin Disc)
In a set
PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
BMW V12 M70 S70 M73 - BMW M57N M57N2 GS6-53DZ HGU HGK E90 325D 330D 6-Speed Diesel - 228mm / 8.98" (Twin Disc)
The adapter kit enables users connection of BMW V12 M70 S70 M73 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
BMW V12 M70 M70B50
BMW V12 M73 M73B54
BMW V12 M73 M73TUB54
For the M73 engine, the shaft position sensor must be moved to the front of the engine as in the BMW M70. The adapter fits the European version of the M70 engine. In the case of the M70 RHD engine, cut the adapter or change the starter to the European version and move it to the other side of the engine. |
Gearbox list: |
|
Manual
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Brand
Symbol
A-M70-HGU-228
Producer code
5903707411764
Engine
BMW V12 M70
BMW V12 M73
Gearbox
BMW M57N2 ZF GS6-53DZ HGU E90 330D 6-speed (DIESEL)
BMW M57N2 ZF GS6-53DZ HGK E90 330D 6-speed (DIESEL)
Clutch Set
Set with Clutch
No
Flywheel Type
Twin disc
Recommended clutch pressure plate
SACHS 300 951 019 BMW E60 M5 (Twin disc)
Clutch disc
Dedicated to your gearbox - 228mm / 8.98"
Clutch fork required
BMW OE 21 51 1 223 302
Release bearing required
BMW OE 21 51 7 848 830
Starter required (not included)
BMW M70 OE 21 51 1 223 302
BMW M70 OE 12 41 1 720 246
Flexplate / ring gear / Drive plate required
BMW M70 V12 OE 11 22 1 715 646
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Gearbox adapter thickness
25mm / 0.98"
Replaceable friction surface
Yes
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Product sales codes included
K0HGU-228-M6 (995)
F0M57-M7 (836)
