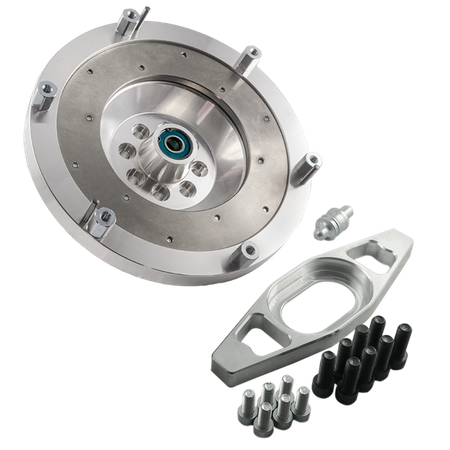

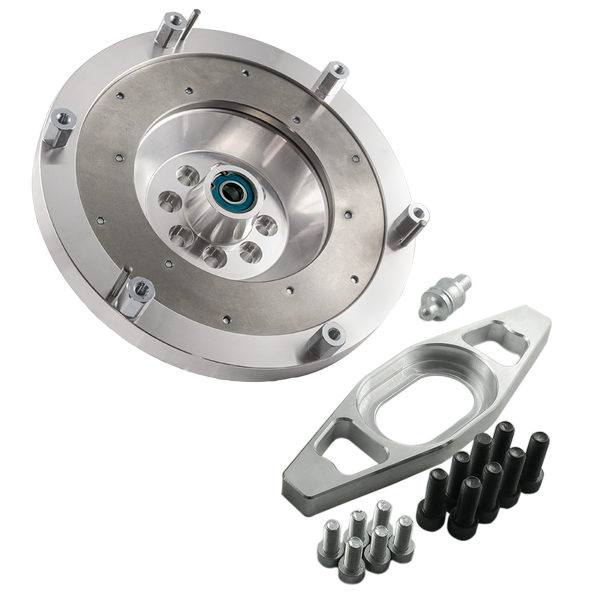

Flywheel Toyota JZ 1JZ 2JZ - BMW M57n ZF GS6-53DZ HGD JGA - 215mm / 8.46" Twin disc

Flywheel Toyota JZ 1JZ 2JZ - BMW M57n ZF GS6-53DZ HGD JGA - 215mm / 8.46" Twin disc

  • An aluminum custom flywheel that allows the connection (swap / conversion) of a Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non-VVT-i versions) with a manual ZF (ZF Friedrichshafen) / Getrag gearbox from BMW
575,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

PMC Motorsport Custom Flywheel Toyota JZ 1JZ 2JZ - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel - 215mm / 8.46" Twin disc

An aluminum custom flywheel that allows the connection (swap / conversion) of a Toyota JZ 1JZ 2JZ engine (GE GTE VVT-i and non-VVT-i versions) with a manual ZF (ZF Friedrichshafen) / Getrag gearbox from BMW

Balanced before shipping

Each of our flywheels is carefully checked and balanced before shipping

Clutch shaft pilot bearing

The bearing supports the clutch shaft and minimizes its vibrations.

Replaceable friction surface

The worn cast iron surface is easily removable and can be replaced with a brand new one, available in our offer

Why choose PMC Motorsport parts and adapters?

PMC motorsport logo

Professionalism

From design to implementation, our parts go through a long process. Each component for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems during use. For our production, we only use certified materials from proven suppliers. We have a modern CNC machine park and experienced employees.

Perfect coaxiality.

Our adapters guarantee a perfect fit between the engine and the gearbox.

motorsport drift parts gearbox adapters
PMC motorsport factory hall

Made in Poland

All of our production and design department are located in Poland.

Assistance with selection and after-sales support.

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during assembly, they will provide technical support. You can contact us via Facebook, Instagram and email: office@pmcmotorsport.com

Purchase of a single element

In our offer, we have every element of our kit, which can be purchased separately. If you need a replacement part, write to us: office@pmcmotorsport.com

Fast international shipping

We ship our products to virtually all countries worldwide. For countries in the European Union (excluding islands) and Great Britain, shipping is calculated automatically. For countries not on the list, our team will prepare a shipping calculation and add it to the order after the order has been placed.

0% VAT

0% VAT for customers with an active European VAT number (option for B2B customers outside of Poland).

shifter lever 8hp
quality of PMC Motorsport adapters

Experience

Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driven cars and professional projects intended for professional motorsport.

Quality confirmed by certificate

From the beginning, we have focused on the quality of the parts we manufacture. After each production stage, the component is controlled. Each component produced by us is engraved with a production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

Why choose gearboxes from BMW?

Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts, as well as complete gearboxes, are easily available at authorized service centers and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can transfer a very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for high-power SWAP projects intended for daily use.

Speed and convenience. When using new-generation automatic gearboxes like ZF 8HP or Getrag DCT DKG, we get an ultra-fast gear change action time (0.2 seconds).

Compatible Engines:

Toyota JZ

Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version)

Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version)

Compatible Gearboxes:

ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed

ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D

ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 E60 530D

ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 (xDrive)

ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57n M57n2 (xDrive)

Installation Instructions

installation instructions PMC flywheel Toyota JZ 1JZ 2JZ installation instructions PMC flywheel Toyota JZ 1JZ 2JZ - BMW ZF GS6-53DZ 215mm Twin Disc instruction shortening release bearing instruction shortening guide tube installation instructions for PMC clutch fork support in BMW gearbox

Also check out our ready-made kits in the complete conversion kits tab.

Symbol
K0HGD-215-JZ
Producer code
5903707414178
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGD BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD

  • Bell housing : 1067 401 060 / 1067401060
  • Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
6-speed ZF GS6X53DZ HGE BMW E60 530xD M57n M57n2 xDrive
6-speed ZF GS6-53DZ JGA BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA

  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
6-speed ZF GS6X53DZ JGB BMW E60 530xD M57n M57n2 xDrive
Clutch Set
Flywheel Type
Twin disc
Diameter of Friction Plate
215mm / 8.46"
Recommended clutch pressure plate
SACHS XTend 3000 950 709 / 3000.950.709-S BMW E9X V8 M3
Clutch disc
Dedicated to your gearbox - 215mm / 8.46"
Release bearing required
from the SACHS XTend 3000 950 709
Clutch fork required
Included
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE) without additional pinion cover
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Flywheel weight
5.40kg / 11.90lbs
Tightening torque for flywheel bolts
72Nm + glue
Set includes
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Custom Clutch fork pivot pin / Ball
Custom clutch fork
Material
Aluminium
Replaceable friction surface
Yes
Gearbox adapter required
F0BMW-JZ
Product sales codes included
K0HGD-215-JZ (3831)
EAN
5903707414178
