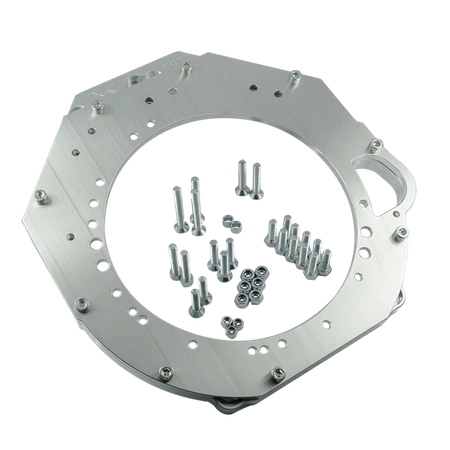

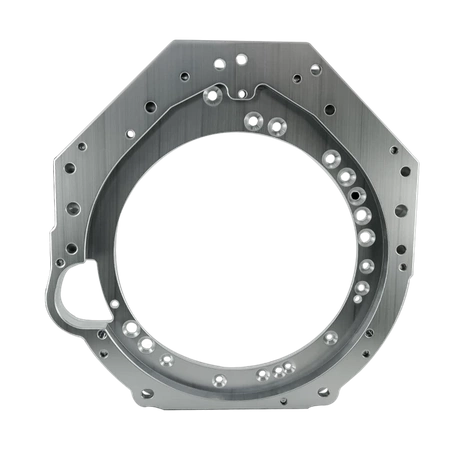

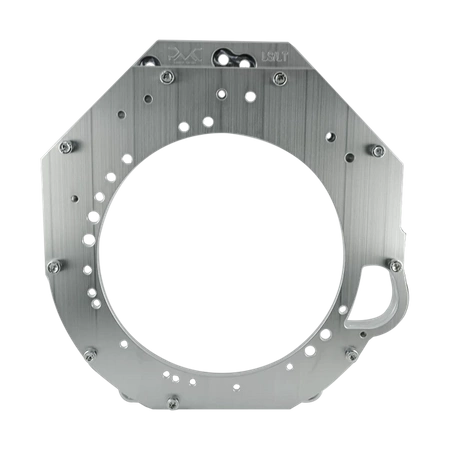

![Gearbox adapter GM Chevrolet LS - BMW ZF5 M50-M54 S50-S54 M47 M57 N52 [Manual]](/hpeciai/5ea1a371c4312b110e520a2757dde7fe/eng_pl_Gearbox-adapter-GM-Chevrolet-LS-BMW-ZF5-M50-M54-S50-S54-M47-M57-N52-Manual-4764_1.webp)

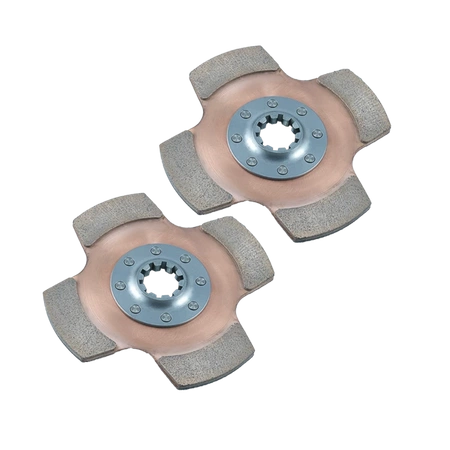

![Clutch Disc Pack Tilton 64185-8-VV-10 BMW M50 M52 M54 23x29-10N [184mm / 7.25"]](/hpeciai/43f9a6a9b4ca253b303f4270a555567b/eng_pl_Clutch-Disc-Pack-Tilton-64185-8-VV-10-BMW-M50-M52-M54-23x29-10N-184mm-7-25-3335_1.png)

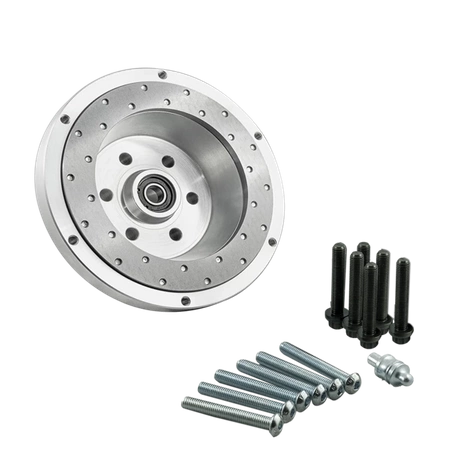

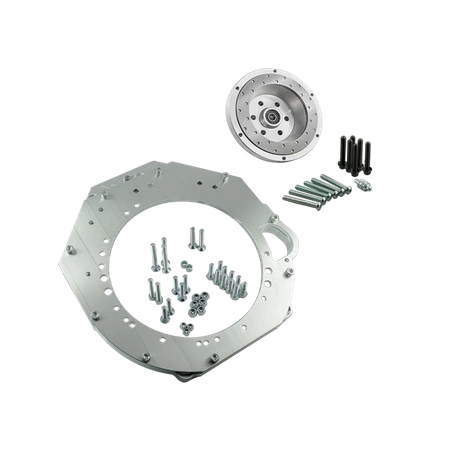

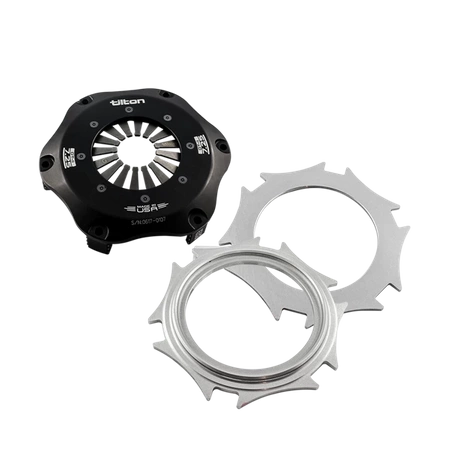

Race Stage 2 GM Chevrolet V8 LS 6-bolt - BMW M50 S50 M52 S52 M54 ZF-5 - 184mm / 7.25" (S)
- Race Stage 2 professional motorsport clutch kit GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW M50 M52 M54 ZF ZF310 ZF ZF320 ZF5 S5D-250 S50 S52 S54 5-speed / GETRAG 420G (R6 only) - 6-speed
In a set
![Gearbox adapter GM Chevrolet LS - BMW ZF5 M50-M54 S50-S54 M47 M57 N52 [Manual]](/hpeciai/d9a748dff941afb7d5c5d625bcb4c01c/eng_ps_Gearbox-adapter-GM-Chevrolet-LS-BMW-ZF5-M50-M54-S50-S54-M47-M57-N52-Manual-4764_1.webp)
![Clutch Disc Pack Tilton 64185-8-VV-10 BMW M50 M52 M54 23x29-10N [184mm / 7.25"]](/hpeciai/2f36e2104a01d1912d34dad5f4728dcc/eng_ps_Clutch-Disc-Pack-Tilton-64185-8-VV-10-BMW-M50-M52-M54-23x29-10N-184mm-7-25-3335_1.png)
PMC Motorsport Race Stage 2 professional motorsport clutch kit GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW M50 M52 M54 ZF ZF310 ZF ZF320 ZF5 S5D-250 S50 S52 S54 5-speed / GETRAG 420G (R6 only) - 6-speed - SMF | 184mm / 7.25" | STEP Type + 2x Tilton 64185-8-VV-10 sintered discs + Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302HGG
Are you looking for an uncompromising clutch kit for your GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec engine and 5-speed ZF5 or 6-speed GETRAG 420G transmission? Our gearbox adapter is the perfect solution for you. Aluminum gearbox adapter ensuring perfect alignment of the engine and gearbox and ultra-light aluminum custom flywheels with a replaceable friction surface. Flywheel designed for a STEP 7.25" pressure plate (Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 xxx Triple disc STEP / Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302 xxx Twin disc STEP).
PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.
Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.
Help in choosing and after-sales support - Support PMC Motorsport
The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.
Single item purchase
Our offer includes every element of our set, which can be purchased separately.
Thousands of adapters produced and satisfied customers around the world.
The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.
From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.
We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.
NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.
VAT 0%
VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.
After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.
| Matching engines: | Matching gearboxes |
|
GM Chevrolet V8 LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet V8 Vortec GM Small Block V8 Chevrolet Vortec 4800 LR4 GM Small Block V8 Chevrolet Vortec 5300 LM4 LM7 L33 L59 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) L76 L77 L96 LFA LQ4 LQ9 LZ1 LY6 GM Small Block V8 Chevrolet Vortec 6200 L92 L94 L9H |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G (inline engines only) 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 GETRAG 420 / 420G TBAI BMW S54 E46 M3 The wheel does not fit BMW M54 GS6-37BZ 6-speed / BMW M60 M62 GETRAG 420G |
Additional information
PMC Motorsport parts are designed for motorsport. For use on racetracks
Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.
Depending on your car, there may be additional modifications such as: adjustment of mounts, cushions and engine bulkhead, gearbox tunnel, drive shaft length, etc.
We make adapters from fully recyclable materials.
To install the flywheel, it is necessary to use the flywheel from the Chevrolet LS automatic version (not included). The clutch lever is mounted in the lower position of the release bearing
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
- BMW 5' E34 525i M50 ZF S5D 310Z - THDL / BMW OE 23 00 1 221 859 / 23 00 1221859
- BMW 5' E34 525i M50 ZF S5D 310Z - THDM / BMW OE 23 00 1 222 263 / 23 00 1222263
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDH / BMW OE 23 00 1 222 180 / 23 00 1222180
- BMW 5' E34 525ix M50 ZF S5D 310Z - THDO / BMW OE 23 00 1 222 268 / 23 00 1222268
- BMW 3' E36 323i 325i 328i M50 M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 323i 328i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 Z3 2.8 M52 M 3.2 S50 S52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 3' E36 Z3 2.8 3.0 M52 M54 M 3.2 S50 S52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 328i 328Ci 330i 330Ci M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E46 325xi 330xi M54 (xDrive) ZF S5D 320Z - THCG / BMW OE 23 00 7 502 658 / 23 00 7502658
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 983 / 23 00 1222983
- BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 5' E39 523i 528i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 5' E39 523i 528i 530i M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 7' E38 728i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
- BMW 7' E38 728i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
- BMW 7' E38 728i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
- BMW 3' E36 320i 323i 325i 323ti 325is M50 M52 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E36 Z3 2.0 2.2 2.2i 2.5 2.5i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E46 320i 320Ci 323i 323Ci 325i 325Ci 325ti M52 M54 M56 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKG MT5 / BMW OE 23 00 1 222 069 / 23 00 1222069
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKZ MT5 / BMW OE 23 00 1 221 837 / 23 00 1221837
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKT MT5 / BMW OE 23 00 1 222 400 / 23 00 1222400
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKS MT5 / BMW OE 23 00 1 222 404 / 23 00 1222404
- BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 5' E39 520i 523i 525i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TAGU MT6 / BMW OE 23 00 1 222 700 / 23 00 1222700
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TBAB MT6 / BMW OE 23 00 1 434 507 / 23 00 1434507
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TBAC MT6 / BMW OE 23 00 2 228 312 / 23 00 2228312
- BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TAGX MT6 / BMW OE 23 00 2 228 817 / 23 00 2 228 817
