Complete Drift Stage 1 clutch kit enabling the mating (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE / GTE / FSE, VVT-i and non VVT-i versions) with the ZF GS6-37BZ 6-speed manual transmission used in BMW petrol M54 models (E46 325ti / 330i / 330Ci, E60 / E61 520i / 525i / 530i), as well as its GS6X37BZ xDrive variant (E46 330xi, X3 E83 2.5i / 3.0i, X5 E53 3.0i). The kit includes a gearbox adapter plate, custom PMC Motorsport flywheel, non self-adjusting BMW 240 mm clutch pressure plate, 240 mm organic clutch disc with 26.5x29-22N spline for the GS6-37BZ gearbox, and a two-position release bearing with a custom clutch release fork. Maximum torque capacity is 650 Nm (479 lb⋅ft). The non self-adjusting pressure plate provides a consistent and predictable clutch feel – the perfect solution for drifting.
Planning a Toyota JZ 1JZ 2JZ swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Swap your automatic transmission for a BMW manual gearbox and unlock new possibilities.
PMC Motorsport adapter plates are not only for automatic-to-manual conversions in cars with Toyota JZ 1JZ 2JZ engines, but also support JZ engine swaps into BMW and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
Aluminum gearbox adapter plate designed to simplify transmission installation as much as possible, avoiding radical modifications like cutting off the entire gearbox bellhousing – only preparing a hole for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction plate, tested and balanced before shipping. Flywheel designed for 240 mm pressure plates (BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 OE style). The kit includes a two-position release bearing, custom clutch release fork, and pivot ball / fork support pin. Flywheel weight: 4.85 kg (10.7 lbs), thickness of universal adapter F0BMW-JZ: 20 mm (0.78").
PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal alignment (concentricity) of engine and transmission, which is critical for drivetrain longevity.

Our entire production and R&D department are located in Poland. Over 90% of components are manufactured in-house by our company.
The PMC Motorsport team will help you choose the right kit. And if you have any questions during installation, we offer technical support. You can reach us via our contact form.
We offer every single component of our kit available separately.

Thousands of manufactured adapter plates and satisfied customers worldwide.
PMC Motorsport adapters are used in daily drivers as well as professional motorsport builds.
From the beginning, we focus on the quality of our parts. After each production stage, components are quality controlled. Every component we produce is engraved with a production serial number.
Quality confirmed by PN-EN ISO 9001:2015 certification.

We ship our products to virtually every country in the world. EU countries (excluding islands) and the UK have shipping calculated automatically. For countries not on the list, after placing an order, our team will calculate shipping costs and add them to your order. You will receive an email with the updated total.
NOTE: The provided shipping quote together with the product price does not include customs duties / extra fees that may apply depending on the destination country.
0% VAT for customers with an active EU VAT number (option for B2B customers outside Poland) and for exports outside the EU.
Upon successful verification in the VIES system, we will modify the order to remove the charged VAT.
| Matching engines: | Toyota JZ Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i) Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i) |
| Matching gearboxes: |
ZF S6-37 GS6-37BZ 6-speed ZF GS6-37BZ TBEZ – BMW M54 E46 325ti 330i 330Ci, E60 / E61 520i 525i 530i ZF GS6-37BZ THEB – BMW M54 E46 330i ZF GS6-37BZ THEG – BMW M54 E46 325ti 330i 330Ci, E60 / E61 520i 525i 530i ZF S6X37 GS6X37BZ 6-speed (xDrive) ZF GS6X37BZ THEH / THEW – BMW M54 E46 330xi ZF GS6X37BZ THET / THEC – BMW M54 X3 E83 2.5i 3.0i ZF GS6X37BZ THEE / THEX – BMW M54 X5 E53 3.0i |

PMC Motorsport parts are intended for motorsport and track use.
Parts are intended for installation by professionals with experience in engine swaps and automotive modifications – in specialized workshops using appropriate tools.

The adapter installation manual provides only essential instructions for physically mating the engine and gearbox outside the vehicle.
Depending on the specific vehicle model, additional modifications may be required, such as adjusting engine mounts, bushings, firewall clearance, transmission tunnel, driveshaft length, etc.

We manufacture our adapters from 100% recyclable materials.
For flywheel installation, it is required to use the automatic flexplate / starter ring gear Toyota OE 32101-30090 or 32101-22050 and a 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-22020 (not included). Torque the flywheel to the crankshaft using the supplied bolts to 72 Nm (53.1 lb⋅ft) with threadlocker. Mount the clutch fork from the kit in the upper release bearing position. Installation of the GS6-37BZ transmission to the adapter plate is carried out in the same way as for the ZF-5 (M50 / M52 / M54) transmission – according to the graphics below. For adapter installation, use a Toyota JZ starter motor without a nose cone / pinion shield – see details in the FAQ section. On the GS6-37BZ gearbox, two upper mounting holes on the bellhousing need to be slightly trimmed/ground – this modification does not affect engine and transmission alignment. Clutch slave cylinder is not included – required BMW OE slave cylinder 21 52 1 164 529 (Ø 23.81 mm).





For Toyota JZ family engines: 1JZ (1JZ-FSE, 1JZ-GE, 1JZ-GTE) and 2JZ (2JZ-FSE, 2JZ-GE, 2JZ-GTE), both VVT-i and non VVT-i versions.
For 6-speed manual ZF GS6-37BZ from BMW with M54 engine (E46 325ti / 330i / 330Ci, E60 / E61 520i / 525i / 530i) in TBEZ, THEB, and THEG versions and for xDrive GS6X37BZ versions (E46 330xi, X3 E83, X5 E53).
No. The adapter is designed to avoid cutting the bellhousing – you only need to prepare an opening for the starter motor.
Automatic Toyota 1JZ / 2JZ flexplate / ring gear, OE 32101-30090 or 32101-22050, and one 4.5 mm spacer washer between engine block and flexplate, Toyota OE 32116-22020. You also need a clutch slave cylinder BMW OE 21 52 1 164 529 (Ø 23.81 mm) and a Toyota JZ starter motor (see question below). These parts are not included in the kit.
BMW 240 mm (9.45") non self-adjusting clutch pressure plate, 240 mm sprung organic clutch disc with 26.5x29-22N spline (22 teeth) dedicated to the ZF GS6-37BZ gearbox, two-position release bearing, and custom clutch release fork.
The maximum torque rating for the kit is 650 Nm (479 lb⋅ft).
The PMC Motorsport adapter plate is the most versatile adapter on the market, supporting virtually every BMW gearbox. In designing it, we made certain compromises – on the GS6-37BZ transmission, similar to the ZF-5, two upper holes on the gearbox bellhousing need to be slightly ground/trimmed. This modification does not affect engine and transmission concentric alignment.
Yes. The PMC Motorsport flywheel is designed for 240 mm BMW OE style pressure plates – from BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also commonly used – custom pressure plates must fit BMW OE flywheels (M57 / M57N / M57N2 / N54 / B58). A 240 mm clutch disc with 26.5x29-22N spline must be used for the GS6-37BZ gearbox.
Toyota JZ starter motor without a nose cone / pinion shield. Installation method depends on the adapter version:
a) adapters produced up to 2022 – starter is installed identically to original equipment (OE);
b) adapters produced from 2022 to 2025 – one of the starter mounting holes in the engine block must be reamed to a diameter of ∅12.9–13.2 mm (0.507"–0.520") to a depth of 22 mm (0.866"), then use the bushing from kit AN 335-M10 and bolt it with an ISO 4762-M10x35 bolt;
c) adapters manufactured from January 2025 – enlarge the lower mounting hole in the starter motor to a diameter of ∅12–13 mm and thread the engine block to M12x1.5.
Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW gearboxes (applies to adapter plates manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with a PMC Motorsport 8HP torque converter adapter.

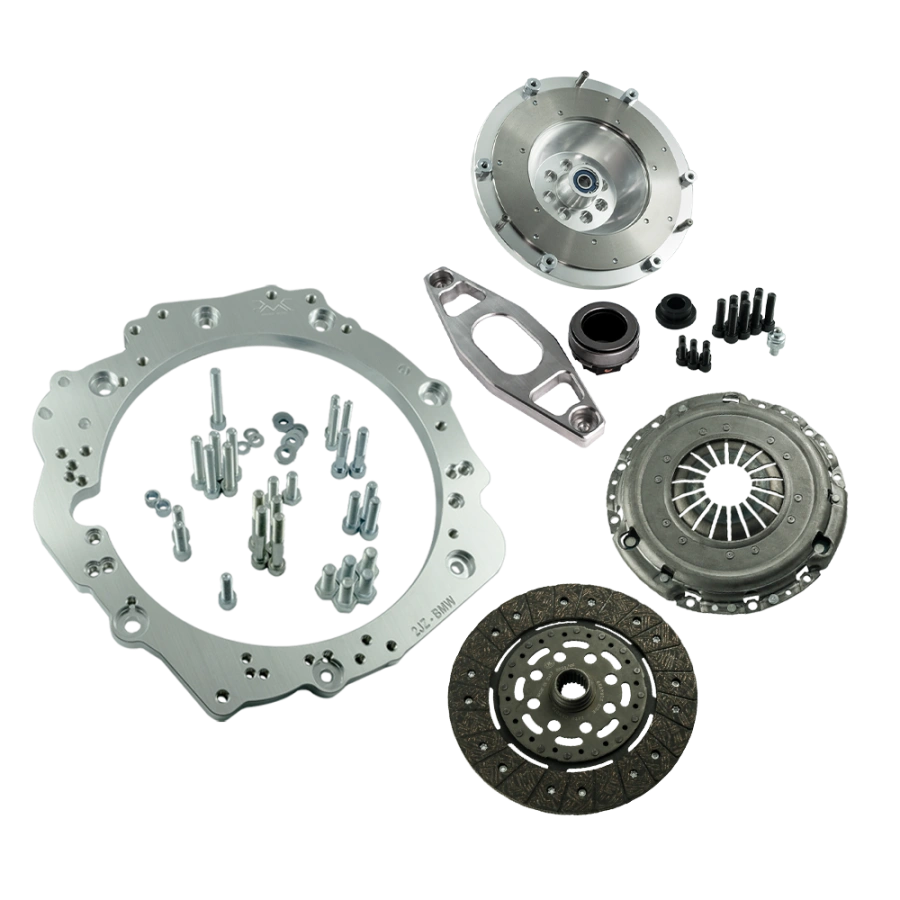

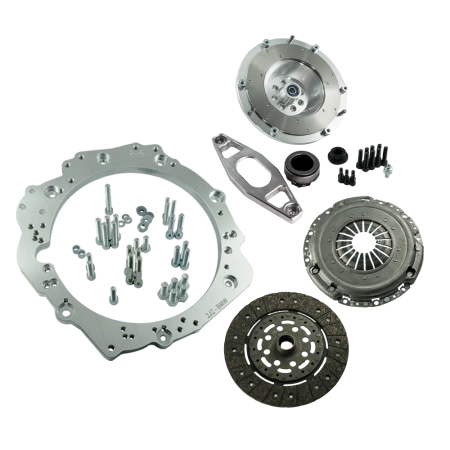

Universal aluminum PMC F0BMW-JZ gearbox adapter plate (20 mm) with mounting bolts and dowel pins, custom PMC Motorsport flywheel with replaceable friction surface (4.85 kg / 10.7 lbs), crankshaft bolts, pressure plate bolts, flywheel centering bushing, pivot ball / release fork pin, two-position release bearing, custom clutch release fork, non self-adjusting BMW 240 mm clutch pressure plate, and 240 mm 26.5x29-22N organic clutch disc.
Yes. Every PMC Motorsport flywheel is balanced before shipping (tolerance 4 g). In case of installing a custom clutch setup, we recommend additional balance checking.
Yes. Every item in the kit is available separately – including just the adapter plate with flywheel, without clutch kit.
No. The product price and shipping quote do not include customs duties or additional fees that may apply in the recipient's country.
Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified in the VIES system) or ordering with shipment outside the EU.
The manual covers mating the engine and transmission outside the vehicle body. Depending on the car model, additional modifications may be required: engine mounts, bushings, firewall clearance, transmission tunnel, driveshaft length. We recommend professional installation.
It is worth noting that a lightweight single-mass flywheel provides an uncompromising throttle response at the cost of eliminating factory damping components. This results in a more direct drivetrain operation, which may lead to a natural increase in gear noise from the transmission. This is a desired characteristic in sports vehicles resulting from the rigid connection between engine and drivetrain
