PMC Motorsport Race Stage 1+ – clutch kit Mercedes-Benz M113 M113K V8 – BMW M57 ZF GS5-39DZ E39 525d 530d / E46 330d 5-speed manual – 240 mm / 9.45" – Sachs Performance 883082.001243 – max. 800 Nm / 590 lb⋅ft

Important: before purchasing, check the part number of the automatic transmission flywheel (flexplate / ring gear) on your Mercedes-Benz engine. M113 engines come with two types of flywheels – this adapter fits only the Mercedes-Benz OE A2730300312 flywheel.

Complete Race Stage 1+ clutch kit enabling the connection (swap / conversion) of the Mercedes-Benz M113 / M113K V8 engine (4.3, 5.0, 5.4, and 5.4 Kompressor) with the ZF GS5-39DZ 5-speed manual gearbox used in BMW vehicles with the M57 diesel engine (E39 525d / 530d, E46 330d). The kit includes a gearbox adapter plate, custom PMC Motorsport flywheel, heavy-duty Sachs Performance 883082.001243 clutch pressure plate (non-self-adjusting), PMC 240 mm sintered clutch disc with 28x35-10N spline, as well as a clutch release module (release bearing with clutch fork) and clutch slave cylinder – a complete kit ready for installation. The maximum torque capacity of the kit is 800 Nm (590 lb⋅ft). The heavy-duty GS5-39DZ gearbox (1000 Nm+) combined with the Race Stage 1+ kit is designed for motorsport – drifting, track use, and high-power builds.

Planning a Mercedes-Benz M113 engine swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and unlock new performance capabilities.

PMC Motorsport adapter plates not only provide automatic-to-manual transmission conversions in vehicles powered by the Mercedes-Benz M113 engine, but also facilitate M113 engine swaps into BMWs and other chassis, such as the Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Aluminum gearbox adapter plate engineered to simplify gearbox installation as much as possible, avoiding radical modifications such as cutting the entire bellhousing – only preparing an opening for the starter motor is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction face, inspected and balanced before dispatch. Flywheel designed for a 240 mm pressure plate (GS5-39DZ / GS6-53DZ / BZ BMW OE). Flywheel weight: 5.45 kg (12.0 lbs), adapter thickness: 20 mm (0.78").

PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection with a coordinate measuring arm ensure a perfect fit. Production on state-of-the-art CNC machines guarantees ideal concentricity of the engine and gearbox, which is critical for drivetrain durability.

Additional information

Installation manual

Installing the flywheel requires the automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE A2730300312 (not included). Crankshaft bolts are included in the kit. To mount the adapter plate, use the original Mercedes-Benz M113 / M113K starter motor (OE, not included). Mount the included clutch fork on the lower release bearing position (in the case of a dual-position bearing). Petrol engine gearboxes (ZF-5, Getrag 250G / 420G) and diesel gearboxes (GS5-39DZ) share the same bolt pattern but feature different mounting angles on the adapter – ensure the GS5-39DZ gearbox is bolted in the position designated for diesel transmissions. If the gearbox sits at the wrong angle after bolt tightening, correct the installation. The release bearing, clutch fork, and clutch slave cylinder are included in the kit.

Frequently Asked Questions

Which engines does this kit fit?

Mercedes-Benz M113 V8 engines: 4.3, 5.0, 5.4, and M113K 5.4 Kompressor – working in conjunction with the automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE A2730300312. M113 engines come with two flywheel types, so verify the part number on your engine before ordering.

Which gearboxes does the kit fit?

The 5-speed manual ZF GS5-39DZ gearbox from BMW M57 diesel models in THBA, THBC, THBG, THBK, and THBM variants (E39 525d / 530d, E46 330d). The gearbox input shaft has a 28x35-10N spline.

Do I need to cut the gearbox bellhousing?

No. The adapter plate is designed to eliminate the need to cut the bellhousing – you only need to prepare a clearance notch/opening for the starter motor.

What parts do I need to purchase separately for installation?

Installation requires the automatic transmission flywheel (flexplate / ring gear) Mercedes-Benz OE A2730300312 and the original Mercedes-Benz M113 / M113K starter motor (see question below). These parts are not included in the kit.

Which clutch is included in the kit?

A heavy-duty Sachs Performance 883082.001243 (88 308 200 1243) pressure plate with a diameter of 240 mm (9.45"), non-self-adjusting, and a PMC 240 mm sintered clutch disc with 28x35-10N spline (10 splines) for the ZF GS5-39DZ gearbox. The kit is complemented by a clutch release module (release bearing with clutch fork) and a clutch slave cylinder.

What torque can the Race Stage 1+ kit handle?

The maximum torque capacity of the kit is 800 Nm (590 lb⋅ft).

Is the kit suitable for daily driving?

The Race Stage 1+ kit with a sintered clutch disc is primarily designed for motorsport – the clutch operates firmer and engages more aggressively than an organic disc. For a vehicle used primarily as a daily driver, we recommend the Stage 1 kit with the Sachs XTend clutch.

Can I use a different clutch?

Yes. The PMC Motorsport flywheel is designed for a 240 mm BMW OE type pressure plate – from BMW M57 / M57N / M57N2 / N54 / B58 / E46 M3 or Sachs Performance 883082.001243. ACT / Spec / Tanaci clutches are also commonly used – any aftermarket pressure plate must fit the BMW OE flywheel pattern (M57 / M57N / M57N2 / N54 / B58). For the GS5-39DZ gearbox, use a 240 mm clutch disc with a 28x35-10N spline.

Which starter motor should be used?

The original Mercedes-Benz M113 / M113K (OE) starter motor. The starter motor is not included in the kit.

Can I use this adapter plate with a 6-speed GS6-53DZ / GS6-53BZ gearbox?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW gearboxes (applies to adapters manufactured after 2022). If you switch to another gearbox model, you only need to replace the flywheel and clutch disc.

Does the adapter plate also fit the ZF 8HP automatic transmission?

Yes. The PMC Motorsport adapter plate itself is universal and fits most BMW transmissions (applies to adapters manufactured after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel is replaced with a PMC Motorsport 8HP torque converter adapter.

What does the kit include?

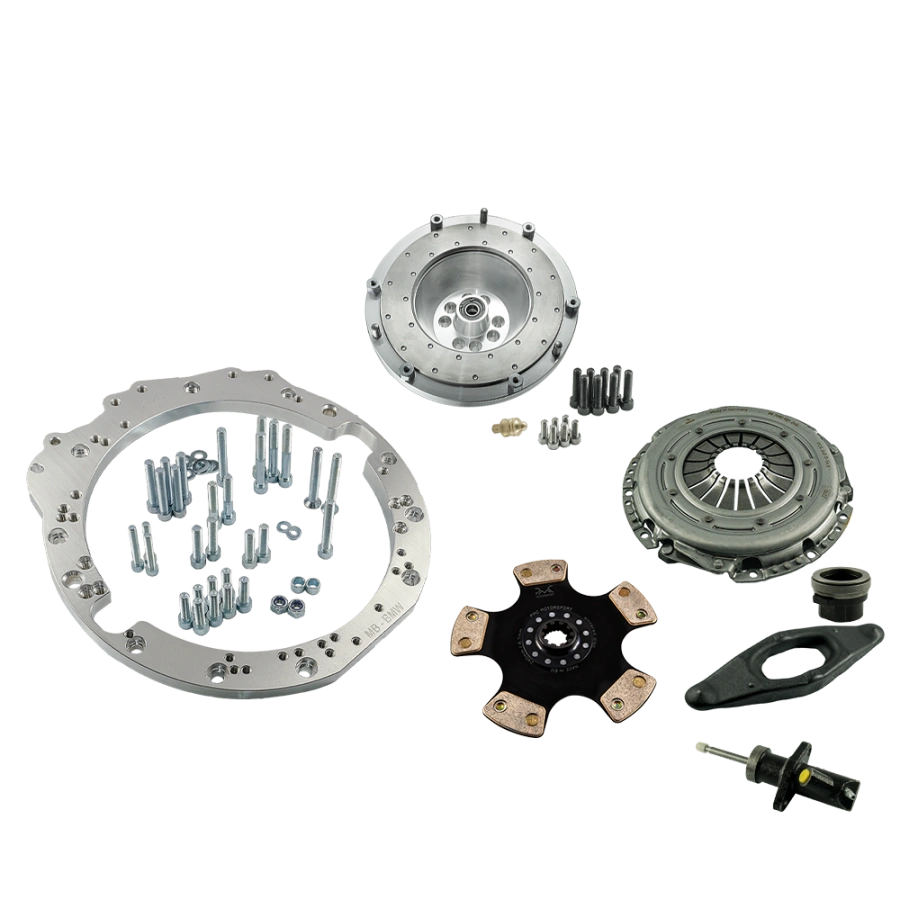

Aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport flywheel with replaceable friction surface, crankshaft bolts, pressure plate mounting bolts, flywheel centering bushing, clutch fork pivot pin – replacement for BMW OE 21 51 1 223 328 – Sachs Performance 883082.001243 clutch pressure plate, PMC 240 mm 28x35-10N sintered clutch disc, clutch release module (release bearing with clutch fork), and clutch slave cylinder.

How does Race Stage 1+ differ from Race Stage 1?

Both kits share the same adapter plate, flywheel, Sachs Performance pressure plate, and sintered clutch disc (max. 800 Nm). Race Stage 1+ additionally includes the clutch release module with clutch fork and the clutch slave cylinder, so you don't need to select and purchase them separately.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component of the kit is available separately – including the adapter plate with flywheel kit, without clutch.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include customs duties or additional import taxes that may be levied in the destination country.

Can I purchase with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT ID (verified in the VIES system) or if your order is shipped outside the EU.

Is the installation manual provided with the kit sufficient?

The manual describes mating the engine and gearbox outside the vehicle body. Depending on the car chassis, additional modifications may be required: mounts, bushings, firewall clearance, transmission tunnel shaping, driveshaft length adjustments. We recommend installation by professionals.

Please note that a lightweight single-mass flywheel provides uncompromising throttle response at the expense of eliminating factory damping elements. This results in more direct drivetrain operation, which may naturally increase gear rollover noise from transmission mechanisms. This is a normal, desired characteristic in motorsport vehicles resulting from the rigid mechanical connection between the engine and drivetrain.
