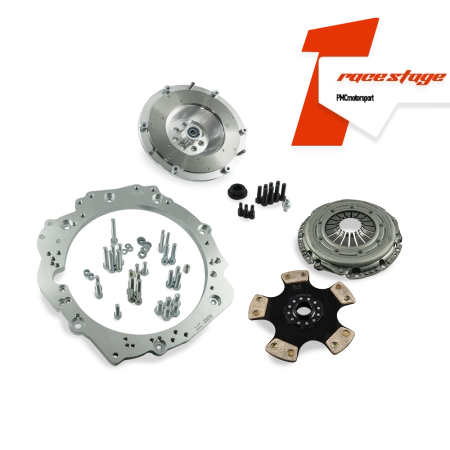

Race Stage 1 Toyota JZ - manual 6-speed BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45"
Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP
Flywheel Toyota JZ - BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45"
Sachs Performance 88 308 200 1243 / 883082001243
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]

Race Stage 1 Toyota JZ - manual 6-speed BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45"

  • PMC Motorsport Race Stage 1 clutch kit Toyota JZ 1JZ 2JZ - BMW E60 E61 530D M57n ZF GS6-53DZ HGD JGA / BMW E46 330D M57N ZF GS6-53DZ HGA - 240mm / 9.45"+ Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft

1 428,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP
Gearbox Adapter Plate Toyota JZ - BMW Manual / automatic DCT 8HP (1 pcs.)
349,00 EUR / pcs.
Flywheel Toyota JZ - BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45"
Flywheel Toyota JZ - BMW M57n GS6-53DZ HGD JGA HGA - 240mm / 9.45" (1 pcs.)
525,00 EUR / pcs.
Sachs Performance 88 308 200 1243 / 883082001243
Sachs Performance 88 308 200 1243 / 883082001243 (1 pcs.)
399,00 EUR / pcs.
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]
High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"] (1 pcs.)
155,00 EUR / pcs.

PMC Motorsport Race Stage 1

PMC Motorsport Race Stage 1 adapter / Adaptor kit / swap kit / conversion kit / clutch kit Toyota JZ 1JZ 2JZ - BMW E60 E61 530D M57n ZF GS6-53DZ HGD JGA 6-speed / BMW E46 330D M57N ZF GS6-53DZ HGA 6-speed - 240mm / 9.45"+ Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9 lb/ft

An adapter allowing the connection (swap / conversion) of a Toyota JZ 1JZ 2JZ with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.

Planning to do a Toyota JZ 1JZ 2JZ SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a BMW manual transmission and gain new possibilities. PMC Motorsport adapters are not only for transmission swaps in Toyota JZ 1JZ 2JZ engines but also provide support for executing JZ swaps in BMWs and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Balanced before shipping

Each of our flywheels is thoroughly inspected and balanced before shipping.

Clutch shaft pilot bearing

The bearing supports the clutch shaft and minimizes its vibrations.

Replaceable friction surface

The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer.

Why choose PMC Motorsport parts and adapters?

Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport competitions.

Professionalism. From design to implementation, our parts go through a long process. Every element for which we produce parts is measured by a measuring arm and 3D scanner. The prototype undergoes numerous tests to eliminate any possible issues during use. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced employees.

Quality. From the very beginning, we prioritize the quality of the parts we produce. After each stage of production, the element is inspected. Every component we produce is engraved with a production serial number. We confirm our quality with the ISO PN-EN ISO 9001:2015 certificate.

Perfect coaxiality. Our adapters guarantee perfect fitting of the engine and transmission.

Made in EU. All our production and design teams are located in the European Union.

Single item purchase. In our offer, we have each element of our kit available for individual purchase. If you need a spare part, contact us at: office@pmcmotorsport.com

Fast international shipping. We ship our products to all countries worldwide. For European Union countries (excluding islands) and the United Kingdom, shipping prices are calculated automatically. For countries not on the list, our team will send a shipping quote after purchase.

VAT 0% for customers with active European VAT (option for B2B customers outside Poland).

Assistance in selection and after-sales support. The PMC Motorsport team will help you choose the right kit for you. If you have any doubts during installation, we offer technical support. You can contact us via Facebook, Instagram, or email: office@pmcmotorsport.com



Compatible engines:

Toyota JZ

Toyota 1JZ (non VVT-i / VVT-i version)

Toyota 2JZ (non VVT-i / VVT-i version)

Compatible transmissions:

BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed

BMW M57n E46 330D ZF S6-53 GS6-53DZ HGA (THGA)

BMW M57n (xDrive) ZF S6X53 GS6X53DZ HGB (THGB)

BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD)

BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA)

BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ HGE (THGE)

BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB)

Why choose BMW transmissions?

Availability and price. Millions of cars produced and their availability worldwide ensure the availability of spare parts. Parts, as well as complete transmissions, are easily accessible through authorized service centers and the aftermarket.

Durability and reliability. BMW ZF / Getrag transmissions have been successfully used in both amateur and professional motorsports for many years. They can handle very high torque (some models over 1000Nm) while ensuring high reliability. They are perfect for swaps in high-power projects intended for daily use.

Speed and convenience. When using new generation automatic transmissions like ZF 8HP or Getrag DCT DKG, we gain ultra-fast shifting times (0.2 seconds).



ZF Friedrichshafen S6-53DZ

ZF Friedrichshafen GS6-53DZ 6-speed manual transmission (S6-53DZ), due to its high durability (1000Nm+) and low price, is the ideal solution for cars prepared for motorsport.

Male spline type: 32.5x35-26N

ZF GS6-53DZ Gear Ratios

1 2 3 4 5 6 R
5.080 2.804 1.260 1.270 1.000 0.835 4.607



ZF GS6-53DZ HGA THGA



ZF GS6-53DZ HGD THGD



ZF GS6-53DZ JGA TJGA



Installation Instructions

!!! PMC Motorsport parts are intended for motorsports and use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops designed for this purpose !!!

The flywheel is made of aluminum and cast iron and is fully recyclable.

! The custom flywheel requires the use of a ring gear / flywheel from the automatic Toyota JZ– not included in the kit!

instrukcja montażu adapter PMC

instrukcja montażu adapter skrzyni biegów PMC Toyota JZ 1JZ 2JZ -  BMW M57

instrukcja montażu adapter skrzyni biegów PMC Toyota JZ 1JZ 2JZ -  BMW M57N HGD HGU JGA HGK

instrukcja montażu koła zamachowego PMC Toyota JZ 1JZ 2JZ

instrukcja montażu koła zamachowego PMC Toyota JZ 1JZ 2JZ - BMW ZF GS6-53DZ 240mm

instrukcja montażu podpory łapy sprzęgła PMC w skrzyni biegów BMW

instrukcja pozycji łapy sprzęgła na łożysku oporowym

instrukcja montażu tarczy sprzęgła PMC

!!! For orders from the US, please place your order on our distribution website www.drifthq.com !!!

Symbol
RS1-JZ-HGD-SP
Producer code
5903707410606
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Diesel)
BMW M57n ZF GS6-53DZ HGA 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGA code HGA 6-speed




  • BMW Engine : M57N 306D2-EU4 / 306D2-EU3
  • BMW OE : 23 00 7 531 346 / 23 00 7531346 / 23007531346
  • Bell housing : 1067 401 061 / 1067301061
  • Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202



ZF GS6-53DZ Gear Ratios

1 2 3 4 5 6 R
5.080 2.804 1.260 1.270 1.000 0.835 4.607



BMW 3- Series 3er E46

  • BMW 330Cd M57N Cabrio ECE
  • BMW 330Cd M57N Coupé ECE
  • BMW 330Cd M57N Limousine ECE
  • BMW 330Cd M57N Touring ECE
BMW M57n (xDrive) ZF GS6X53DZ HGB 6-speed
BMW M57n M57n2 ZF GS6-53DZ HGD 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD 6-speed




  • BMW Engine : M57N 306D2-EU4 / 306D2-EU3  / M57N2 306D3
  • BMW OE : 23 00 7 526 820 / 23 00 7526820 / 23007526820
  • Bell housing : 1067 401 060 / 1067401060
  • Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205



ZF GS6-53DZ Gear Ratios

1 2 3 4 5 6 R
5.080 2.804 1.260 1.270 1.000 0.835 4.607



BMW 5-Series 5er E60 E61

  • BMW E60 525d M57N M57N2
  • BMW E60 530d M57N M57N2
  • BMW E61 525d M57N M57N2
  • BMW E61 530d M57N M57N2
BMW M57n M57n2 (xDrive) ZF GS6X53DZ HGE 6-speed
BMW M57n M57n2 ZF GS6-53DZ JGA 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA 6-speed




  • BMW Engine: M57N 306D2-EU4 / 306D2-EU3  / M57N2 306D3
  • BMW OE: 23 00 7 571 426 / 23 00 7571426 / 23007571426
  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218



ZF GS6-53DZ Gear Ratios

1 2 3 4 5 6 R
5.080 2.804 1.260 1.270 1.000 0.835 4.607



BMW 5-Series 5er E60 E61 LCI

  • BMW E60 525d M57N M57N2
  • BMW E60 530d M57N M57N2
  • BMW E61 525d M57N M57N2
  • BMW E61 530d M57N M57N2
BMW M57n M57n2 (xDrive) ZF GS6X53DZ JGB 6-speed
Clutch Set
Set with Clutch
Yes
Max torque
800Nm / 589,9 lb/ft
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Clutch Set included
Sachs Performance 88 308 200 1243 / 883082.001243
Self-adjusting
No
Clutch disc
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Drift
Gearbox adapter thickness
20mm / 0.78"
Tighten the flywheel to the specified torque [Nm / lb⋅ft ]
72Nm 53,1ft·lb + Glue
Flywheel weight
5.1 kg / 11.24lbs
Replaceable friction surface
Yes
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Custom Clutch fork pivot pin / Ball
Sachs Performance 88 308 200 1243 / 883082.001243
Sintered clutch disc 32,5x35-26N [240mm / 9.45"]
Product sales codes included
F0BMW-JZ (4735)
K0HGD-240-JZ (4758)
240-32,5X35-26N (4759)
SACHS 243 (1694)
EAN
5903707410606
Product code
RS1-JZ-HGD-SP
