PMC Motorsport adapter plate / conversion kit / clutch kit Toyota JZ 1JZ 2JZ – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA E60 525d 530d / HGA E46 330d – 240 mm / 9.45" – 5.1 kg / 11.2 lbs
Adapter plate enabling the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine with the manual 6-speed ZF GS6-53DZ HGD / JGA / HGA gearbox used in BMW with the M57N / M57N2 diesel engine (E60 525d / 530d, E46 330d), as well as its GS6X53DZ HGB / HGE / JGB xDrive variant. An ideal solution for amateur and professional motorsport.
Are you planning an engine swap of the Toyota JZ 1JZ 2JZ into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Swap the automatic transmission for a BMW manual gearbox and unlock new possibilities.
PMC Motorsport adapters are not only for converting automatic transmissions to manuals in vehicles with the Toyota JZ 1JZ 2JZ engine, but also provide support for completing a JZ swap in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
The aluminum gearbox adapter plate is designed to simplify gearbox installation as much as possible, avoiding radical steps like cutting off the entire bellhousing – only preparing the starter motor clearance is required. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable steel friction surface, inspected and balanced before shipment. Flywheel designed for a 240 mm (GS5-39DZ / GS6-53DZ / BZ BMW OE) pressure plate. Flywheel weight: 5.1 kg (11.2 lbs), adapter thickness: 20 mm (0.78").
PMC Motorsport gearbox adapters are synonymous with precision and top quality. A design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal engine-gearbox concentricity, which is crucial for powertrain durability.
Our entire production and R&D department are located in Poland. Over 90% of components are manufactured in-house.
Help with selection and after-sales support – PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit, and provide technical support in case of any doubts during installation. You can contact us via the contact form.
Purchase of individual components
Our offer includes every element of our kit, which can be purchased separately.
Thousands of produced adapters and satisfied customers all over the world.
PMC Motorsport adapters are used in both daily drivers and professional motorsport projects.
From the beginning, we focus on the quality of the parts we manufacture. After each production stage, the component is inspected. Every part produced by us is engraved with a production serial number.
We confirm quality with the PN-EN ISO 9001:2015 certificate.
We ship our products to virtually all countries worldwide. European Union countries (excluding islands) and the United Kingdom have shipping calculated automatically. For countries not on the list, after placing an order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the total order cost.
NOTE: The provided shipping quote together with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers holding an active European VAT number (B2B option outside Poland) and in the case of exports outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Matching engines: |
Toyota JZ
Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i)
Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i)
|
| Matching gearboxes: |
ZF S6-53 GS6-53DZ 6-speed
ZF S6-53 GS6-53DZ HGA (THGA) BMW M57N E46 330d
ZF S6X53 GS6X53DZ HGB (THGB) BMW M57N xDrive
ZF S6-53 GS6-53DZ HGD (THGD) BMW M57N / M57N2 E60 525d 530d
ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57N / M57N2 E60 525d 530d
ZF S6X53 GS6X53DZ HGE (THGE) BMW M57N / M57N2 xDrive
ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57N / M57N2 xDrive
|
Additional information
PMC Motorsport parts are intended for motorsport and race track use.
Parts intended for installation by professionals with knowledge in engine swaps and vehicle modifications – in workshops and using properly adapted tools.
The adapter installation manual contains only basic knowledge necessary to physically connect the engine with the gearbox outside the car body.
Depending on your specific car, additional modifications may occur, such as: adjusting mounts, engine/gearbox mounts, firewall, transmission tunnel, driveshaft length, etc.
We manufacture our adapters using fully recyclable materials.
Installation instructions
For flywheel installation, it is necessary to use the automatic transmission starter ring gear (flexplate) Toyota OE 32101-30090 or 32101-22050 and a 4.5 mm spacer between the engine block and flexplate, Toyota OE 32116-22020 (not included in the kit). Bolt the flywheel to the crankshaft using the included bolts tightened to 72 Nm (53.1 lb⋅ft) with threadlocker. Install the clutch release fork on the lower release bearing position (for a 2-position bearing). A Toyota JZ starter motor without an additional pinion cover must be used for mounting – details in the FAQ section.
Frequently Asked Questions
Which engines does this adapter fit?
For Toyota JZ family engines: 1JZ (1JZ-FSE, 1JZ-GE, 1JZ-GTE) and 2JZ (2JZ-FSE, 2JZ-GE, 2JZ-GTE), in VVT-i and non VVT-i versions.
Which gearboxes fit the adapter?
For the 6-speed manual ZF GS6-53DZ gearbox from BMW with M57N / M57N2 diesel engine in HGD (THGD) and JGA (TJGA) versions – E60 525d / 530d – and HGA (THGA) – E46 330d, as well as the xDrive ZF GS6X53DZ gearbox versions: HGB (THGB), HGE (THGE), and JGB (TJGB).
Do I need to cut the gearbox bellhousing?
No. The adapter was designed to avoid cutting the bellhousing – you only need to prepare the clearance hole for the starter motor.
Which additional parts do I need to buy for installation?
Automatic transmission starter ring gear (flexplate) Toyota 1JZ / 2JZ, OE 32101-30090 or 32101-22050, and one 4.5 mm spacer between the engine block and flexplate, Toyota OE 32116-22020. These are not included in the kit.
Which clutch pressure plate fits the PMC flywheel?
A 240 mm (9.45") BMW OE type clutch pressure plate – from BMW M57 / M57N / M57N2 (including stock GS6-53DZ pressure plate) / N54 / B58 / E46 M3 or Sachs Performance 883082.001243, as well as Sachs XTend 3000 951 952 (M57N / M57N2) and Sachs XTend 3000 951 949 (N54 / N55). ACT / Spec / Tanaci clutches are also often used – a non-standard pressure plate must fit under the BMW OE (M57 / M57N / M57N2 / N54 / B58) flywheel pattern. A clutch disc with the appropriate spline, dedicated release bearing set, and slave cylinder must be used for your specific gearbox.
Which starter motor should be used?
Toyota JZ starter motor without an additional pinion cover. The mounting method depends on the adapter version:
a) adapters produced up to 2022 – starter motor installs identically to the original equipment (OE);
b) adapters produced from 2022 to 2025 – one of the starter mounting holes in the engine block must be drilled out to ∅12.9–13.2 mm (0.507"–0.520") to a depth of 22 mm (0.866"), then use the sleeve from the AN 335-M10 kit and bolt with ISO 4762-M10x35 bolt;
c) adapters manufactured from January 2025 – the lower mounting hole in the starter motor must be enlarged to ∅12–13 mm diameter and the engine block tapped to M12x1.5.
Does the adapter also fit the ZF 8HP automatic transmission?
Yes. The PMC Motorsport gearbox adapter plate itself is universal and fits most BMW gearboxes (applies to adapters produced after 2022). When converting to a ZF 8HP automatic transmission, the standard flywheel must be replaced with a PMC Motorsport 8HP torque converter adapter.

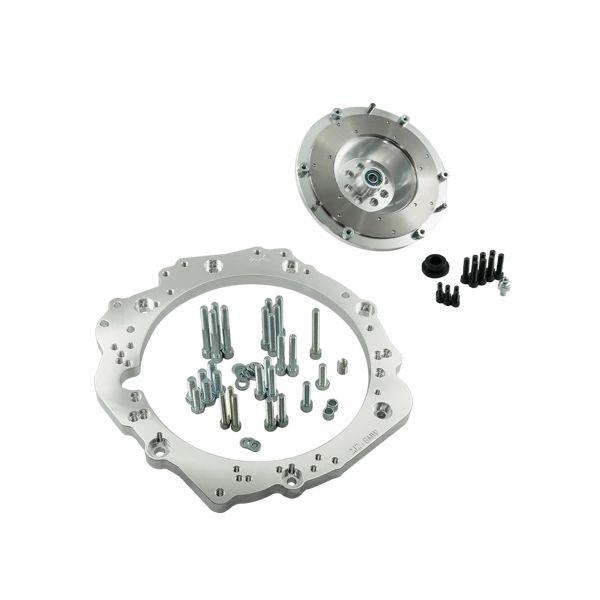

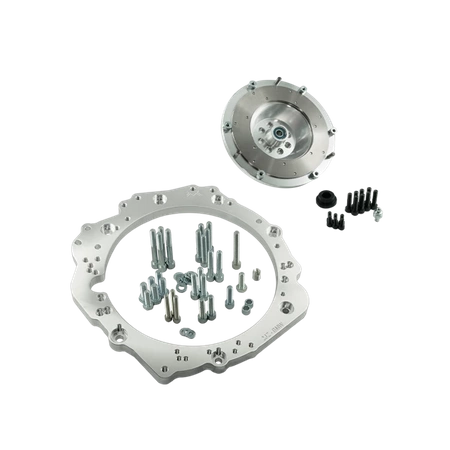

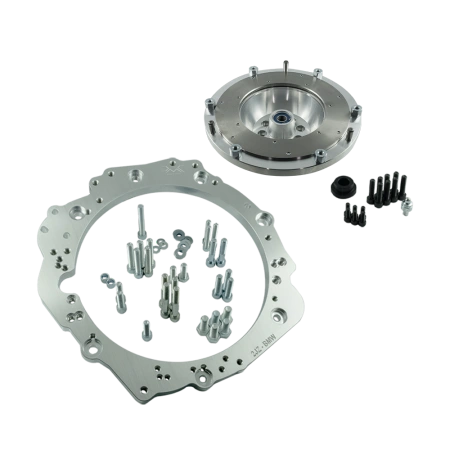

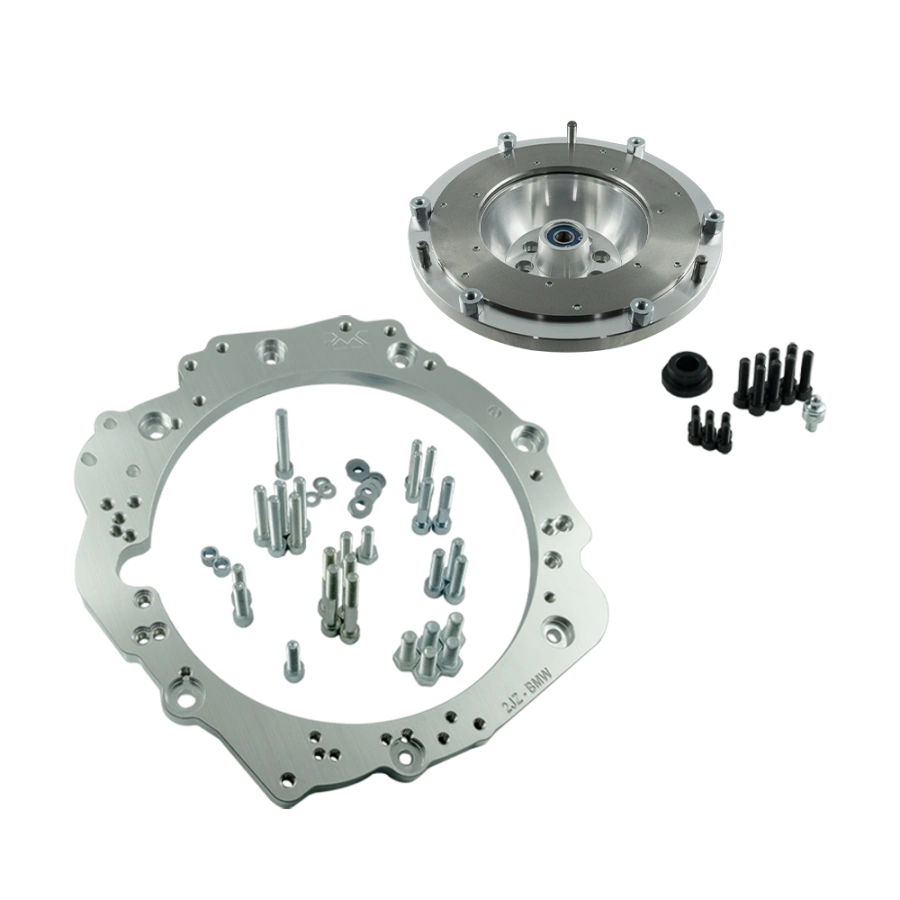

What is included in the kit?
Aluminum gearbox adapter plate with mounting bolts, PMC Motorsport custom flywheel with replaceable steel friction surface (5.1 kg / 11.2 lbs), crankshaft bolts, clutch pressure plate mounting bolts, and a ball pin – BMW OE 21 51 1 223 328 replacement. Clutch, release bearing, clutch release fork, and slave cylinder are not included in the kit – they must be selected for your specific gearbox.
Can I buy only the adapter or only the flywheel?
Yes. Every component of the kit is available separately.
Does the price include customs duty for shipments outside the European Union?
No. The product price and shipping estimate do not include customs duties or additional fees that may apply in the recipient's country.
Can I buy with 0% VAT?
Yes, if you are a B2B customer outside Poland with an active EU VAT number (verification in the VIES system) or ordering with shipping outside the EU.
Are the included instructions sufficient for installation?
The instructions describe connecting the engine to the gearbox outside the car body. Depending on the vehicle, additional modifications may be required: mounts, bushings, firewall, gearbox tunnel, driveshaft length. We recommend installation by professionals.
It is worth remembering that a lightweight rigid flywheel provides uncompromising throttle response at the expense of eliminating factory damping elements. This translates into a more direct drivetrain operation, which may result in a natural increase in the audibility of gearbox mechanisms. This is a desirable characteristic in sports vehicles, resulting from a rigid connection between the engine and the drive.
